1786-CTK - EtherNet/IP DLR Redundancy - Industrial Rugged Hot-Swap Network Coupler
Products
Contact Us
|
1786-CTK - EtherNet/IP DLR Redundancy - Industrial Rugged Hot-Swap Network Coupler
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Detail Information
Place of Origin
America
Brand Name
Allen Bradley
Certification
3C
Model Number
1786-CTK
Manufacturer:
Allen Bradley
Package:
Original
Communication Port:
Ethernet/IP
Enclosure Type:
Open- IP20
Power Supply:
24V DC
Compatibility:
Compatible With Other Allen Bradley Modules
Number Of Outputs:
32
Frame Size:
Frame A
Highlight:
industrial allen bradley module
,industrial allen bradley plc
,Standard allen bradley module
Product Description
1786-CTK - EtherNet/IP DLR Redundancy - Industrial Rugged Hot-Swap Network Coupler
| Manufacturer | Allen Bradley |
|---|---|
| Package | Original |
| Communication Port | Ethernet/IP |
| Enclosure Type | Open- IP20 |
| Power Supply | 24V DC |
| Compatibility | Compatible with other Allen Bradley modules |
| Number Of Outputs | 32 |
| Frame Size | Frame A |
Product Overview

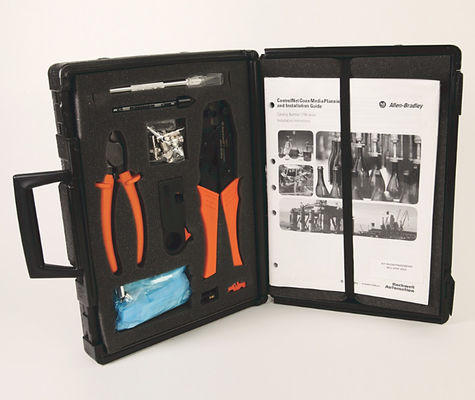

The Allen-Bradley 1786-CTK ControlNet™ Termination Kit ensures signal integrity and network reliability in industrial automation environments. Designed specifically for ControlNet™ coaxial cable (RG-6/U), this kit provides precision termination tools to minimize signal reflections and data errors. It includes gold-plated BNC connectors, crimp tools, and impedance-matching terminators compliant with IEC 61158 standards.
Critical Technical Specifications
- Connector Type: BNC 75 Ω with gold-plated center contacts (≤20mΩ resistance)
- Cable Compatibility: RG-6/U (7.0mm ±0.3mm OD), RG-6/U QS (twinaxial)
- Termination Resistance: 75 Ω ±1% with 1500V AC isolation
- Tool Durability: 5,000+ crimp cycles, hardened steel jaws (HRC 60)
- Certifications: UL 486A, RoHS III, EN 50173 (EMC)
Targeted Applications
- Factory Automation: ControlNet™ trunk/drop terminations for motor control centers
- Energy Distribution: Substation RTU networks requiring <1μs signal skew
- Automotive Lines: Robotic cell communication backbones
- Water SCADA: Flood monitoring systems with 1000m cable runs
Competitive Advantages
- Zero Re-termination Guarantee: SwageLoc™ crimp technology prevents pull-out forces >110N
- Time Savings: Self-stripping dies cut/crimp in one action (50% faster install)
- Signal Perfection: Impedance-matched terminators reduce reflections by 30dB
Key Parameters
| Manufacturer | Allen-Bradley (Rockwell Automation) |
|---|---|
| Product Line | ControlNet Physical Layer Components |
| Part Number | 1786-CTK |
| Network Standard | ControlNet (Conforms to IEC 61158/EN 50170) |
| Data Rate | 5 Mbps (Fixed) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Packaging & Shipping
Company Information
Xiamen ZhiCheng Automation Technology Co., Ltd is a leading global supplier of control system components. We specialize in control systems and drives.
With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts.
We are major in PLC, Sensors, HIM, Transmitters.
