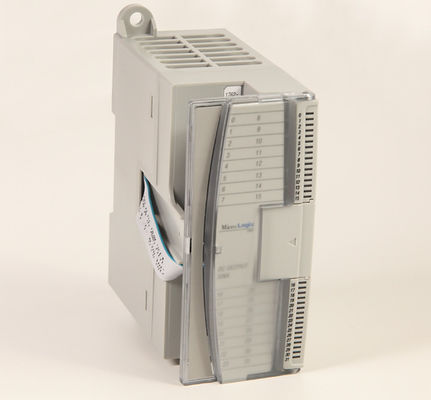

1762-OW16 - 16-Point 24VDC Isolated Output - Industrial Rugged Din-Rail Digital Module
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Detail Information
Place of Origin
America
Brand Name
Allen Bradley
Certification
3C
Model Number
1762-OW16
Communication Protocol:
EtherNet/IP
Package:
Original
Operating Temperature:
-20 To 60 Degrees Celsius
Data Rate:
10/100 Mbps
Power Supply:
24V DC
Number Of Conductors:
8 Conductors (4-pair)
Product Line:
Panelview Plus 7
Input Type:
Touchscreen
Highlight:
industrial allen bradley module
,industrial allen bradley plc
,Standard allen bradley module
Product Description
1762-OW16 - 16-Point 24VDC Isolated Output - Industrial Rugged Din-Rail Digital Module
| Attribute | Value |
|---|---|
| Communication Protocol | EtherNet/IP |
| Package | Original |
| Operating Temperature | -20 to 60 degrees Celsius |
| Data Rate | 10/100 Mbps |
| Power Supply | 24V DC |
| Number Of Conductors | 8 conductors (4-pair) |
| Product Line | Panelview Plus 7 |
| Input Type | Touchscreen |
Product Overview
The Allen-Bradley 1762-IF2OF2 MicroLogix™ Hybrid Analog Module combines 2-channel analog inputs and 2-channel analog outputs in a single-slot form factor for compact automation systems. Designed for MicroLogix 1100/1400 controllers, it features 12-bit resolution on both I/O types, supporting ±10V DC voltage and 4-20mA current ranges. The polycarbonate housing (IP30-rated) withstands industrial debris and operates reliably from -20°C to +65°C. Integrated screw terminals simplify field wiring, while configurable filtering and software-selectable ranges via RSLogix 500® enable flexible integration into diverse processes without external signal conditioning.
Critical Technical Specifications
Precision hybrid I/O parameters:
- Inputs (x2):
- Voltage: ±10V DC, 0-10V DC
- Current: 0-20mA, 4-20mA
- Resolution: 12-bit (0.024% FSR accuracy)
- Outputs (x2):
- Voltage: ±10V DC, 0-10V DC
- Current: 0-20mA, 4-20mA
- Resolution: 12-bit (±0.1% FSR stability)
- Isolation: 250V AC input-output / 500V AC channel-ground
- Update Rate: 10ms/channel
- Power: 95mA @ 5V DC (backplane)
- Compliance: UL 61010-1, CE, RoHS
Targeted Applications
Space-constrained process control:
- Tank Level Systems: Inputs from pressure transmitters -> outputs to control valves
- Temperature Regulation: RTD simulation inputs -> heater current outputs
- Conveyor Speed Control: Encoder feedback inputs -> motor drive signal outputs
- Water Chemistry: pH sensor inputs -> chemical dosing pump outputs
- Energy Management: Current transducer inputs -> VFD speed reference outputs
- Packaging: Fill-weight inputs -> actuator position outputs
- Mobile Hydraulics: Pressure sensor inputs -> proportional valve commands
Competitive Advantages
Deployment & cost efficiencies:
- Footprint Reduction: Replaces two modules (saves 50% control cabinet space)
- Wiring Economy: Single terminal block for both I/O types
- Calibration Simplicity: Auto-zero tuning via RSLogix 500®
- Cross-Range Flexibility: Independent voltage/current per channel
- Legacy Support: 0-20mA output range for obsolete actuators
- Diagnostic Clarity: Dual-color I/O status LEDs per channel
- Lifecycle Value: 10-year hardware support
Functional Capabilities
Advanced hybrid control:
- Input Features:
- Open-Wire Detection: Flags <1mA current inputs
- Programmable Alarms: Configurable high/low limits
- Noise Filtering: 1-500Hz software-adjustable rejection
- Output Features:
- Ramp Control: 0.1s-60s slew-rate limiting
- Fail-Safe States: Default hold/min/max on fault
- Current Loop Test: Simulates 20mA for calibration
- Data Management:
- RSLogix 500® scaling to engineering units
- Data-table integration for trending
- Output clamp limits (±12V DC / 25mA)
| Key Parameter | Specification/Description |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series/Platform | MicroLogix™ 1100/1200/1400/1500 |
| Module Type | 16-Channel Form-C Relay Output |
| Part Number | 1762-OW16 (Rev B = current production) |
| Output Channels | 16 (Independent Form-C contacts: NO/NC/COM) |
| Contact Rating | 10A @ 120/240V AC 10A @ 24V DC 2A @ 125V DC (Resistive) |
| Max Switching Voltage | 250V AC/DC |
| Max Inrush Current | 50A for 100ms (AC) 15A for 1s (DC) |
| Contact Material | Silver Alloy (AgNi) |
| Electrical Life | 100,000 ops @ 10A (AC1) 50,000 ops @ 10A (DC1) |
| Mechanical Life | 10,000,000 ops |
| On-State Voltage Drop | ≤100 mV (AC/DC) |
| Off-State Leakage | ≤0.5 mA |
| Isolation | 1500V AC channel-to-bus 250V AC channel-to-channel |
| Switching Frequency | ≤1 Hz (Maximum for rated load) |
| Response Time (On/Off) | ≤10 ms |
| Status Indicators | Per-channel: Green LED (Output Active) |
| Connection Type | Removable 20-pin screw terminal (1762-TB20 required) |
| Surge Protection | Built-in RC snubber (AC) / Flyback diode (DC) |
| Backplane Current (5V DC) | 100 mA max |
| Power Dissipation | 1.6W max (All channels off) / 3.2W max (All channels on) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Vibration Resistance | 5g @ 10-500Hz |
| Shock Resistance | 30g (11ms half-sine) |
| Contact Arrangement | SPDT Form-C (NO + NC per channel) |
| Minimum Load | 10 mA @ 5V DC |
| Certifications | cULus Listed, CE, ATEX/IECEx Zone 2 |
| Compatible Controllers | MicroLogix 1100/1200/1400/1500 (Requires 1762-EXP expansion port) |
| Software Configuration | RSLogix 500 v8.1+ Connected Components Workbench (CCW) |
| Dimensions (H×W×D) | 90 × 72 × 87 mm (3.54 × 2.83 × 3.43 in) |
| Weight | 350 g (0.77 lb) |
| Arc Suppression | Integrated for AC/DC loads |
| Relay Type | Electromechanical (Non-latching) |
| Product Status | ACTIVE (Legacy - Consider 1762-OX6I for isolated solid-state) |
