1756-PB75/B Allen Bradley Module 24VDC High Capacity Controllogix Io Modules
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1756-PB75/B Allen Bradley Module
,24VDC 1756-PB75/B Allen Bradley
,High Capacity 1756-PB75/B Allen Bradley
| Attribute | Value |
|---|---|
| Number Of Conductors | 8 conductors (4-pair) |
| Product Series | Point I/O (Bul. 1734) |
| Hardware Type | I/O Chassis |
| Module Type | Processor Module |
| Type | module |
| Manufacturer | Allen-Bradley |
| Compatibility | ControlLogix platform |
| Operating Temperature | 0-60°C |

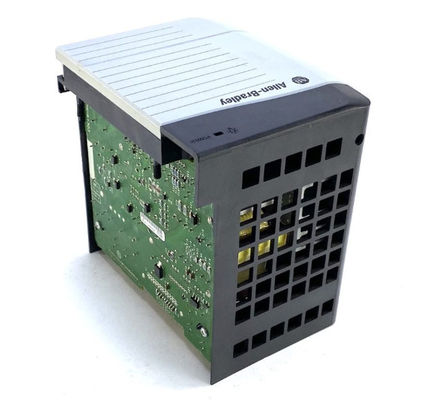

The Allen-Bradley 1756-PB75/B ControlLogix® Power Supply is a high-capacity, redundant power module engineered for mission-critical automation systems. Designed for Rockwell's 1756 chassis, it delivers 75W (6A @ 5.1V DC) with N+1 hot-swap redundancy, ensuring zero downtime during failures.
Its rugged die-cast aluminum housing features IP54 protection (-40°C to +70°C) and withstands severe shock/vibration (15g IEC 60068-2-27). Integrated dual-input auto-ranging (100-240V AC ±10%, 47-63Hz or 125-250V DC) enables global deployment.
Key innovations include active harmonic filtering (<8% THDi), predictive failure alerts, and Studio 5000® integration for real-time health monitoring.
- Input Voltage: 100-240V AC (50/60Hz) | 125-250V DC (auto-sensing)
- Output Regulation: 5.1V DC ±0.5% (6A continuous, 9A peak/1s)
- Efficiency: 92% (EN 50564 compliant)
- Redundancy Tolerance: ≤0.1% current imbalance during parallel operation
- Hold-Up Time: 20ms @ full load during power loss
- Inrush Current: <35A (NTC-limited)
- Isolation: 2500V AC input-output (EN 50178 OVC III)
- MTBF: >560,000 hours @ 40°C (Telcordia SR-332)
- Certifications: UL 61010-1, ATEX II 3G Ex ec IIC T80°C Gc, SIL 2 (IEC 61508)
- Oil & Gas Platforms: SIL 2 safety shutdown systems (API 14F Zone 1)
- Pharmaceutical: FDA 21 CFR Part 11-compliant cleanroom control cabinets
- Energy Grids: Substation RTUs with generator/UPS backup
- Automotive Robotics: 24/7 paint shop robots (-40°C cold-start)
- Water SCADA: Flood-resistant pump stations (IP66/NEMA 4X)
- Semiconductor: Vibration-sensitive wafer handling tools (Class 10 cleanroom)
- Mining: Conveyor control in MSHA-compliant hazardous areas
| Key Parameter | Specification/Description |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series/Platform | ControlLogix® |
| Module Type | Chassis Power Supply (AC/DC Input) |
| Part Number | 1756-PB75/B (Revision B) |
| Input Voltage Range | 85-132V AC / 170-265V AC (Switch-selectable) 120-250V DC |
| Input Frequency | 47-63 Hz (AC mode) |
| Output Voltage | +5.1V DC (Primary), +24V DC (Auxiliary) |
| Output Current | 14.7A @ +5.1V DC (75W max) 1.5A @ +24V DC (36W max) |
| Total Power | 111W maximum (combined) |
| Inrush Current | 40A peak @ 120V AC |
| Efficiency | ≥88% @ full load |
| Hold-up Time | ≥20ms (AC input dropout) |
| Overload Protection | Auto-resetting current limit (5V & 24V) |
| Thermal Protection | Shutdown at >85°C with auto-recovery |
| Status Indicators | Green (OK) Red (Fault) Yellow (Input Voltage Warning) |
| Backplane Connection | Direct chassis backplane interface |
| Input Terminal | 3-pin removable block (0.5-2.5mm² / 20-12 AWG) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Derating Curve | Required above 40°C: Linear derating from 100% to 60% @ 60°C |
| Cooling Method | Internal forced-air fan |
| Audible Noise | ≤55 dBA @ 1m |
| Safety Certifications | cULus (UL 508), CE, ATEX/IECEx Zone 2 |
| EMC Compliance | EN 61326-1, EN 61000-6-2/4 |
| Compatible Chassis | 1756-A4/A7/A10/A13/A17 (Left-end slot only) |
| Weight | 1.8 kg (4.0 lb) |
| Dimensions (H×W×D) | 194 × 60 × 135 mm (7.64 × 2.36 × 5.31 in) |
| MTBF | 650,000 hours @ 40°C (IEC 61709) |
| Leakage Current | <3.5 mA @ 240V AC |
| Harmonic Distortion | <20% @ full load |
| Voltage Tolerance | +5V: ±3% +24V: ±5% |
| Ripple & Noise | +5V: 100mV p-p max +24V: 200mV p-p max |
| Product Status | ACTIVE (Legacy) - Newer alternative: 1756-PB75R (Redundant-ready) |
