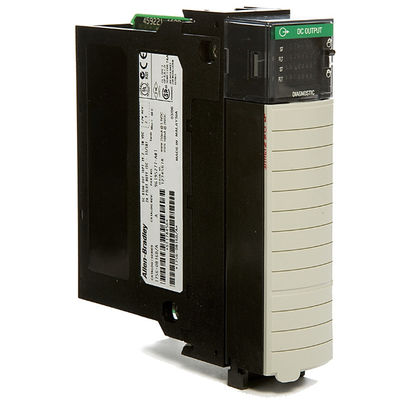

1756-OB16D Allen Bradley Module Transistor Output Industrial Rugged Sourcing Output Module
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1756-OB16D Allen Bradley Module
,Industrial 1756-OB16D Allen Bradley
,Rugged 1756-OB16D Allen Bradley
| Attribute | Value |
|---|---|
| Module Type | Digital DC Input Module |
| Power Supply | 24V DC |
| Length | 3 feet (0.91 meters) |
| Series | ControlLogix |
| Hardware Type | Chassis Interconnect Cable |
| Number Of Conductors | 8 conductors (4-pair) |
| Voltage | 12-24 Volts DC Source |
| Inputs | 1 Count Input |
The Allen-Bradley 1756-OB16D ControlLogix ® Sourcing Output Module delivers robust control for industrial actuation systems. Designed for Rockwell's ControlLogix platform, this 16-channel module sources 24V DC power to solenoids, relays, and starters with galvanic isolation (1,500V AC) between outputs and backplane. Featuring a hardened aluminum housing (-40°C to +70°C) with NEMA 4X/IP67 protection, it withstands washdowns, corrosive chemicals, and vibration (5g IEC 60068-2-6). Integrated per-channel diagnostic LEDs, electronic keying, and 0.5A continuous per-point capacity ensure precise control in demanding automation environments. Studio 5000® enables configurable pulse stretching (1-65,535ms) and real-time health monitoring.
Performance-defining parameters:
- Output Type: 16× 24V DC sourcing outputs
- Switching Capacity: 0.5A continuous / 2A surge (100ms) per channel
- Leakage Current: <50μA @ OFF state
- Response Time: ≤1ms ON/OFF
- Isolation:
- 1,500V AC channel-to-backplane
- 250V AC channel-to-channel
- Protections:
- Short-circuit (auto-reset)
- Over-temperature (90°C shutdown)
- Power Consumption: 95mA @ 5V DC backplane
- Safety Certifications: SIL 2 (IEC 61508), ATEX II 3G Ex ec IIC T80°C Gc
High-current actuation systems:
- Material Handling: Conveyor motor starters & diverters
- Energy Systems: Circuit breaker control in substations
- Water Treatment: Solenoid valve banks for chemical dosing
- Automotive: Robotic weld gun clamp/spot controls
- Food Processing: CIP cleaning cycle valve manifolds
- Mining: Ventilation damper actuators
- Packaging: Carton sealer heating element relays
Engineering superiorities:
- Predictive Contact Monitoring: Detects contact welding via <0.2Ω impedance shift
- Dynamic Surge Handling: Withstands 10x inrush current for motor starters
- Corrosion Defense: Gold-plated contacts resist H₂S environments (ISO 9227 C5-M)
- Hot-Swap Replacement: Tool-less extraction with 1756-TBCH terminals
- Wiring Efficiency: Removable terminal blocks reduce rewiring time by 80%
- Lifecycle Economy: 5M+ cycles @ 0.5A (3× standard relay lifespan)
- Safety Integration: SIL 2 compliance without external isolation
Advanced output control:
- Programmable Pulsing: Pulse stretching (1-65,535ms) for short-cycle valves
- Sequence Control: Staggered channel activation (0-250ms delays)
- Current Monitoring: Per-point load sensing (±50mA accuracy)
- Fault Logging: Stores last 16 faults with 1ms timestamps
- Force/Lock Override: Maintenance mode via Studio 5000®
- Redundancy Support: Output mirroring to backup controllers
- Thermal Derating: Auto-output reduction >60°C with alerts
- Legacy Compatibility: Operates with 1756-L6x controllers
| Parameter | Value/Specification |
|---|---|
| Product Type | ControlLogix 16-Channel Sourcing Digital Output Module |
| Catalog Number | 1756-OB16D |
| Output Channels | 16 (isolated in 4 groups of 4) |
| Output Type | Sourcing (24V DC) |
| Output Voltage Range | 19-30V DC |
| Continuous Current | 0.5 A per channel (1 A peak for 100 ms) |
| Total Current per Group | 2 A max (4 channels × 0.5 A) |
| On-State Voltage Drop | ≤1.5V DC @ 0.5 A |
| Off-State Leakage | ≤0.1 mA |
| Switching Speed | 0.1 ms (On)/0.3 ms (Off) typical |
| Isolation | 250V AC channel-to-bus 1500V AC group-to-group |
| Protection Features | Short-circuit, overload, transient suppression (per group) |
| Diagnostics | Per-channel status LEDs (Green = On, Red = Fault) |
| Backplane Current | 85 mA @ 5V DC (logic) 2 mA @ 24V DC (sensor) |
| Power Dissipation | 3.5 W max |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Surge Immunity | ±1 kV (IEC 61000-4-4) |
| Connection Type | Removable 20-pin screw terminal (requires 1756-TBCH/D) |
| Wire Gauge | 0.5-2.5 mm² (AWG 20-14) |
| Dimensions (H x W x D) | 135 mm × 56 mm × 87 mm (5.31 × 2.2 × 3.43 in) |
| Weight | 300 g (0.66 lb) |
| Certifications | UL 508, CE, cULus, ATEX Zone 2, IECEx, RoHS, SIL 2 (IEC 61508) |
| MTBF | 1.2 million hours @ 40°C (IEC 61709) |
| Compatibility | ControlLogix 1756 chassis (all sizes); Studio 5000 v16+ |
