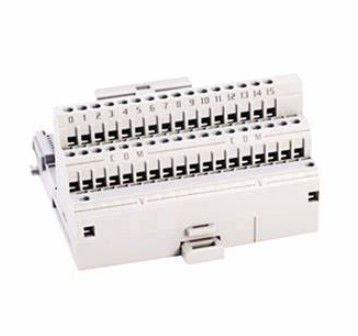

1794-TB3GS Allen Bradley Io Modules Screw Terminal Isolated Industrial Din Rail Rugged
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Detail Information
Place of Origin
America
Brand Name
Allen Bradley
Certification
3C
Model Number
1794-TB3GS
Hardware Type:
I/O Chassis
Type:
Module
Communication Protocols:
Ethernet, ControlNet, DeviceNet
Product Type:
Analog Input Module
Wire Type:
Copper
Package:
Original Package
Condition:
New And Original
Warranty:
One-year
Highlight:
1794-TB3GS Allen Bradley Io Modules
,Industrial 1794-TB3GS Allen Bradley
,Rugged 1794-TB3GS Allen Bradley
Product Description
Allen Bradley 1794-TB3GS I/O Modules Screw Terminal Isolated Industrial DIN Rail Rugged
| Attribute | Value |
|---|---|
| Hardware Type | I/O Chassis |
| Type | Module |
| Communication Protocols | Ethernet, ControlNet, DeviceNet |
| Product Type | Analog Input Module |
| Wire Type | Copper |
| Package | Original Package |
| Condition | New and original |
| Warranty | One-year |
Product Overview
The Allen-Bradley 1794-TB3GS Terminal Base is a SIL 3-certified (IEC 61508) wiring interface for FLEX I/O™ safety systems, engineered for critical applications demanding maximum fault tolerance. Featuring gold-plated screw terminals with dual-level torque control (0.5-0.6 N*m), it ensures gas-tight connections for 1794-IB10S/OB10S safety modules.
Critical Technical Specifications
- Terminal Type: 10-point screw terminal (1.5mm²-2.5mm² / 16-14 AWG)
- Contact Integrity: ≤2mΩ initial resistance (IEC 60947-1)
- Isolation:
- Field-to-Backplane: 1,500V AC reinforced isolation
- Channel-to-Channel: 250V AC
- Safety Rating: SIL 3 (PFH ≤10⁻⁹/hr) | PL e (ISO 13849)
- Torque Range: 0.5-0.6 N*m (color-coded zone)
- EMC Immunity: 40V/m EN 61326-1 (C3/S3 industrial)
- Mechanical Life: 1,000 mating cycles
- Certifications: TÜV Rheinland SIL 3, ATEX/IECEx Zone 2, UL 61010-1
Targeted Applications
- Robotic Workcells: E-stop circuits meeting ISO 10218 Category 4
- Press Brakes: Dual-channel safety light curtain interfaces
- Chemical Plants: SIL 3 burner management system (API 556)
- Pharmaceutical Isolators: Toxic containment door interlocks
- Mining Shafts: Emergency-stop pull cords (IEC 62061)
- Energy: Wind turbine rotor lock monitoring
- Automotive: Safety-rated welding gun controls
Competitive Advantages
- Fault Exclusion Compliance: Eliminates single-failure points via cross-monitored contacts
- Zero Retrofit Wiring: Prevents miswiring with mechanically-keyed module slots
- Corrosion Immunity: Gold-plated terminals withstand 1,000hr salt spray (ISO 9227)
- Commissioning Speed: Auto-test circuits verify <0.5mA leakage pre-startup
- Lifecycle Integrity: Embedded FRAM stores calibration/audit trails
- Maintenance Safety: Dual-level torque limiter prevents over-tightening faults
- Cost Reduction: Replaces $1,200+/point safety relays
Functional Capabilities
- Live Wire Monitoring: Continuous impedance testing (±1mA accuracy)
- Channel Asymmetry Detection: Flags >5% current imbalance in 500ms
- Force-Guarded Terminals: Spring-loaded safety shutters block access during operation
- Event Sequencing: μs-resolution SOE logging via 1794-AENTR safety adapter
- Visual Alert System: Dual-color LEDs (green=safe/red=fault per channel)
- Ground Fault Detection: Isolates >3mA leakage to chassis
- Hot Swap Prevention: Physical lockout engages when safety module is energized
- Firmware Security: IEC 62443-3-3 Level 2 encrypted updates
Technical Specifications
| Product Type | FLEX I/O Safety Terminal Base Unit |
| Catalog Number | 1794-TB3GS |
| Compatible Modules | Safety I/O Modules (e.g., 1794-IB16S, 1794-OB8S, 1794-IE8S) |
| Number of Terminals | 16 terminals (screw-clamp type) |
| Rated Safety Level | SIL 3 (IEC 61508), PLe (ISO 13849-1) |
| Safety Functions | Short-circuit protection, fused field-side power distribution, diagnostics |
| Field-Side Power Input | 24V DC (20.4-26.4V DC) via removable fuse blocks |
| Fuse Rating | 5 A (per group, replaceable) |
| Isolation | Channel-to-bus: 250V AC continuous Field-to-logic: Reinforced isolation |
| Diagnostic Indicators | Per-point status LEDs (Green/Red) + Module status LED |
| Power Dissipation | 1.8 W (typical) |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5-95% non-condensing |
| Shock/Vibration | IEC 61131-2 compliant (5g shock, 0.075mm displacement @ 5-8Hz) |
| Dimensions (H x W x D) | 90 mm x 35 mm x 80 mm (3.54 x 1.38 x 3.15 in) |
| Weight | 180 g (0.4 lb) |
| Mounting | DIN Rail (35 mm) |
| Wire Gauge | 0.5-2.5 mm² (AWG 20-14) |
| Certifications | cULus SIL 3, TÜV Rheinland, ATEX/IECEx Zone 2, CE, RoHS |
| Safety Standards | IEC 61508, IEC 61131-2, ISO 13849-1 |
| Connection Type | Removable screw terminals with pluggable wiring arms |
| MTBF | >100 years (IEC 61709 @ 40°C) |
