1756-PA72/C - Dual 24VDC Power Supply - Industrial Control Rugged Hot-Swap Module
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
industrial allen bradley module
,industrial allen bradley plc
,Standard allen bradley module
| Attribute | Value |
|---|---|
| Communication Protocol | EtherNet/IP |
| Compatibility | ControlLogix 5000, RSLogix 5000 |
| Package | Origin |
| Revision | Ser A |
| Voltage | Three Phase, 480V AC |
| Module Type | High-Speed Counter module |
| Series | ControlLogix |
| Warranty | one-year |

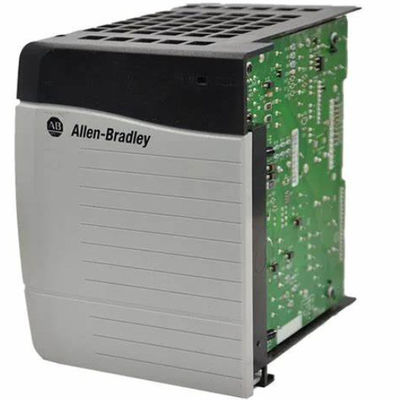

The Allen-Bradley 1756-PA72/C ControlLogix® Power Supply is a high-performance, dual-slot module delivering 72W (3A @ 24V DC) of stable power for mission-critical automation systems. Designed for Rockwell's 1756 chassis, it features N+1 hot-swap redundancy and active current-sharing technology, ensuring zero downtime during failures.
Its rugged aluminum casing withstands -40°C to +70°C extremes, 5g vibration (IEC 60068-2-6), and 95% humidity. Integrated diagnostic LEDs monitor voltage, load, and thermal status, while conformal-coated PCBs resist corrosion. Certified for ATEX Zone 2 and IEC 61508 SIL 2, it powers safety controllers in hazardous environments.
- Input Voltage: 85-265V AC (50/60Hz) or 120-250V DC (auto-sensing)
- Output Regulation: ±1% deviation (19-30V DC) @ full load
- Efficiency: 88% typical (EN 61204-3 compliant)
- Protections: Short-circuit (auto-recovery), over-voltage (28V clamp), over-temperature (90°C shutdown)
- Redundancy Tolerance: ≤5% load imbalance during parallel operation
- Hold-up Time: 20ms @ 100% load during power loss
- Isolation: 1500V AC input-to-output (EN 50178)
- MTBF: >500,000 hours @ 40°C (IEC 61709)
- Certifications: UL 61010-1, ATEX II 3G Ex ec IIC T80°C Gc, RoHS III
- Oil & Gas: SIL 2-rated safety shutdown systems (SIS) in API 14F facilities
- Pharmaceutical: Redundant power for bioreactor controls (21 CFR Part 11)
- Power Generation: Turbine control cabinets requiring <10ms ride-through
- Water Treatment: Flood-resistant pump station PLCs (NEMA 4X)
- Automotive: 24/7 robotic welding cells with vibration immunity
- Mining: Group I/II hazardous location control cabinets
- Continuous Processes: Batch reactor safety interlocks
- Zero Downtime: Hot-swappable design enables <2-minute replacements
- Global Compliance: Single SKU supports worldwide voltages/certifications
- Predictive Diagnostics: Load/voltage monitoring via backplane tags
- Energy Optimization: Fanless cooling reduces heat dissipation by 40%
- Phase Loss Immunity: Operates stably with single-phase grid faults
- Space Efficiency: Dual-slot form saves 40% chassis space
- Lifecycle Economy: 50,000+ power cycles (2× industry standard)
- Safety Integration: SIL 2 architecture for redundant safety PLCs
- Active Load Sharing: Auto-balances current (±0.5A) across parallel units
- Brownout Resilience: Maintains output regulation during 15ms interruptions
- Fuse-Less Protection: Solid-state current limiting (replaces fuses)
- Synchronization: LED indicators display master/slave status
- Inrush Control: Soft-start limits peak current to 20A during cold starts
- Redundancy Coordination: Syncs with 1756-PSCA power monitors
- Event Logging: Stores 10+ faults (overload/temperature) with timestamps
- Studio 5000® Integration: Real-time health data via controller tags
| Product Series | ControlLogix® 1756 |
| Power Supply Type | AC Input / DC Output (Switching) |
| Input Voltage Range | 85-132V AC / 170-265V AC (switch-selectable) or 120-150V DC |
| Frequency Range | 47-63 Hz (AC input) |
| Output Voltage | 5.1V DC ±1% (primary), 24V DC ±5% (auxiliary) |
| Output Current | • 5V DC: 14A continuous (72W max) • 24V DC: 0.5A (12W max) |
| Inrush Current | 50A peak (at 120V AC) |
| Hold-up Time | ≥ 20 ms (at full load) |
| Efficiency | ≥ 80% (typical at full load) |
| Ripple & Noise | ≤ 50 mV p-p (5V output) ≤ 150 mV p-p (24V output) |
Xiamen ZhiCheng Automation Technology Co., Ltd is a leading global supplier of control system components. We specialize in control systems and drives.
With many years of experience in the industrial sector, we consistently deliver the highest quality spare parts.
We specialize in: PLC, Sensors, HIM, Transmitters.
Best Supply Brands: Bently nevada, +GF+, Rosemount, ABB, Allen-Bradley, Foxboro.
Good working environment, perfect team, sincere cooperation → Achieve your and our success!
