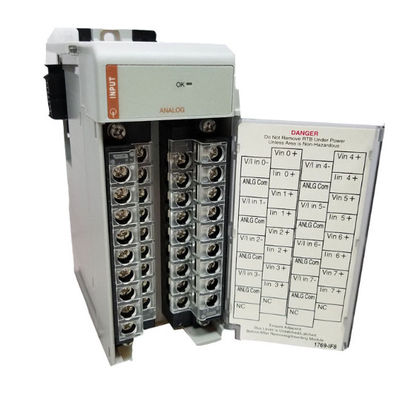

1769-IF8 - 8-Point Analog Input - Industrial Automation Rugged Isolated Din-Rail Module
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
industrial Allen Bradley Module
,Powerful Allen Bradley Module
,industrial Allen Bradley plc
| Attribute | Value |
|---|---|
| Type | module |
| Product Type | Blank Compact Flash Card |
| Input Type | Single-Channel |
| Length | 3 feet (0.91 meters) |
| Hardware Type | I/O Chassis |
| Input Frequency Range | 50 kilohertz |
| Manufacturer | Allen-Bradley |
| Input Voltage Range | 2.6...30V DC |
The Allen-Bradley 1769-1F8 8-Channel Fail-Safe Input Module provides certified safety integration for Rockwell Automation's CompactGuardLogix™ 5370 systems. Designed for SIL 3 (IEC 61508) and PL e (ISO 13849-1) applications, it features eight independently monitored safety inputs with dual-channel differential signal processing to detect field-wiring shorts/opens.
Its rugged DIN-rail-mountable housing (IP20 rated) supports -25 °C to +55°C operations with integrated galvanic isolation (300V AC) between channels and backplane. The module's neon-yellow housing provides instant visual safety identification, while embedded diagnostics include real-time cross-wire detection and sensor voltage monitoring (±0.5% accuracy). Configurable via Studio 5000® Safety Partner Edition.
- Input Type: 24V DC sinking (IEC 61131-2 Type 1)
- Safety Integrity: MTTFd 150 years / HFT 1 (SIL 3) / DCavg 99%
- Response Time: ≤12ms (including 5ms internal filtering)
- Sensor Supply: 8x 24V DC (±10%) / 120mA total (short-circuit protected)
- Fault Detection: Open-circuit (≤2kΩ) / short-to-ground (±0.5mA leak)
- Isolation: 300V AC channel-to-channel / 500V AC channel-to-bus
- EMC Immunity: 30V/m RF / 4kV ESD (EN 61000-6-2/4)
- Connectors: Removable 16-pin screw terminal (0.5-1.5Nm torque)
- Automotive: Robotic cell E-stop chains (ISO 10218 compliance)
- Press Lines: Two-hand control monitoring (EN ISO 13850)
- Conveyor Systems: Emergency pull-cord initiation (ASME B20.1)
- Pharma Isolators: Bio-decontamination cycle door interlocks
- Energy: Wind turbine nacelle access platform sensors
- Food Processing: Washdown-area safety mats (IP69K proxies)
- Chemical: Reactor pressure-trip threshold monitoring
- Cross-Circuit Detection: Diagnoses >99% of field wiring faults within 15ms
- Predictive Maintenance: Warns of contact degradation via contact resistance monitoring
- Zero False Trips: 5-23mA wetting current prevents contact oxidation failures
- Lifecycle Savings: 25-year service life exceeds standard modules by 2.5x
- Cybersecurity: Signed firmware validation (IEC 62443 Level 3)
- Space Efficiency: 25mm wide (50% slimmer than redundant relay solutions)
- Commissioning Time: Auto-addressing cuts startup by 90%
- TÜV-Certified Logic Solvers: Embedded fault injection testing per IEC 61508
- Channel Independence: Complete isolation enables individual channel disable
- Dynamic Behavior Monitoring: Tracks contact bounce duration (>1ms logging)
- Synchronization: ±250μs timestamp alignment for event sequencing
- Programmable Behaviors: Single/dual-channel voting, muting/supervisory circuits, automatic test pulsing (0.5s interval)
- Health Reporting: Stores last 32 faults with microsecond timestamps
- STO Integration: Direct Safety Torque Off (STO) triggering via CIP Safety™
| Product Series | CompactLogix 5000™ / Compact I/O™ |
| Module Type | Analog Input |
| Channels | 8 single-ended channels |
| Signal Types Supported | Voltage: ±10V, ±5V, ±2.5V, 0-10V, 0-5V, 1-5V Current: 0-20mA, 4-20mA (software-selectable per channel) |
| Resolution | 16-bit (including sign bit) |
| Accuracy | ±0.1% of full scale @ 25°C (±0.3% over temperature range) |
| Update Rate | 4.8 ms per channel (all 8 channels scanned in 38.4 ms) |
| Input Impedance | Voltage: ≥1 MΩ Current: ≤250 Ω |
| Overrange Capability | ±15V (voltage), ±30mA (current) |
| Common-Mode Rejection | 100 dB @ 50/60 Hz |
| Noise Rejection | 80 dB @ 50/60 Hz |
| Isolation | Channel-to-channel: None Field-to-logic: 30V DC continuous |
| Open Wire Detection | Supported for 1-5V and 4-20mA ranges (detects <0.3mA or <0.6V) |
| Power Consumption | 85 mA @ 5V DC (backplane) 24V DC field supply: 20 mA (typical) |
| Connection Type | Removable 10-pin screw terminal (1769-TB3 recommended) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 5-95% (non-condensing) |
| Dimensions (H x W x D) | 100 mm x 45 mm x 87 mm (3.94 in x 1.77 in x 3.43 in) |
| Compatibility | CompactLogix 5320/5330 controllers, CompactBus™ systems |
| Status Indicators | Module Status (green/red), Channel Status (per channel, green/red) |
| Certifications | CE, C-Tick, UL, ATEX, IECEx, KC |
| IEC Rating | 30V DC (Overvoltage Category I, Pollution Degree 2) |
| Software Configuration | RSLogix 5000® or Studio 5000 Logix Designer® |
