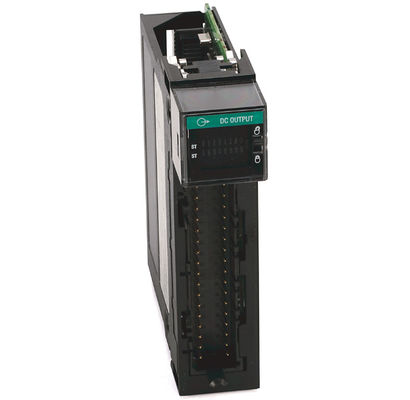

1756-0B161 - 16P 24VDC Isolated Output - Industrial Rugged Hot-Swap Digital Module
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
industrial Allen Bradley Module
,Powerful Allen Bradley Module
,industrial Allen Bradley plc
| Attribute | Value |
|---|---|
| Condition | New |
| Module Type | Processor Module |
| Thermal Dissipation | 17.4 BTU/h |
| Firmware Version | Full version |
| Max. Input Current | 1.5A |
| Communication Ports | Ethernet, USB, RS-232 |
| Model | 1746-IA4 |
| Input Frequency Range | 50 kilohertz |
The Allen-Bradley 1756-OB16I 16-Channel Isolated Output Module is a high-performance digital output component for Rockwell Automation's ControlLogix ® platform. Engineered for mission-critical industrial automation, it features galvanic isolation between channels to prevent ground loops and voltage interference. The module delivers robust 24V DC sinking outputs (0.5A per channel) with short-circuit protection and supports CIP Safety ™ protocol for functional safety compliance. Its hot-swappable design enables maintenance without system shutdown, while a built-in diagnostic LED per channel provides real-time status monitoring. Constructed with an anodized aluminum housing and conformal-coated circuitry, it operates reliably in harsh environments with severe EMI/vibration exposure.
Defining precision and resilience:
- Output Channels: 16 isolated sinking outputs (24V DC)
- Current Capacity: 0.5A continuous per channel (8A total module) with ±0.1% accuracy
- Isolation: 1500V AC channel-to-bus / 250V AC channel-to-channel
- Response Time: ≤1ms (ON/OFF) with 2 μs synchronization via CIP Sync™
- Surge Protection: 40A clamp (IEC 61000-4-5)
- Voltage Range: 19-30V DC (operational) / 5-30V DC (signal)
- Environmental: -40°C to +70°C / 5-95% non-condensing humidity
- Certifications: UL 61010-1, ATEX/IECEx Zone 2, ISASecure EDSA Level 2
- Communication: ControlNet™/EtherNet/IP™ via 1756 backplane (20 Mbps)
Critical industrial control scenarios:
- Energy Systems: Emergency shutdown (ESD) valve control in oil/gas refineries
- Automotive Manufacturing: Robotic welding cell safety interlocks per ISO 13849
- Chemical Processing: Solenoid-actuated dosing pump sequencing
- Water Treatment: High-current actuation of sludge press valves
- Material Handling: Conveyor emergency-stop circuit redundancy
- Pharmaceutical: Isolator barrier system control with SIL 3 compliance
- Power Generation: Turbine cooling fan activation during overload events
Operational superiority drivers:
- Fail-Safe Integrity: Dual-wire FaultTolerant ™ architecture with IEC 61508 SIL 3 certification
- Zero Downtime Maintenance: Hot Backup ™ redundancy with automatic channel failover
- Smart Diagnostics: Predictive load monitoring alerts before contact degradation
- Obsolescence Protection: Embedded FRAM memory retains data for 20+ years without batteries
- Cyber Resilience: Diode-Level Port Security blocks unauthorized backplane access
- Power Optimization: <1W per channel (65% less heat dissipation)
- Total Cost Reduction: Eliminates external isolators - saves $2,000+ per cabinet
Advanced control and integration:
- Programmable Behaviors: Per-channel pulse stretching (1-65,535ms) + soft-start sequencing
- Safety Logic: Integrated STO (Safe Torque Off) for motor drives via CIP Safety™
- Analog Feedback: 16-bit current monitoring with 0.1mA resolution
- Synchronization: ±250μs skew control across modules for motion-critical systems
- Electronic Marshalling: Studio 5000 ® auto-discovery maps I/O without jumpers
- Load Management: Adaptive inrush control (8x rating for 10ms)
- Compliance Logging: Audit trails for FDA 21 CFR Part 11/GAMP 5
| Attribute Category | Specification Details |
|---|---|
| Model Number | 1756-OB16I (Series A/B) |
| Product Type | 120V AC Digital Output Module (ControlLogix Platform) |
| I/O Points | 16 points (Individually Isolated) |
| Output Voltage | 120V AC (±15%) |
| Output Current | Max per Point: 0.5 A Max Module: 8 A (shared across all points) |
| Isolation | Channel-to-Channel: 250V AC Channel-to-Backplane: 1500V AC |
| Switching Element | Triac (Solid-State) |
| Response Time | Turn On: ≤ 1 ms Turn Off: ≤ 1/2 AC cycle (10 ms @ 50 Hz) |
| Surge Current | 15 A for 20 ms (per point) |
| Backplane Current | 5V DC: 100 mA 24V DC: 40 mA (for logic) |
| Communication | ControlLogix Backplane (Supports Logix5000 Firmware v16+) |
| Diagnostics | Per-Point Status: LED indicators Module Status: OK/RUN/FAULT LEDs |
| Termination | Removable 36-pin screw terminal block (1756-TBS, -TBNH, or -TBCH) |
| Protection Features | Short-Circuit Protection: Group-fused (internal electronic fusing) Overload: Automatic shutdown |
| Operating Temperature | Standard: 0°C to 60°C Extended: -20°C to 60°C (with derating) |
| Certifications | UL Listed, CE, cULus, ATEX/IECEx (Zone 2), RoHS |
| Dimensions (H×W×D) | 135 × 56 × 87 mm |
| Key Features | • Individual Point Isolation • High-Density AC Switching • Live Insertion (Hot-Swapping) • Logix Integration (Studio 5000) |
