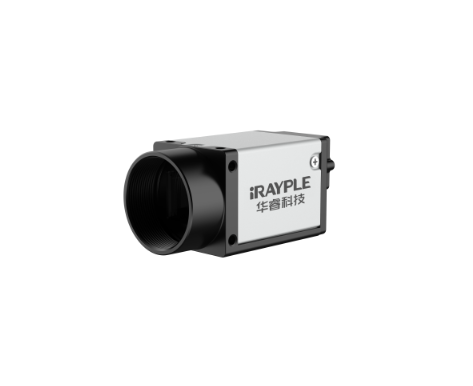

IRAYPLE AHS130MG000 Global-Shutter/GigE Mono High-Sens Factory Vision-Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Detail Information
Place of Origin
China
Brand Name
IRAYPLE
Certification
3C
Model Number
AH7160MG001
Product Model:
IRAYPLE AH7160MG001 Industrial GigE Area Scan Camera
Sensor Type:
Sony IMX296 CMOS Sensor, 1/2.9" Monochrome Global Shutter
Resolution:
1.6 Megapixel, 1440 × 1080 Pixels
Frame Rate:
Up To 65.2 Fps Full Resolution Acquisition
Pixel Size:
3.45 μm × 3.45 μm High-Precision Pixel Architecture
Interface Type:
GigE Vision Gigabit Ethernet With PoE Support
Lens Mount:
Standard C-Mount Industrial Lens Interface
Image Output Format:
Mono8 / Mono10 / Mono10Packed
Highlight:
Global-Shutter GigE Mono camera
,Factory vision high-sensitivity camera
,IRAYPLE AHS130MG000 industrial camera
Product Description
IRAYPLE AHS130MG000 Global-Shutter/GigE Mono High-Sens Factory Vision-Camera
Product Overview
The IRAYPLE AH7160MG001 is a high-performance, compact monochrome area scan camera from the APro series, engineered for demanding industrial automation and machine vision applications. It features a robust Gigabit Ethernet (GigE) interface with Power over Ethernet (PoE) support, providing 1 Gbps data bandwidth and transmission distances up to 100 meters.
Built around a Sony IMX273 1/2.9-inch CMOS global shutter sensor, the camera delivers 1440 x 1080 pixel resolution (1.6 MP) at up to 77 fps, ensuring sharp image capture of fast-moving objects without motion blur. Key specifications include 3.45 μm pixel size, 12-bit output depth, 60 dB dynamic range, and 38 dB signal-to-noise ratio.
Key Features
- 256MB on-board cache for high-speed data bursts
- Versatile triggering modes (software, hardware, free-run)
- C-mount lens interface
- Compact form factor: 29mm x 29mm x 42mm
- Operating temperature: 0°C to +50°C
- International certifications: CE, UKCA, UL, KC, RoHS
Applications & Advantages
Designed for precision tasks in high-speed inspection, robotic guidance, barcode reading, and electronic component assembly where high-resolution monochrome imaging is required. The global shutter sensor eliminates motion blur while the high-speed GigE interface enables reliable, long-distance connectivity.
Advanced on-board Image Signal Processing (ISP) features include gamma correction, lookup tables (LUT), black level correction, brightness/contrast adjustment, flat-field correction (FFC), denoising, and sharpening. These enable real-time image optimization directly within the camera, reducing host PC processing load.
Technical Specifications
| Parameter Category | Specification Details |
|---|---|
| Model | AH7160MG001 / AH7160MG001E |
| Series | AH Series / APro Series Small Area Array Camera |
| Sensor | Sony IMX296, Global Shutter |
| Resolution | 1.6 MP (1440 × 1080) |
| Sensor Type | 1/2.9" CMOS |
| Color/Mono | Mono |
| Frame Rate | 65 fps (65.2 fps for AH7160MG001E) |
| Pixel Size | 3.45 μm × 3.45 μm |
| Dynamic Range | 60 dB / 65.5 dB (AH7160MG001E) |
| Signal-to-Noise Ratio | 38 dB (AH7160MG001) / 40 dB (AH7160MG001E) |
| Bit Depth | 10 bit |
| Image Formats | Mono8 / Mono10 / Mono10Packed |
| Exposure Time | SE: 1 μs ~ 13 μs; UE: 14 μs ~ 10 sec (AH7160MG001E) |
| Gain | 1 ~ 32X |
| Gamma | Range 0 ~ 4, supports LUT |
| Data Interface | GigE, PoE (1 Gbps bandwidth, up to 100m) |
| Lens Mount | C-mount |
| GPIO | 6-pin Hirose: 1 opto-isolated input, 1 opto-isolated output, 1 configurable I/O (non-isolated) |
| Trigger Modes | Software Trigger, Hardware Trigger, Free Run |
| On-board Cache | 256 MB (AH7160MG001E) / 128 MB (AH7160MG001) |
| User Configurations | 3 sets (AH7160MG001E) / 2 sets (AH7160MG001) |
| Power Supply | PoE (IEEE 802.3af) or DC 9V ~ 24V via Hirose interface |
| Power Consumption | Approx. 2.15 W @12V (AH7160MG001E) / 3.5 W @12V (AH7160MG001) |
| Dimensions | 29 mm × 29 mm × 42 mm (excluding lens mount and rear case connector) |
| Weight | 98 g (AH7160MG001E) / 88 g (AH7160MG001) |
| Operating Temp. | 0℃ ~ +50℃ |
| Storage Temp. | -30℃ ~ +80℃ |
| Compatibility | GigE Vision V2.0, GenICam, CE, UKCA, UL, KC, RoHS |
| Features | ROI (multiple regions), Binning (including arbitrary scaling), X/Y Flip, SPC (Single Point Correction), Gamma Correction, LUT, Black Level Correction, FFC, Denoising, Sharpening, Auto Function, Lossless Compression, Sequencer |
