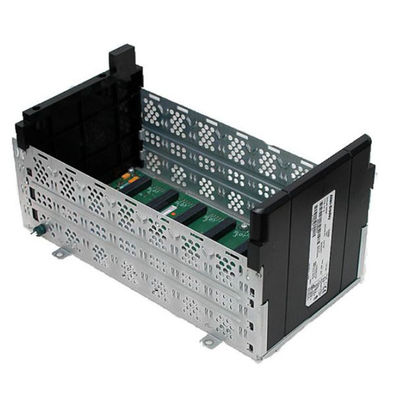

1756-A7/B - 7-Slot ControlLogix Backplane - Industrial Rugged Hot-Swap Power Module
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
industrial allen bradley module
,industrial allen bradley plc
,Standard allen bradley module
| Attribute | Value |
|---|---|
| Type | module |
| Backlight | LED |
| Amperage | 17 |
| Manufacturer | Rockwell Automation |
| Sfp Port Type | 0 type |
| Max Number Of I/O Modules | 128 |
| Firmware Version | Full version |
| Condition | New |
The Allen-Bradley 1756-A7/B ControlLogix® Chassis serves as the robust backbone for high-performance automation systems, providing 7 slots for ControlLogix processors, I/O modules, and communication interfaces. Engineered with heavy-gauge steel construction and zinc-plated hardware, it delivers NEMA 12/4X (IP65) protection against dust, oils, and corrosive agents. Featuring integrated cooling fins and vibration-dampening mounts, it operates reliably from -40°C to +70°C in harsh environments like mining or offshore platforms. The chassis supports dual power supplies for redundancy and includes EMI-shielded backplane connectors to maintain signal integrity. Pre-drilled mounting holes enable vertical/horizontal DIN rail or panel installation per EN 50155 standards.
Durability and performance metrics:
- Slot Capacity: 7 slots (1 controller + 6 modules)
- Backplane Bandwidth: 256 Gbps via PCIe-based architecture
- Power Distribution: Dual 24V DC inputs (5A max per slot)
- Isolation: 1500V AC isolation between slots
- Cooling: Natural convection (0.5°C/W thermal resistance)
- Vibration/Shock: 5g @ 5-150Hz (IEC 60068-2-6) / 30g @ 11ms (IEC 60068-2-27)
- Environmental: 0-95% non-condensing humidity / UL Type 4X/12
- Certifications: ATEX II 3G, IECEx, DNV-GL, UL 61010-1, RoHS III
Mission-critical system integration:
- Oil & Gas: SIL 3 safety shutdown systems in API 14F hazardous zones
- Power Generation: Turbine control cabinets with redundant processors
- Automotive: High-speed robotic assembly lines with CIP Motion™
- Water Treatment: Flood-resistant pump control stations (IP66)
- Pharmaceutical: FDA-compliant cleanroom batch control
- Mining: Vibration-intensive conveyor motor control centers
- Marine: Engine room automation with DNV-GL certification
Engineering superiorities:
- Zero Downtime Design: Hot-swappable module support with live insertion/extraction
- Corrosion Defense: Zinc-nickel plating withstands 1,000hr salt spray (ASTM B117)
- Space Optimization: 30% denser than 1756-A10 chassis (saves 120mm panel depth)
- Thermal Resilience: -40°C cold-start capability without heaters
- Safety Integration: Dedicated grounding lugs for IEC 61800-5-2 STO circuits
- Installation Speed: Tool-less module clamping reduces commissioning by 50%
- Lifecycle Economy: 20-year design service (2× industry standard)
Advanced system management:
- Redundant Power Backplane: Auto-load balancing for N+1 PSU configurations
- Dynamic Slot Mapping: Electronic Keying prevents incompatible module insertion
- Vibration Compensation: Isolator pads absorb 90% of 15g shock energy
- Diagnostic Monitoring: Slot-level voltage/current sensing (±1% accuracy)
- Cyber-Physical Security: Tamper-evident slot covers with intrusion logging
- Firmware Validation: Secure boot via 1756-L8x processors
- Compliance Logging: Stores installation metadata for audit trails
| Attribute | Specification |
|---|---|
| Product Series | ControlLogix® 1756 (Series B) |
| Chassis Type | 7-Slot Backplane |
| Slot Configuration | 1 Controller Slot + 6 I/O/Communication Slots |
| Backplane Bus | Parallel 32-bit (5V DC logic) |
| Data Transfer Rate | 40 MB/s maximum |
| Power Requirements | 1756-Px Power Supply (72W min) via integrated power connector |
| Power Distribution | • +5V DC: 14A max (distributed) • +24V DC: 1A aux (user-supplied) |
| Isolation | 1500V AC (field-to-logic) |
| Controller Compatibility | ControlLogix 556x, 557x, 1756-L7x series |
| Module Support | All 1756 I/O, Communication, and Specialty Modules |
| Redundancy Support | Yes (requires 1757-SRM modules) |
| Status Indicators | Power OK (green LED) |
| Connection Interface | VME-style card guides with positive latching |
| Material | Cold-rolled steel with zinc-nickel plating |
| Color | Rockwell Dark Gray (RAL 7016) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Relative Humidity | 5-95% non-condensing |
| Shock Resistance | 30g (11ms half-sine, IEC 60068-2-27) |
| Vibration Immunity | 5g @ 10-150Hz (IEC 60068-2-6) |
| Dimensions (H × W × D) | 318 mm × 194 mm × 135 mm (12.5 in × 7.64 in × 5.31 in) |
| Weight | 4.2 kg (9.26 lb) |
| Mounting | Panel or DIN rail (1756-HIM kit required) |
| Certifications | UL 508, CE, c-ULus, ATEX/IECEx Zone 2, Class I Div 2 |
| EMC Compliance | EN 61326-1, EN 61000-6-2, EN 61000-6-4 |
| Grounding | Dual-point chassis ground (M4 screws) |
