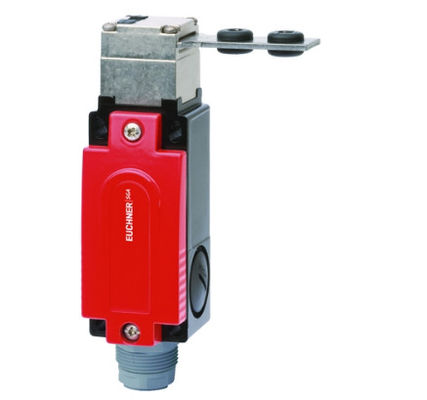

SGA2A-2121ASR11 Euchner Safety Gate Switch IP69K 24V DC Non Contact Advanced
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
SGA2A-2121ASR11 Euchner Safety Gate Switch
,IP69K SGA2A-2121ASR11 Euchner
,Advanced SGA2A-2121ASR11 Euchner
| Attribute | Value |
|---|---|
| Actuator Material | Plastic |
| Connection | PUR cable (two-core) |
| Switching Principle | Slow-action switching contact |
| Product No | EMP-B1 |
| Package | Package |
| Actuation Type | Direct |
| Mounting Type | Screw Mount |
| Product Type | Safety Switch |
The Euchner SGA2A-2121ASR11 is an advanced RFID-coded safety gate switch designed to safeguard access points in automated machinery. Featuring a non-contact actuator system with tamper-proof encoding, it delivers SIL 3/PLe safety integrity per ISO 13849-1. The compact stainless-steel housing (IP67/IP69K rated) withstands intense washdowns, oils, and vibrations in harsh environments like automotive plants or food processing lines. Its dual-channel RFID technology detects gate positions within ±1 mm accuracy, while the integrated ASR-11 dynamic code system prevents manipulation. The switch monitors gate closure status via two independently evaluated OSSD outputs, enabling immediate machine halt upon unauthorized access. With tool-free mounting and M12 connectors, it simplifies retrofitting into existing safety circuits.
Precision specifications ensure failsafe operation:
- Safety Rating: SIL 3 (IEC 61508), PL e (ISO 13849-1 Cat. 4).
- Operating Principle: RFID non-contact with 2121-coded tongue actuator.
- Switching Distance: 5-50 mm (adjustable via actuator positioning).
- Voltage Range: 24V DC (±15%) with reverse polarity protection.
- Outputs: 2 PNP OSSD safety signals (3A @ 30V DC).
- Response Time: ≤15 ms for safety signal deactivation.
- Ambient Temp.: -30°C to +85°C (operation), -40°C to +100°C (storage).
- Shock/Vibration: 100 m/s² shock (6 ms), 10g vibration (10-55 Hz).
- MTTFd: >100 years per EN ISO 13849-1.
- Connections: 4-pin M12 plug (materials: PBT thermoplastic + nickel-plated brass).
Deployed for access control in high-risk zones:
- Robotic Workcells: Halts robots instantly when guards open during automated welding/assembly.
- Packaging Machinery: Secures infeed chutes in pharmaceutical tablet press lines (GMP compliance).
- Plastic Injection Molding: Prevents mold access during 200°C+ cycles.
- Automotive Conveyors: Monitors maintenance gates in paint shops with solvent exposure.
- Metal Stamping Presses: Interlocks light curtains for multi-ton press brake protection.
Ideal for applications requiring hygienic design (EHEDG-compatible) or frequent access cycles (>2 million operations).
Superior to mechanical switches through:
- Manipulation Resistance: ASR-11 dynamic coding changes RFID signals per cycle (ISO 14119 Type 4 compliance).
- Zero Physical Wear: Non-contact sensing eliminates friction failures common in lever-style switches.
- Diagnostic Capabilities: Dual LEDs (green/red) indicate alignment, faults, or bypass attempts from 10m distance.
- Effortless Installation: Symmetrical design enables horizontal/vertical mounting; no wiring tools needed.
- CrossTalk Immunity: ≤5mm tolerance between adjacent switches prevents signal interference.
Reduces maintenance costs by 60% vs. mechanical alternatives while achieving ≤0.01% false-trip rates.
Advanced safety integration includes:
- Dynamic Code Verification: Actuator and base exchange encrypted RFID signals to confirm position identity.
- Floating Voltage Detection: Auto-identifies common 24V/48V DC safety controller inputs.
- Redundancy Monitoring: Two independent processor channels cross-check gate status at 5ms intervals.
- Self-Testing Logic: Continuous diagnostics for coil faults, wiring shorts, or voltage drops.
- Muting Function: PLC-controlled permissives (via auxiliary cables) allow timed access during automated sequences.
Seamlessly interfaces with safety relays (Pilz, Sick) and PLCs via DeviceNet™ or PROFIsafe protocols.
| Property | Value |
|---|---|
| Product Type | Safety Gate Actuator with Locking & Position Feedback |
| Model Code | SGA2A-2121ASR11 |
| Series | SGA (Safety Gate Actuator System) |
| Core Functions | Access control, position retention, safety interlocking |
| Safety Standards | ISO 13849-1, ISO 14119, IEC 62061, IEC 60947-5-1 |
| Safety Level | PL e (ISO 13849-1), SIL 3 (IEC 61508) |
| Locking Mechanism | Spring-assisted electromechanical bolt (fail-secure) |
| Position Detection | Dual-channel RFID sensing (ASR designation) |
| Voltage Rating | 24 V DC (±10%) |
| Power Consumption | 2.5 W (standby), 25 W (actuation) |
| Locking Force | 1,500 N (adjustable) |
| Release Time | ≤ 150 ms (de-energize to unlock) |
| Protection Rating | IP67 (actuator), IP69K (sensor head) |
| Housing Material | Anodized aluminum (body), stainless steel (bolt) |
| Operating Temperature | -25°C to +85°C |
| Connection Interface | M12 × 1, 8-pin connector (A-coded) |
| Feedback Signals | 2 PNP/NPN configurable outputs (position + lock status) |
| Electrical Life | 500,000 cycles (at rated load) |
| Mechanical Life | 1,000,000 cycles |
| Bolt Stroke | 21 mm (2121 in model code) |
| Dimensions (W×H×D) | 120 × 85 × 45 mm |
| Weight | 1.2 kg |
| Mounting | Front-flush (M8 fasteners), vertical/horizontal orientation |
| Diagnostics | Multi-color LED (lock state, position error, tamper alert) |
| Release Conditions | Configurable: machine standstill verification, time delay (0-30 s) |
| Coding Security | RFID encryption (128-bit) with >1012 unique codes |
| Certifications | CE, UL, TÜV SÜD, cULus, RoHS, IECEx |
| Compatibility | Euchner MGB gate boxes, CES-AP controllers |
