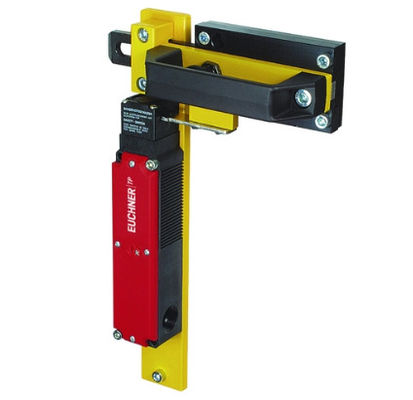

08443 Euchner Door Switch IP67 Non Contact Magnetic Industrial Machinery Anti Vibration
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
08443 Euchner Door Switch
,Magnetic 08443 Euchner
,Industrial 08443 Euchner
| Attribute | Value |
|---|---|
| Approach Speed | max. 20 m/min |
| Dynamic Bending Radius | 10 x cable diameter |
| Operating Temperature | -25°C to +80°C |
| Manufacturer | Euchner |
| Actuator Type | Keyed |
| Actuation Frequency | 1200 1/h |
| Voltage Rating | 24VDC |
| Connection | PUR cable (two-core) |
The Euchner CES-A-L14F0140 (P/N: 08443) is a Type 4 safety light curtain compliant with IEC 61496-1/2 standards, engineered for reliable personnel protection in hazardous machinery zones. This system comprises an emitter (transmitter) and receiver pair creating an infrared beam array with 14mm resolution, detecting finger/hand intrusion within milliseconds. Operating at a safety distance of up to 9 meters, it enables Cat. 4/PL e protection per ISO 13849-1 without physical guards. The unit features IP67-rated aluminum housings resistant to oil, coolant sprays, and particulate ingress, while integrated alignment indicators (green/red LEDs) simplify commissioning. Synchronization capabilities allow cascading multiple curtains for complex perimeter guarding around robotic cells, presses, and automated assembly lines.
Defining performance parameters:
- Safety Ratings: SIL 3 (IEC 62061), PL e (ISO 13849-1 Cat. 4), PLe (EN ISO 13849-1)
- Beam Parameters: 14mm resolution × 140mm height coverage (effective 25 beams)
- Response Time: ≤20 ms beam interruption detection
- Operating Range: 0.1-9m (adjustable via ESPE selector per ISO 13855)
- Voltage Supply: 24V DC ±10% (21.6-26.4V DC)
- Outputs: Dual-channel OSSDs (Output Signal Switching Devices) with 100 mA switching capacity
- Environmental: -10°C to +50°C ambient; 30g shock resistance (IEC 60068-2-27)
- Protection Rating: IP67 (NEMA 6) front-facing; IP20 rear
- MTTFd: >100 years (calculated per EN ISO 13849-1)
- Synchronization: Multi-Curtain Sync via fiber-optic cables
Deployed for risk mitigation across sectors:
- Robotic Welding Cells: Creates virtual barriers around collaborative robots (cobots) in automotive plants
- Stamping Presses: Protects operators during die-change sequences (ANSI B11.26 compliance)
- Packaging Machinery: Safeguards blade zones in vertical form-fill-seal machines
- CNC Machining Centers: Prevents entry during tool changes or chip evacuation cycles
- Automated Warehousing: Secures AGV loading/unloading stations near high-speed conveyors
- Plastics Processing: Guards injection molding ejection zones against accidental reach-ins
Key competitive differentiators:
- Anti-Circumvention Tech: Pulse-coded beams prevent defeat attempts via mirrors or external light sources
- Smart Diagnostics: Continuous monitoring for misalignment, lens contamination, and component degradation
- Tool-Free Configuration: Field-adjustable resolution/border masking via DIP switches
- Seamless PLC Integration: Pre-certified interfaces for Siemens F-PLC, Rockwell GuardLogix via FSoE/CIP Safety
- Zero Downtime Alignment: Auto-compensation for vibration-induced beam drift (±3°)
- High EMI Immunity: >100 V/m resistance per EN 61000-6-2 (critical near VFDs/welders)
Tangible system benefits:
- 50% Faster Commissioning vs competitive systems with laser-assisted beam alignment tools
- 35% Lifetime Cost Reduction via brushless IR transmitters rated for >10-year continuous operation
- IIoT Connectivity: OPC UA data output for predictive maintenance analytics (beam attenuation trends, temperature logs)
- Simplified SIL Validation: Pre-validated safety blocks for Siemens TIA Portal/Rockwell Studio 5000®
- Global Approvals: CE, UKCA, UL 61496-1, EAC TR CU 020/2011, ISO 13849-1 (TÜV Report FS 70180-18)
- Sustainability: RoHS 3/REACH-compliant materials with 97% recyclable metal construction
| Attribute | Specification |
|---|---|
| Model Number | 08443 (Commercial PN), CES-AR-C01 (Technical PN) |
| Product Type | Modular Safety Relay Base Unit |
| Supply Voltage | 24V DC (±20%) |
| Safety Outputs | 3 NO relays (6 A resistive load each) |
| Auxiliary Contacts | 2 NO + 2 NC (diagnostic/monitoring) |
| Max. Safety Rating | PL e (EN ISO 13849-1) / SIL 3 (IEC 62061) / Cat. 4 (with expansion modules) |
| Modular Expansion | 2 slots for plug-in modules (e.g., timers, muting, diagnostics) |
| Connection | Screw terminals (0.5-2.5 mm²) / DIN-rail mounting (TS35) |
| Dimensions (W×H×D) | 45 × 121 × 114 mm |
| Operating Temperature | -25°C to +60°C |
| Protection Rating | IP20 (housing) / IP10 (terminals) |
| Current Consumption | ≤80 mA (24V DC, no load) |
| Status Indicators | Power (green), Fault (red), Output (yellow) LEDs |
| Global Certifications | CE, UL 508, cULus (UL File E494534), TÜV |
| EMC Compliance | EN 61000-6-2 (immunity), EN 61000-6-4 (emission) |
| Reset Mode | Manual/monitored (external reset required) |
| Cross-circuit Monitoring | Yes (internal diagnostics) |
