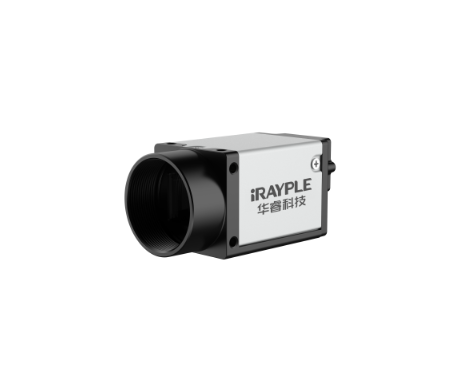

IRAYPLE AH7040MG001 Global-Shutter/GigE Monochrome High-Res Industrial Area-Scan Vision Camera
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Global-Shutter industrial monochrome camera
,GigE high-res area-scan camera
,Industrial vision camera with warranty
Product Overview and Key Specifications
The IRAYPLE AH7040MG001 is a high-performance, compact monochrome area scan camera from the APro series, specifically engineered for demanding industrial automation and machine vision applications . It features a Gigabit Ethernet (GigE) interface with Power over Ethernet (PoE) support, providing a 1 Gbps data bandwidth and a maximum transmission distance of up to 100 meters, which simplifies cabling and system integration . The camera is built around a Sony IMX297 1/2.9-inch CMOS global shutter sensor, delivering a resolution of 720 x 540 pixels (0.4 MP) at a frame rate of 123 fps, ensuring sharp image capture of fast-moving objects . Key technical parameters include a pixel size of 6.9 μm, a 10-bit output depth, a dynamic range of 60 dB, and a signal-to-noise ratio of 38 dB . It is equipped with a substantial 256MB on-board cache to handle high-speed data bursts and ensure reliable image transmission . The device supports versatile triggering modes (software, hardware, free-run) and offers a comprehensive C-mount lens interface . With a compact form factor of 29mm x 29mm x 42mm and an operating temperature range of 0°C to +50°C, it is designed for robust performance in industrial environments and carries major international certifications including CE, UKCA, UL, KC, and RoHS .
Primary Applications and Functional Advantages
This camera is designed for precision tasks in industrial automation, including high-speed inspection, robotic guidance, barcode reading, and electronic component assembly . Its primary advantage lies in its combination of a global shutter sensor, which eliminates motion blur, and a high-speed GigE interface, enabling reliable, long-distance connectivity for distributed vision systems . A significant functional benefit is its extensive suite of on-board Image Signal Processing (ISP) features, which includes gamma correction, lookup tables (LUT), black level correction, brightness/contrast adjustment, flat-field correction (FFC), denoising, and sharpening . These features allow for real-time image optimization directly within the camera, reducing the processing load on the host PC. The camera also supports advanced functionalities like Region of Interest (ROI), pixel binning (including arbitrary scaling), image mirroring, AutoFunction, lossless compression, and a Sequencer for automated parameter cycling . Compliance with the GigE Vision V2.0 protocol and GenICam standard ensures seamless integration with a wide range of machine vision software and platforms, making the AH7040MG001 a versatile and powerful solution for enhancing quality control and operational efficiency on the factory floor
Product Specifications: AH7040MG001 / AH7040MG001E
| Parameter Category | Specification Details |
|---|---|
| Model | AH7040MG001 / AH7040MG001E |
| Series | AH Series / APro Series Small Area Array Camera |
| Sensor | Sony IMX297, Global Shutter |
| Sensor Type | 1/2.9″ CMOS |
| Color / Mono | Mono |
| Resolution | 0.4 MP, 720 × 540 |
| Frame Rate | 123 fps (AH7040MG001) / 310 fps (AH7040MG001E) |
| Pixel Size | 6.9 μm × 6.9 μm |
| Dynamic Range | 60 dB (AH7040MG001) / 68.2 dB (AH7040MG001E) |
| Signal-to-Noise Ratio | 38 dB (AH7040MG001) / 39.9 dB (AH7040MG001E) |
| Bit Depth | 10 bit (AH7040MG001) / 12 bit (AH7040MG001E) |
| Image Formats | Mono8/10/10Packed (AH7040MG001) / Mono8/10/10Packed/Mono12/Mono12Packed (AH7040MG001E) |
| Exposure Time | 1 μs ~ 1 s / SE: 1 μs ~ 14 μs; UE: 15 μs ~ 10 sec (AH7040MG001E) |
| Gain | 1 ~ 32X |
| Gamma | Range 0 ~ 4, supports LUT |
| Data Interface | GigE (1 Gbps bandwidth), PoE |
| Lens Mount | C-mount |
| GPIO | 6-pin Hirose: 1x opto-isolated input, 1x opto-isolated output, 1x configurable I/O |
| Power Supply | PoE (IEEE 802.3af) or DC 9V ~ 24V via Hirose |
| Power Consumption | Approx. 3.5 W @12 VDC (AH7040MG001) / 2.4 W @12 VDC (AH7040MG001E) |
| On-board Cache | 128 MB (AH7040MG001) / 256 MB (AH7040MG001E) |
| Dimensions | 29 mm × 29 mm × 42 mm (excluding lens mount and rear case connector) |
| Weight | 88 g (AH7040MG001) / 98 g (AH7040MG001E) |
| Operating Temp. | 0℃ ~ +50℃ |
| Storage Temp. | -30℃ ~ +80℃ |
| Compatibility | GigE Vision V2.0, GenICam, CE, UKCA, UL, KC, RoHS |
| Key Features | ROI, Binning (including arbitrary scaling), X/Y Flip, SPC (Single Point Correction), Gamma Correction, LUT, Black Level Correction, FFC, Denoising, Sharpening, Auto Function, Compress, Sequencer |
