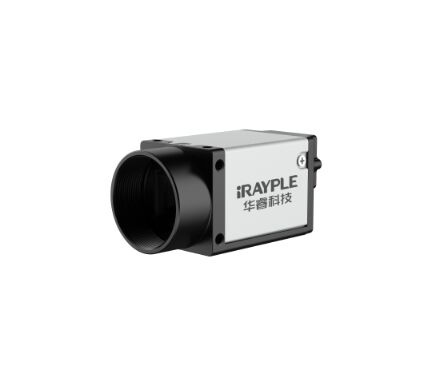

IRAYPLE AH7040MG001 1Gbps-GigE/FFC-Calibration Ind-Vision-Camera Large-Cache-Compat
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1Gbps GigE industrial vision camera
,FFC calibration vision camera
,large cache compatible industrial camera
The IRAYPLE AH7040CG001 is a high-performance, network-ready uncooled infrared camera core module engineered for reliable integration into industrial automation and machine vision systems. It features Gigabit Ethernet (GigE) interface with 1 Gbps data bandwidth and supports transmission distances up to 100 meters for flexible system architecture.
The core module delivers high-quality thermal imaging with excellent thermal sensitivity and competitive NETD for accurate temperature measurement. Key features include integrated thermoelectric cooler (TEC) for detector temperature stabilization, 256MB onboard cache for reliable data handling, and comprehensive on-board Image Signal Processing (ISP) functions.
The device is fully compliant with GigE Vision protocol and GenICam standard, and meets international certifications including CE, UKCA, UL, KC, and RoHS for global deployment.
This thermal imaging core is designed for demanding industrial applications requiring dependable, networked thermal data for automated analysis and control.
- 24/7 predictive maintenance for electrical and mechanical assets
- Automated optical inspection (AOI) in manufacturing
- Continuous process monitoring
- Thermal anomaly detection and early fault identification
Advantages include robust industrial network connectivity, powerful onboard ISP that reduces system complexity and latency, and real-time corrections including non-uniformity correction (NUC), flat-field correction (FFC), and noise reduction.
| Parameter Category | Specification Details |
|---|---|
| Model | AH7040CG001 / AH7040CG001E |
| Series | AH Series Small Area Array Camera |
| Sensor | Sony IMX297, Global Shutter |
| Resolution | 0.4 MP (720 × 540 / 720 × 520) |
| Sensor Type | 1/2.9" CMOS |
| Color/Mono | Color |
| Frame Rate | 125.2 fps @ Full Resolution |
| Pixel Size | 6.9 μm × 6.9 μm |
| Data Interface | GigE, PoE (1 Gbps bandwidth) |
| Lens Mount | C-mount |
| Image Formats | Mono8, Bayer RG 8/10/10Packed, YUV422_8_UYVY, RGB8, BGR8 |
| Bit Depth | 10 bit |
| Dynamic Range | 62.5 dB |
| Signal-to-Noise Ratio | 40 dB |
| Gain | 1 ~ 32X |
| Exposure Time | Ultra-short: 1 μs ~ 13 μs / Standard: 14 μs ~ 10 sec |
| GPIO | 6-pin Hirose: 1 opto-isolated input, 1 opto-isolated output, 1 configurable I/O |
| On-board Cache | 256 MB |
| Power Supply | PoE (IEEE 802.3af) or DC 9V~24V via Hirose |
| Power Consumption | Approx. 2.20 W @ 12 VDC (Typical) |
| Dimensions | 29 mm × 29 mm × 42 mm (excluding lens mount and rear case) |
| Weight | 98 g |
| Operating Temperature | -30℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Compatibility | GigE Vision V2.0, GenICam |
| Key Features | ROI, Binning, X/Y Flip, SPC, Gamma Correction, LUT, Sequencer, FFC, White Balance, CCM, multi-color temperature adjustment |
| Certifications | CE / UKCA / UL / KC / RoHS |
