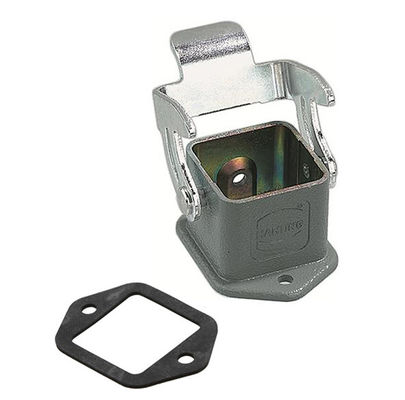

09200030301 Harting Industrial Connector Auto Stainless Rectangular Harting Han Connectors

09200030301 Harting Industrial Connector Auto Stainless Rectangular Harting Han Connectors

MOQ: 1
Price: USD 100-10000/Piece
Standard Packaging: 50*50*50mm
Delivery Period: 3-7
Payment Method: T/T
Supply Capacity: 1/piece in stock
Detail Information
Place of Origin
Germany
Brand Name
Harting
Certification
3C
Model Number
09200030301
Approvals:
DNV GL
Contact Material:
Copper Alloy
Termination Style:
Crimp, Screw, Solder
Certifications:
UL, CSA, VDE, CE
Pack Contents:
With Seal Screw
Product Type:
Connector
Gender:
Female
Ip Rating:
IP65, IP67, IP69K
Highlight:

09200030301 Harting Industrial Connector

,

Auto 09200030301 Harting

,

Stainless 09200030301 Harting

Product Description
09200030301 Harting Industrial Connector Auto Stainless Rectangular Harting Han Connectors
Product Overview

The HARTING 09200030301 is a modular connector from the Han® 3A series, designed for robust power, signal, and data transmission in industrial automation environments. Featuring a durable polyamide (PA) housing with IP65/67 protection, it resists dust, water, oils, and mechanical stress, ensuring reliability in harsh conditions.

The connector's modular design allows integration of power contacts (up to 16A), signal pins, and data modules (e.g., RJ45, USB) within a single compact housing. Its tool-free push-pull locking mechanism enables rapid installation and secure mating, making it ideal for applications such as motor control, robotics, and PLC systems.

Technical Specifications
Attribute Value
Approvals DNV GL
Contact Material Copper Alloy
Termination Style Crimp, Screw, Solder
Certifications UL, CSA, VDE, CE
Pack Contents With seal screw
Product Type Connector
Gender Female
Ip Rating IP65, IP67, IP69K
Performance Specifications
  • Rated Voltage/Current: 400V AC, 16A (per contact)
  • Contact Resistance: ≤2.5 mΩ (initial)
  • Insulation Resistance: ≥1,500 MΩ (500V DC)
  • Operating Temperature: -40°C to +125°C
  • Housing Material: PA (UL94 V0 flame-retardant)
  • Mating Cycles: ≥1,000 cycles (mechanical durability)
Industrial Applications

The 09200030301 is widely used in automated manufacturing lines for servo motor connections, sensor networks, and control cabinets. In robotics, it ensures stable power and real-time data transfer for actuators and vision systems.

Renewable energy applications include solar inverter interfaces and wind turbine control units, where its IP67 rating withstands outdoor exposure. Transportation sectors deploy it in electric vehicle charging stations and rail signaling systems.

Key Features
  • Hybrid Flexibility: Combines power, signal, and high-speed data in one connector
  • Tool-Free Assembly: Pre-assembled inserts and push-pull locking reduce installation time by 50%
  • Robust Design: Vibration-resistant PA housing and gold-plated contacts ensure longevity
  • Space Efficiency: Compact Han® 3A form factor saves panel space in control cabinets
  • Global Compliance: Meets UL, CSA, and ATEX standards for hazardous environments
