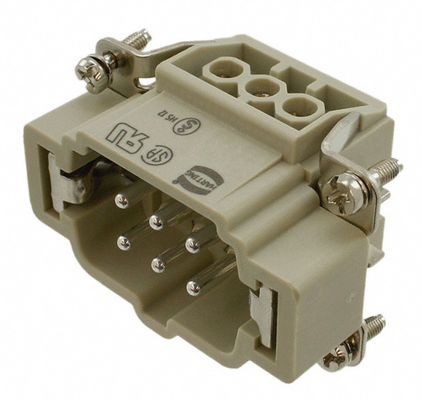

09330062601 Harting Electrical Connectors IP67 Waterproof Industrial Rugged High Current
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
09330062601 Harting Electrical Connectors
,IP67 09330062601 Harting
,High Current 09330062601 Harting
| Attribute | Value |
|---|---|
| Tightening Torque | 0.5 Nm |
| Manufacturer | Harting |
| Termination Method | Screw termination |
| Ambient Temperature | -20°C to +90°C |
| Limiting Temperature | 40 ... +125 °C |
| Cable Diameter | 7mm to 10mm |
| Product Type | Connector |
| Termination Style | Screw |
The HARTING 09330062601 is a high-performance industrial connector from the Han® 3A series, designed for robust power, signal, and data transmission in demanding automation environments. This modular connector features a compact, lightweight polyamide (PA) housing with IP65/67 protection, ensuring resistance to dust, water, oils, and mechanical stress.
- Rated Voltage/Current: 400V AC, 16A (per contact)
- Contact Resistance: ≤3 mΩ (initial)
- Insulation Resistance: ≥1,000 MΩ (500V DC)
- Operating Temperature: -40°C to +125°C
- Housing Material: PA (UL94 V0 flame-retardant)
- Protection Class: IP65/67 (mated), IP20 (unmated)
- Mating Cycles: ≥1,000 cycles (mechanical durability)
- Certifications: UL, CSA, CE, RoHS
The 09330062601 is widely used in factory automation for motor connections, servo drives, and conveyor systems. In robotics, it ensures reliable power and signal transmission for joint actuators and sensors. Renewable energy applications include solar inverter connections and wind turbine control cabinets, where its IP67 rating withstands outdoor exposure.
- Modular Flexibility: Mix power, signal, and data contacts in one housing
- Tool-Free Assembly: Pre-assembled inserts and push-pull mechanism reduce installation time by 50%
- Robust Design: Vibration-resistant PA housing and gold-plated contacts ensure long-term reliability
- Space-Saving: Compact Han® 3A form factor optimizes panel space in control cabinets
| Product Series | Han® Industrial Connector |
| Model Number | 09330062601 |
| Material | Polyamide (PA), UL 94 V0 Flame-Retardant |
| IP Rating | IP65 / IP67 (when fully assembled and mated) |
| Voltage Rating | Up to 630 V AC/DC |
| Current Rating | Up to 40 A per contact |
