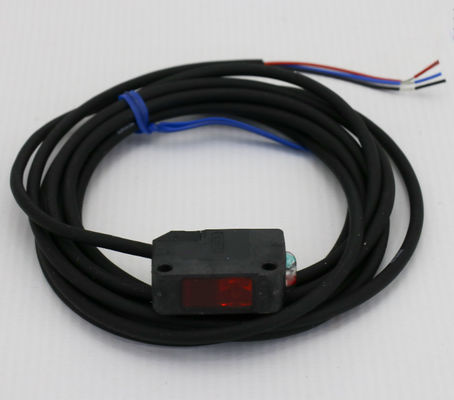

KEYENCE PZ2-42 Photoelectric Sensor | High-Precision | Industrial Auto
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
industrial keyence inspection system
,Industrial KEYENCE PZ2-42
,High Precision KEYENCE PZ2-42
| Attribute | Value |
|---|---|
| Power Consumption | 2.5 W |
| Unit Cell Size | 6.9 µm × 6.9 µm 0.27 Mil × 0.27 Mil |
| Operating Temperature | 0-50°C |
| Quality | 100% Original 100% Brand |
| Mounting Distance | 0 to 1500 mm 59.06 |
| Appearance | Rectangular |
| Manufacturer | KEYENCE |
| Output | NPN |
The KEYENCE PZ2-42 is a high-performance photoelectric sensor utilizing a diffuse-reflective short-range detection method. With a red LED light source, it offers a detection distance of 100 mm (for a 100 x 100 mm white mat paper), ensuring precise object detection. Boasting a maximum response time of 1 ms, it quickly reacts to changes, making it ideal for high-speed industrial automation processes. Whether detecting transparent or opaque objects, its advanced technology guarantees reliable performance, enhancing efficiency in production lines.
Engineered for durability, the PZ2-42 features an IP67 enclosure rating, resisting dust and water for operation in harsh environments. Its operating temperature range of -20 to +55°C (-4 to 131°F) ensures functionality in diverse conditions. Protection circuits against reversed polarity, overcurrent, and surge absorbance safeguard the sensor from damage. Constructed with glass-fiber reinforced plastic, it withstands vibrations (10-55 Hz) and shocks (1,000 m/s²), providing long-term reliability for industrial applications.
This sensor offers flexible operation with NPN or PNP control output (100 mA, 40 V max.), and light-on/dark-on modes (switch-selectable). A 1-turn trimmer (240°) allows easy sensitivity adjustment. Suitable for various industrial automation tasks, such as presence detection or part positioning, it ensures stable performance. With low current consumption (35 mA max.) and compatibility with 12-24 VDC power supply, the PZ2-42 integrates seamlessly into industrial systems, delivering efficient and accurate sensing solutions.
| Category | Specification |
|---|---|
| Model | PZ2-42 |
| Type | Diffuse-reflective short-range photoelectric sensor |
| Detection Distance | 100 mm (for 100 x 100 mm white mat paper) |
| Light Source | Red LED |
| Detectable Objects | Transparent and opaque materials |
| Hysteresis | ≤20% of detection distance |
| Sensitivity Adjustment | 1-turn trimmer (240° rotation) |
| Response Time | ≤1 ms |
| Operation Mode | Light-on/Dark-on (switch-selectable) |
| Indicator Lamp | Output and power: Red LED; Stable operation: Green LED |
| Control Output | NPN/PNP transistor open-collector, 100 mA max. (40 V), residual voltage: ≤1 V |
| Power Supply | 12-24 VDC ±10% (ripple ≤10%) |
| Current Consumption | ≤35 mA |
| Enclosure Rating | IP67 (dustproof and waterproof up to 1 m immersion for 30 minutes) |
| Ambient Temperature | -20 to +55°C (-4 to 131°F) |
| Relative Humidity | 35-85% RH (non-condensing) |
| Ambient Light | Incandescent lamp: ≤5,000 lux; sunlight: ≤20,000 lux |
| Vibration Resistance | 10-55 Hz, 1.5 mm double amplitude (2 hours in X, Y, Z directions) |
| Shock Resistance | 1,000 m/s² (6 shocks in X, Y, Z directions) |
| Case Material | Glass-fiber reinforced plastic (high durability) |
| Weight | Approximately 50 g (including 2-m cable) |
| Certifications | CE, RoHS (compliant with EU environmental standards) |
| Applications | Industrial automation, presence detection, part positioning, conveyor systems |
| Accessories | Mounting bracket, screws, and plate nut included |
