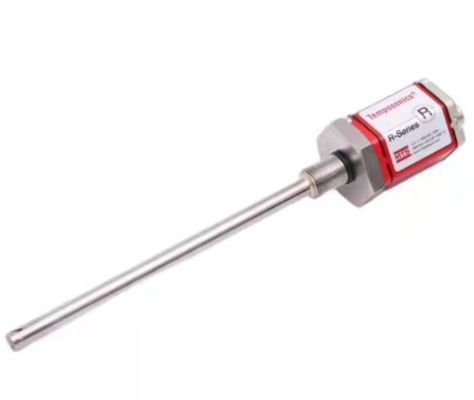

RHM0100MP021S1G8100 Temposonics R Series 100mm IP67 Non Contact Stainless Linear Sensor
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
RHM0100MP021S1G8100 Keyence Inspection System
,RHM0100MP021S1G8100 temposonics r series
,Keyence temposonics r series
| Attribute | Value |
|---|---|
| Appearance | Rectangular |
| Service | One-stop Service |
| Paper Box | Industrial Automation |
| Linearity | ±0.1 % of F.S. (±28 µm ±1.10 Mil)*4 |
| Transfer System | Digital serial transfer |
| Package | Package |
| Receiver Sensor | CMOS image sensor |
| Shape | Mini-slim |
The MTS RHM0100MP021S1G8100 is a high-precision magnetostrictive linear position transducer designed for industrial automation motion control. Utilizing MTS's Temposonics ® R-Series technology, it detects the absolute position of a magnetic collar along a 100mm-stroke stainless-steel sensing rod (suffix "0100") with micron-level repeatability. The "MP021S1G8100" configuration specifies an M18x1.5 threaded rod (MP), ±10V analog output (021), S1 electronics for enhanced EMC robustness, G-version housing (IP67), and 10-pin male connector (8100). Certified to ATEX/IECEx Zone 2 standards, its 316L stainless-steel construction withstands hydraulic fluids, shock loads (>50g), and temperatures from -40°C to +85°C.
Engineered for extreme industrial environments:
- Stroke Length: 100 mm (factory calibrated)
- Accuracy: ±0.01% FSO (full scale output)
- Repeatability: <0.001 mm
- Resolution: 1 μm (16-bit internal processing)
- Output Signal: ±10V linear analog, 0.1-2.5 kHz bandwidth
- Linearity: ±0.025% FSO typ. (EN 60751 compliant)
- Housing Material: 316L stainless steel (saltwater resistant)
- Pressure Rating: 250 bar (3626 psi) static | 10 bar dynamic
- Vibration Resistance: 20g @ 55-2000 Hz (IEC 60068-2-6)
- Response Time: 0.15 ms (typical)
- Supply Voltage: 18-30V DC (85 mA max)
- Connection: P16 male circular connector (IEC 61076-2-106)
- Safety Certifications: UL, CE, RoHS, REACH
Mission-critical position feedback scenarios:
- Hydraulic Systems: Cylinder position control in injection molding machines
- Test Stands: Material fatigue testing under ISO 6892 loading conditions
- Industrial Automation: Robotic arm joint angle verification (e.g., SCARA robots)
- Energy: Turbine blade pitch control in wind generators
- Metal Processing: Rolling mill gap measurement (ASTM E2309 compliance)
- Mobile Equipment: Excavator bucket tilt sensing (ISO 6015 validation)
Compatible with ferromagnetic fluids/pressures up to 3000 bar dynamic. Excludes explosive atmospheres beyond Zone 2.
Proprietary technology advantages:
- Zero Drift Technology: <0.002% FSO/°C thermal compensation
- Contactless Measurement: No mechanical wear (100 million cycle service life)
- True Absolute Position: Power-up without homing/reference run
- Intrinsically Safe Option: ATEX/IECEx Ex ia IIC T4 Ga approval (on request)
- Giant Magnetostrictive Effect: Immune to EMI/RFI interference (>100 V/m)
- Plug-and-Play Installation: Factory-calibrated; no end-user scaling
Features Advanced Diagnostics (ADx) protocol for predictive maintenance via digital output option.
Advanced motion control intelligence:
- Dynamic Error Correction: Auto-compensation for velocity-induced lag
- Multi-Magnetic Target Detection: Simultaneous tracking of 2 collars
- Diagnostic Outputs: Signal validity flag (<±7.5V range monitoring)
- Stroking Speed Tolerance: 20 m/s maximum
- Custom Scaling: Field-configurable via MTS TempoLink™ software
- Redundancy Support: Dual-output versions for SIL 2/PLe systems
- Overstroke Protection: Mechanical stop at 105% stroke length
Hardware-enabled EMC Immunity: Passes EN 61000-6-4 (industrial) & ISO 14982 (mobile) standards.
| Parameter Category / Specific Parameter | Value / Description |
|---|---|
| Product Line | MTS Temposonics® R-Series |
| Model Number | RHM0100MP021S1G8100 (Decoding: RH=Industrial Housing, M=Rod Style, 0100=100mm Stroke, MP=Analog & IO-Link, 021=Voltage & Current Outputs, S1=Standard Accuracy, G8100=Connector & Options) |
| Technology | Magnetostrictive (Non-Contact) |
| Primary Function | Absolute Linear Position Sensing |
| Stroke Length | 100 mm (0100) |
| Housing Style | Rod Style (External moving magnet, fixed sensor body) |
| Electrical Connection | M12 x 1, 8-pin male connector (G8100) |
| Output Signals | Dual Analog Outputs: - 1x Voltage Output (0-10 V DC) - 1x Current Output (4-20 mA) Plus: IO-Link v1.1 (COM2/COM3) Communication |
| Supply Voltage | 10 - 30 V DC |
| Current Consumption | ≤ 35 mA (excluding output load) |
| Accuracy | ±0.01% of Full Scale (FS) (Standard Accuracy - S1) |
| Resolution | Analog: Infinite (Continuous) IO-Link: 16-bit (Digital) |
| Repeatability | ±0.001% of FS |
| Linearity | ±0.01% of FS |
| Hysteresis | ≤ 0.001% of FS |
| Response Time | ≤ 1.0 ms (Analog Outputs) |
| Update Rate | 1.0 ms |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature Range | -40°C to +100°C (-40°F to +212°F) |
| Housing Material | Anodized Aluminum |
| Rod Material | Stainless Steel (Typically 17-4 PH or 316L) |
| Sealing / Protection Rating | IP67 (IEC 60529) / IP69K (DIN 40050-9) - Dust-tight & protected against high-pressure water jets |
| Pressure Rating | 350 bar (5076 psi) static |
| Shock Resistance | 100 g, 11 ms (IEC 60068-2-27) |
| Vibration Resistance | 20 g, 10 - 2000 Hz (IEC 60068-2-6) |
| EMC Compatibility | Complies with EN 61000-6-2 / EN 61000-6-4 (Industrial Immunity/Emission) |
| IO-Link Specifications | Version: 1.1 COM: COM2/COM3 (460.8 kbaud) Profile: IEC 61131-9 (SIO Mode Supported) Device ID: Identifiable via IO-Link Master Process Data: Position, Status, Temperature, etc. |
| MTTF (Mean Time To Failure) | > 150 years (Per IEC 62380, based on typical operating conditions) |
| Safety Certifications | CE (EMC & RoHS), UKCA, cULus Listed (UL 61010-1), EAC (TR CU 020/2011) |
| Functional Safety (SIL/PL) | Not inherently rated. Can be used in SIL 2 / PL d applications as part of a certified safety system (Requires external architectural assessment). |
| Warranty | Typically 36 months |
| Typical Applications | Hydraulic & Pneumatic Cylinders, Injection Molding Machines, Presses, Test Stands, Valve Positioning, Robotics. |
| Ordering Notes | Stroke length (0100=100mm), output configuration (MP021), accuracy (S1), and connector (G8100) are critical in the model number. Verify exact requirements. |
