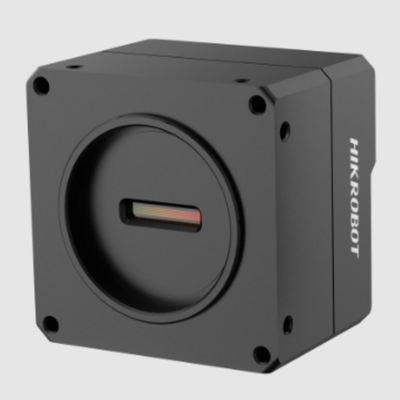

Hikrobot MV-CL024-91GM Line Capture Defect Detection Industrial Line Scan Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Hikrobot MV-CL024-91GM line scan camera
,industrial line scan camera defect detection
,line capture camera industrial inspection
The Hikrobot MV-CL024-91GM is a high-performance 2K monochrome line-scan camera built for demanding industrial inspection tasks. Featuring a CMOS sensor with 2048 × 2 resolution and 7 µm pixel size, it delivers line rates of up to 86 kHz in high-bandwidth mode and 58 kHz in standard mode. With a GigE interface, PoE support, and M42 lens mount, it is engineered for continuous, high-speed image acquisition in web inspection, print verification, label inspection, film measurement, and surface defect detection applications.
The MV-CL024-91GM is purpose-built to drive web surface inspection, print quality verification, label inspection, film measurement, and similar continuous-process applications. It supports advanced imaging features including TDI (Time Delay Integration), multiple trigger modes, LUT (Look-Up Table) processing, FFC (Flat Field Correction), and full GigE Vision / GenICam compliance for seamless integration into existing machine vision systems.
| Parameter | Specification |
|---|---|
| Model | MV-CL024-91GM |
| Sensor Type / Pixel Size | CMOS / 7 μm × 7 μm |
| Resolution | 2048 × 2 |
| Max. Line Rate | 86 kHz (High-Bandwidth Mode) / 58 kHz (Non-HB) |
| Dynamic Range / SNR | 68 dB / 44.7 dB |
| Data Interface | GigE (1000 Mbit/s), PoE supported |
| Lens Mount | M42 × 1.0, flange back 12 mm |
| Power Consumption | 5.2 W @ 12 VDC |
| Dimensions / Weight | 62 mm × 62 mm × 41 mm / Approx. 280 g |
| Protection / Operating Temp. | IP40 / -20 °C to 55 °C |
A: It is a 2K monochrome CMOS line scan camera designed for high-speed industrial inspection and continuous image acquisition.
A: The camera has a resolution of 2048 × 2 pixels and a pixel size of 7 × 7 μm.
A: The maximum line rate is 86 kHz in high-bandwidth Mono 8 mode. In standard mode, it supports up to 58 kHz in Mono 8. Actual performance depends on the pixel format and operating conditions.
A: It uses Gigabit Ethernet and supports 12–24 VDC power input as well as Power over Ethernet (PoE).
A: It uses an M42 × 1.0 lens mount with a 12 mm flange back distance. F-mount, C-mount, and other compatible lens types can be used with suitable adapters.
