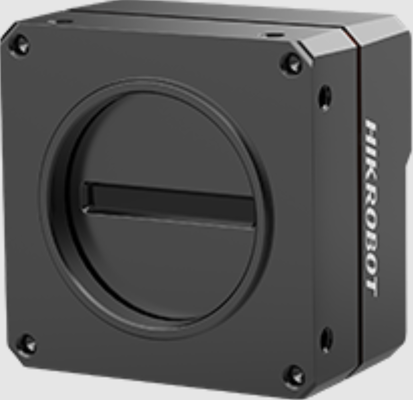

Hikrobot MV-CL022-91GM Line Capture Defect Detection Industrial Line Scan Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Hikrobot MV-CL022-91GM line scan camera
,industrial line scan camera defect detection
,line capture camera for inspection
Hikrobot 2K mono line-scan camera: CMOS 2048×1, 14 µm pixel size, 56/100 kHz line rate, GigE interface, M42 mount, 12–24 VDC with PoE support.
Designed for surface inspection, print and label verification, web inspection, measurement, and robot guidance applications. Features lossless compression, external trigger, LUT support, and full GigE Vision / GenICam compliance.
| Parameter | Specification |
|---|---|
| Model | MV-CL022-91GM |
| Sensor / Pixel Size | CMOS / 14 µm × 14 µm |
| Resolution | 2048 × 1 |
| Max. Line Rate | 56 kHz @ Mono 8 (Basic); 100 kHz @ Mono 8/10/12 (HB peak) |
| Dynamic Range / SNR | 63.4 dB / 39.4 dB |
| Data Interface | GigE (1000 Mbit/s), compatible with Fast Ethernet |
| Lens Mount | M42 × 1.0, flange back 12 mm (adapter rings available for F/C mount) |
| Power Supply / Consumption | 12–24 VDC, PoE supported / 5 W @ 12 VDC |
| Dimensions / Weight | 62 mm × 62 mm × 41 mm / Approx. 280 g |
| Protection / Operating Temp. | IP40 / -20 °C to 55 °C |
Q1: What type of camera is the Hikrobot MV-CL022-91GM?
A: It is a 2K monochrome CMOS line scan camera designed for high-speed industrial inspection and continuous material imaging.
Q2: What is the resolution of the MV-CL022-91GM?
A: It has a resolution of 2048 × 1 pixels and a pixel size of 14 × 14 μm.
Q3: What is the maximum line rate of this camera?
A: It reaches 56 kHz in standard Mono 8 mode and up to 100 kHz in high-bandwidth mode with Mono 8, Mono 10, or Mono 12 formats.
Q4: Which interface and power options does it support?
A: It uses Gigabit Ethernet and supports 12–24 VDC power input, including Power over Ethernet (PoE).
Q5: Which lens mount is compatible with this camera?
A: The camera uses an M42 × 1.0 lens mount with a 12 mm flange back distance. Compatible F-mount or C-mount lenses may be used with a suitable adapter.
