+GF+ 3-8150-P0 - TDS-Detect / Signal-Out - Stable Rugged TDS Transmitter
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Rugged TDS Transmitter
,Stable TDS Transmitter
,Signal-Out TDS Transmitter

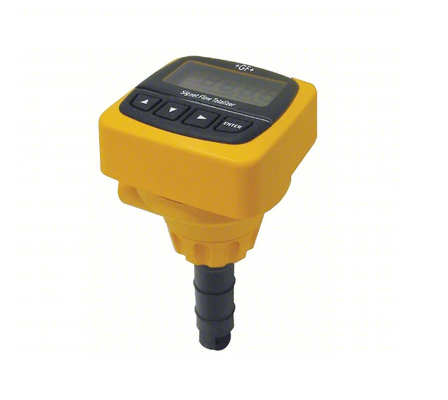

Integral‑Mount Battery‑Powered Flow Totalizer (Model 3‑8150‑P0)
The +GF+ Signet 3‑8150‑P0 is an integral‑mount, battery‑powered flow totalizer system supplied with a 515 paddlewheel insertion sensor (PP body / PVDF rotor / Ti pin) for ½–4″ pipe. Key parameters: accepts pulse input 1–400 Hz from 515/525 sensors, accuracy ±0.5% of reading, LCD showing flow rate + volume, and two 3.6 V lithium AA cells (nominal ≈4‑year life) in a NEMA 4X / IP65 enclosure.
Where It’s Used, What It Does, and Why It’s Chosen
Its core automation function is unattended, local flow‑rate indication and cumulative volume totalization—ideal for wastewater flow accumulation, irrigation, filtration/RO concentrate, process‑cooling loops, and remote sites without panel power. Advantages include no external power wiring, a security code to prevent tampering, Auto‑Cal (K‑factor entry), a no‑flow indicator, and display averaging—giving a low‑maintenance, audit‑friendly totalizer that can still allow remote reset where needed.
Product Specifications: GF Signet 3-8150-P0
| Parameter | Specification |
|---|---|
| Product Type | Battery-Powered Flow Totalizer (Integral Mount) |
| Compatible Sensors | Signet 515 & 525 Paddlewheel Flow Sensors |
| Display | 4-digit (flow rate) + 8-digit (totalizer) LCD |
| Totalizer Function | Three totalizers: 2 resettable (1 local, 1 code-protected) + 1 permanent |
| Accuracy | ±0.5% of reading |
| Input Frequency Range | 0 ~ 400 Hz |
| Power Supply | Two 3.6V AA-size Lithium Thionyl Chloride batteries |
| Battery Life | Up to 4 years (nominal @ 50°C) |
| Enclosure Rating | NEMA 4X / IP65 (100% sealed for field-mount units) |
| Operating Temp. | -10°C ~ 65°C (14°F ~ 149°F) |
| Housing Material | PBT Resin |
| Wetted Materials (Sensor) | PP/PVDF/Titanium/FKM |
| Compatible Pipe Sizes | 1/2" ~ 4" |
| Key Features | AutoCal Calibration, User-Selectable Security Code, No-Flow Indicator, Display Averaging |
| Compliance | CE, FCC, UL, CUL, RoHS, China RoHS |
