+GF+ 3-2450-7L - Flow-Measure / Feedback-Send - Stable Wearproof Flow Transmitter
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Wearproof Flow Transmitter
,Stable Wearproof Flow Transmitter
Corrosion-Resistant 4–20 mA Pressure Sensor for Aggressive Media

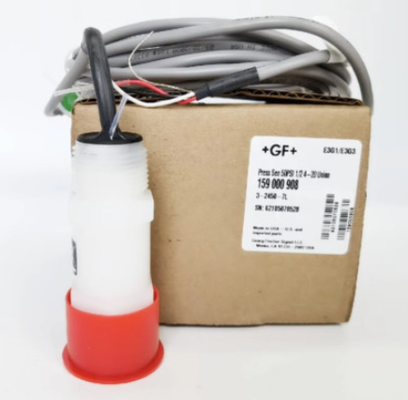

The +GF+ Signet 3‑2450‑7L is a gauge pressure sensor built for continuous liquid pressure and level monitoring in corrosive process environments. Its one‑piece injection‑molded PVDF housing and flush ceramic diaphragm (PTFE‑protected) deliver broad chemical compatibility where metal sensors fail. Key specs: 0–3.4 bar (0–50 psi) range, ±1% FS accuracy @ 25 °C, <100 ms response, 4–20 mA output @ 12–24 VDC, and a 4.6 m shielded 3‑conductor cable with ¾" NPT conduit entry and ½" male union process connection.
Automation Role — Where It's Used, Core Functions & Why It Wins
The sensor feeds a loop‑powered 4–20 mA signal directly into a PLC/DCS analog input (or Signet 8450/8900 transmitter/controller) to enable pump‑protection interlocks, tank level control, pressure‑regulation loops, and high/low alarm logic without extra signal conditioning. Typical use cases include wastewater lift stations, chemical dosing skids, scrubber & HVAC systems, irrigation controls, and corrosive liquid transfer — anywhere metallic sensors corrode prematurely. The all‑PVDF/ceramic wetted path, drift‑free solid‑state circuitry, built‑in temperature compensation, and NEMA 4X/IP65 field‑mountability make it a low‑maintenance, audit‑friendly choice for 24/7 operation.
Product Specifications: +GF+ Signet 2450 Pressure Sensor, 3-2450-7L
| Parameter | Specification |
|---|---|
| Product Type | Pressure / Level Sensor |
| Key Features | PVDF body, flush ceramic diaphragm, built-in temperature compensation, solid-state circuitry (no potentiometers) |
| Pressure Range | 0 to 50 psi (0 to 3.4 bar) |
| Output Signal | 4 to 20 mA (Analog, factory-span 0-50 psig) |
| Level Measurement Range (Water) | 0 to 35.15 m (0 to 115.32 ft) — based on water S.G., varies for other liquids |
| Accuracy | ±1% of full scale @ 25°C |
| Response Time | < 100 ms |
| Process Connection | ½ in. male union threaded (requires end connector and nut) |
| Wetted Materials | PVDF (body), Ceramic (diaphragm), FPM (seal) |
| Operating Temperature | 0°C to 85°C (32°F to 185°F) — refer to derating curves for high pressure/temp |
| Standard Cable Length | 4.6 m (15 ft), PVC-jacketed, 3-conductor shielded (extension possible via junction box) |
| Ingress Protection | NEMA 4X / IP65 when used with optional 3-8052-1 junction box |
