+GF+ 3-8050-2 - Cond-Sense / Signal-Out - Precise Rugged Conductivity Transmitter
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Rugged Conductivity Transmitter
,Precise Conductivity Transmitter
Junction Box with EasyCal® for pH/ORP Sensor Electronics
The +GF+ Signet 3‑8050‑2 is a junction box / wiring chamber with the patented EasyCal® access port, designed to house and terminate pH/ORP smart sensor electronics (such as the 3‑2751 series) when a 4–20 mA analog loop output is required instead of digital S³L. It mounts via the 3‑8050 universal mounting base system for field installation on pipes, walls, or tank surfaces. Key attributes include a transparent NEMA 4X / IP65‑rated enclosure with conduit knockouts, barrier terminal strips for loop wiring, and a sealed EasyCal port that lets technicians trigger calibration without opening the lid or pulling the sensor from the process.
Where It's Used, Automation Role & Core Advantage
Its core function is to serve as the local termination and calibration access point in a pH/ORP loop—converting the smart sensor's conditioned signal into a plant-standard 4–20 mA that feeds directly into a PLC/DCS analog input, while keeping the electronics protected in harsh, washdown, or outdoor environments. Typical use cases include wastewater neutralization, scrubber pH control, chemical dosing skids, effluent monitoring, and swimming-pool/water-park treatment where sensors are submerged or inline and frequent calibration is required. The EasyCal advantage means less downtime: you perform two-point calibration through the sealed port, maintaining the NEMA 4X seal integrity and avoiding exposure of sensitive electronics—critical for compliance-driven and 24/7 processes.
Product Specifications: +GF+ Signet 3-8050-2
| Parameter | Specification |
|---|---|
| Product Type | Universal Mount Junction Box for pH/ORP sensors |
| Manufacturer Part No. | 3-8050-2 (Code: 159 000 754) |
| Key Differentiator | Includes an integrated EasyCal board for simple, push-button calibration |
| Wiring & Connectivity | Contains two terminal blocks to enable cable extension from sensors |
| Mounting Options | Versatile kit that mounts securely onto a wall, pipe, or tank |

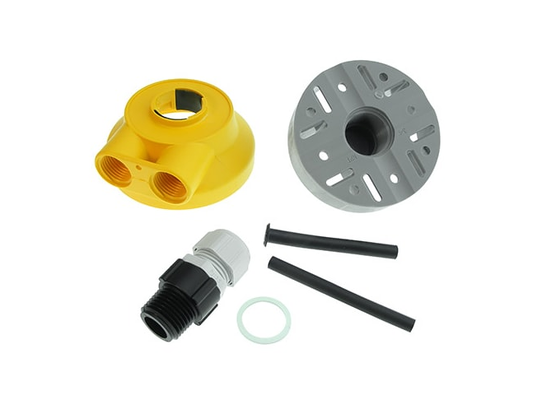

| Included Components | Top cover, transmitter base, universal mounting plate, bracket, liquid tight connector kit |
| Compatible Sensors | Specifically designed for Signet 2751-1, 2751-3, 2751-4 pH/ORP electrodes |
| Approx. Dimensions (HxW) | Height: 84 mm (2.5 in) / Width: 92 mm (3.24 in) |
| Kit Function | Converts a panel-mount transmitter into a field-mount device |
| Distinguishing Feature | Specialized for pH/ORP and cannot be used with other sensor types (e.g., flow) |
