+GF+ 3-9900.397 - Calibrate / Monitor Reliable Compact Water Analyzer
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Reliable 3-9900.397 Water Analyzer
,Calibrate 3-9900.397 Water Analyzer
,Monitor 3-9900.397 Water Analyzer
Batch Control Expansion Module for Signet 9900 Transmitter

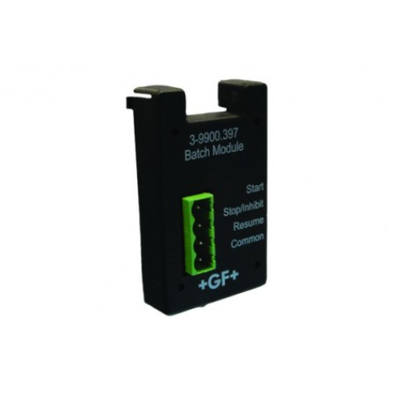

The +GF+ Signet 3‑9900.397 is a plug-in Batch Module (accessory board, Part No. 159 310 163) that converts a Signet 3‑9900‑1P panel-mount transmitter (Generation II or later) into a programmable Batch Controller System (9900‑1BC). Key operational parameters include storage for up to 10 batch sizes with customizable batch names and individual K‑factors, compatibility with all Signet flow sensors, and screw‑secured card-edge installation into the 9900 chassis alongside the required 3‑9900.393 Relay Module. Its terminal interface exposes Start / Stop (Inhibit) / Resume / Common connections for customer-supplied external pushbuttons or keypads.
Where It's Used, Automation Role, and Key Advantages
Its core automation function is precision volume/batch control—starting a flow meter totalizer run, driving a pump or valve via relay, and stopping automatically at the preset volume. Typical uses include chemical dosing batches, tank filling, CIP solution make-up, and reagent delivery where overfill prevention and repeatable batch records matter. Advantages are no code rewrite: the 9900's existing flow-input chain (paddlewheel, magmeter, etc.) is retained, while the Batch Module adds deterministic batch logic, external operator controls, and recipe storage. Firmware compatibility checks (via the OPTIONS menu) and ESD-safe handling ensure safe retrofit into live panels.
Product Specifications: +GF+ Signet 3-9900.397 Batch Module
| Parameter | Specification |
|---|---|
| Product Type | Batch Module (Batch Control Upgrade) |
| Compatible Base Unit | Signet 3‑9900‑1P Panel Mount Transmitter (Generation II or greater) |
| Core Function | Adds batch control and dosing capabilities to the 9900 transmitter |
| Storage Capacity | Up to 10 batch sizes per controller (with customizable names and K‑Factors) |
| Control Input | External start/stop/resume/inhibit buttons (dry‑contact) |
| Batch Counter | Integrated batch counter for real‑time tallying |
| Requires Relay Module | Must be used with a 3‑9900.393 Relay Module for valve/actuator control |
| Minimum Software Version | 9900‑1P firmware version 25‑04 or later |
| Installation Site | Installed at the same module slot as 4‑20 mA Output and Direct Conductivity Modules (only one per base unit) |
| Manufacturer Part No. | 3‑9900.397 (Code: 159 310 163) |
