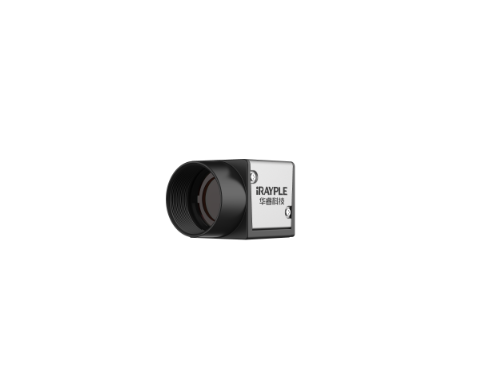

IRAYPLE A5051MU545 - USB3.0/Mono-Grab - Wide Temp Industrial Area Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
The IRAYPLE A5051MU545 is a compact monochrome area scan camera designed for high-speed industrial machine vision applications. It features a 0.5MP (800×600) resolution with a 1/3.6-inch PYTHON 500 global shutter CMOS sensor, achieving an impressive frame rate of 545 fps.
Key parameters include a 4.8 μm pixel size, 10-bit depth, >38 dB SNR, and 60 dB dynamic range. This camera is primarily used for high-speed barcode reading, precision defect detection, logistics sorting, and medical imaging.
This camera offers a high-speed USB3.0 interface with 5Gbps theoretical bandwidth and power supply via USB. It includes 128MB onboard cache for reliable burst-mode data transfer and supports software, hardware, and free-run trigger modes.
Major advantages are its ultra-compact 29×29×29mm design, wide operating temperature range (-30°C to +50°C), and compliance with USB3 Vision and GenICam standards. Advanced ISP functions like sharpness, noise reduction, gamma correction, LUT, and ROI ensure superior image quality for demanding industrial environments.
| Parameter | Specification |
|---|---|
| Sensor | PYTHON 500 CMOS, Global Shutter |
| Sensor Size | 1/3.6″ |
| Resolution | 800 (H) × 600 (V), 0.5 MP |
| Pixel Size | 4.8 μm × 4.8 μm |
| Max. Frame Rate | 545 fps |
| Data Interface | USB 3.0 (5 Gbps bandwidth) |
| Mono / Color | Mono |
| Lens Mount | C-Mount |
| Dynamic Range / SNR | 60 dB / >38 dB |
| Power Consumption | ≈3.4 W (12 VDC) |
| Dimensions / Weight | 29 mm × 29 mm × 29 mm / 60 g |
| Operating Temp. | -30℃ ~ +50℃ |
