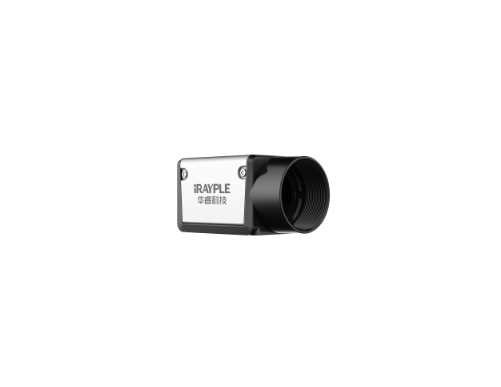

IRAYPLE A5051MG200 - USB3.0/Global-Shutter - Low Noise Mono Industrial Area Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
High-Speed Monochrome GigE Area Scan Camera
The IRAYPLE A5051MG200 is a compact monochrome area scan camera designed for industrial machine vision applications . It features a 0.5MP (800×600) resolution with a 1/3.6-inch PYTHON 500 global shutter CMOS sensor, achieving a high frame rate of 200 fps . Key parameters include a 4.8 μm pixel size, 10-bit depth, >38 dB SNR, and 60 dB dynamic range . This camera is primarily used for barcode reading, defect detection, logistics, and medical imaging in automated systems .
Robust Design with Advanced Imaging Features
This camera offers a Gigabit Ethernet interface with Power over Ethernet (PoE) support, providing 1 Gbps bandwidth and transmission distances up to 100 meters . It includes 256MB onboard cache for reliable burst-mode data transfer and supports software, hardware, and free-run trigger modes . Major advantages are its compact 29×29×42mm design, wide operating temperature range (-30°C to +50°C), and compliance with GigE Vision V2.0 and GenICam standards . Advanced ISP functions like sharpness, noise reduction, gamma correction, LUT, ROI, and binning ensure superior image quality for demanding industrial environments .
Product Specifications: A5051MG200 / A5051MG200E
| Parameter | Specification |
|---|---|
| Model | A5051MG200 / A5051MG200E |
| Sensor | PYTHON 500 CMOS, Global Shutter |
| Resolution | 800 (H) × 600 (V) (0.5 MP) |
| Frame Rate | 200 fps |
| Pixel Size | 4.8 μm × 4.8 μm |
| Output | Mono (Monochrome) |
| Data Interface | GigE (1 Gbps bandwidth), PoE |
| Lens Mount | C-Mount |
| Operating / Storage Temp. | -30℃ ~ +50℃ / -30℃ ~ +80℃ |
| Dimensions / Weight | 29 mm × 29 mm × 42 mm / 88 g |
