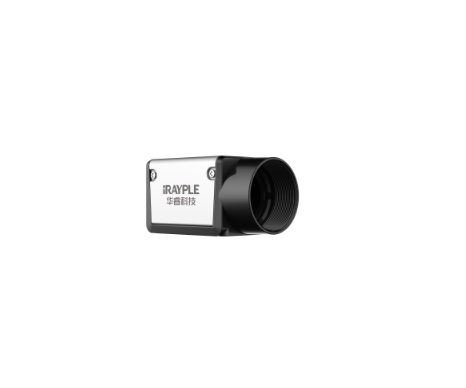

IRAYPLE A5031MG300 - USB3.0/Global-Shutter - Portable Mono Industrial Area Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
The IRAYPLE A5031MG300 is a compact monochrome area scan camera featuring a 1/4-inch PYTHON 300 CMOS global shutter sensor with 640x480 resolution (0.3MP) and 300 fps frame rate. Key specifications include 10-bit depth, 4.8μm pixel size, GigE PoE interface with 1Gbps bandwidth, and a small 29×29×42mm form factor weighing 88g. This camera is designed for high-speed machine vision applications requiring precise monochrome imaging.
This camera excels in code reading, defect detection, logistics, and medical imaging applications. Its advantages include 256MB onboard cache for burst data transmission, compliance with GigE Vision V2.0 and GenICam standards, and reliable operation from -30°C to +50°C. Key functionalities encompass software/hardware/free-run trigger modes, ROI, binning, mirroring, and advanced ISP features like sharpness, noise reduction, and gamma correction.
| Parameter | Specification |
|---|---|
| Sensor | PYTHON 300, Global Shutter |
| Resolution | 640 (H) × 480 (V) (0.3 MP) |
| Pixel Size | 4.8 µm × 4.8 µm |
| Frame Rate | 300 fps |
| Mono / Color | Mono |
| Dynamic Range / SNR | 60 dB / >38 dB |
| Data Interface | GigE (1 Gbps), PoE |
| Lens Mount | C-mount |
| Power Consumption | ≈3.2 W (12 VDC) |
| Operating / Storage Temp. | -30℃ ~ +50℃ / -30℃ ~ +80℃ |
| Dimensions (W×H×D) | 29 mm × 29 mm × 42 mm (excl. lens mount & rear case connector) |
| Weight | 88 g |
