IRAYPLE AB7200MU000 - GigE/Mono-Capture - Precise Industrial Vision Area Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
GigE industrial vision camera
,Mono-capture area camera
,Precise industrial camera

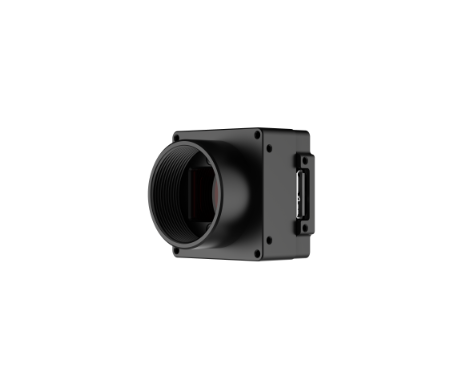

The IRAYPLE AB7200MU000 is a 2.3-megapixel monochrome area scan board-level camera designed for high-speed industrial machine vision applications. It features a 1/1.2-inch Sony IMX174 CMOS sensor with a global shutter, delivering 1920 x 1200 resolution at 164 fps. Key specifications include a 5.86 μm pixel size, 10-bit depth, >38 dB SNR, and >70 dB dynamic range. Its compact design (35x35x19mm) and USB 3.0 interface make it ideal for space-constrained automation systems requiring high-resolution monochrome imaging.
This camera integrates comprehensive Image Signal Processing (ISP) functions including sharpness, noise reduction, gamma correction, LUT, and black level correction. It supports software/hardware/free-run trigger modes, ROI, binning, mirroring, and features 64MB onboard cache for reliable data transmission. Compliant with USB3 Vision and GenICam standards, it is perfect for automated optical inspection (AOI), electronics manufacturing, and quality control in industrial environments from -30°C to +50°C.
| Parameter | Specification |
|---|---|
| Model | AB7200MU000 / AB7200MU000E |
| Sensor | Sony IMX174, Global Shutter |
| Sensor Type | 1/1.2" CMOS |
| Resolution | 1920 × 1200 (2.3 MP) |
| Frame Rate | 164 fps |
| Pixel Size | 5.86 μm × 5.86 μm |
| Mono / Color | Mono |
| Dynamic Range / SNR | >70 dB / >38 dB |
| Data Interface | USB 3.0, 5 Gbps bandwidth |
| Lens Mount | C-mount |
| Power Consumption | ≈2.8 W (5.0V/900mA via USB 3.0) |
| Dimensions (W×H×D) | 35 mm × 35 mm × 19 mm (excluding lens mount) |
| Weight | 68 g |
