IRAYPLE AB7200MU102 - GigE/Low-Noise - High Resolution Industrial Area Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
GigE industrial area camera
,low-noise high resolution camera
,industrial camera with warranty

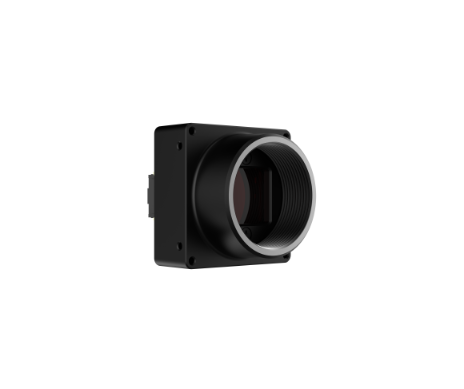

The IRAYPLE AB7200MU102 is a 2.3-megapixel monochrome area scan board-level camera designed for industrial machine vision applications. It features a 1/1.2-inch Sony IMX174 CMOS sensor with a global shutter, delivering 1920 x 1200 resolution at 164 fps.
Key specifications include a 5.86 μm pixel size, 10-bit depth, >38 dB SNR, and >70 dB dynamic range. Its compact design (35x35x31mm) and USB 3.0 interface make it ideal for high-precision inspection and measurement tasks.
This camera integrates comprehensive Image Signal Processing (ISP) functions including:
- Sharpness enhancement
- Noise reduction
- Gamma correction
- LUT (Look-Up Table)
- Black level correction
It supports software/hardware/free-run trigger modes, ROI, binning, mirroring, and features 64MB onboard cache for reliable data transmission. Compliant with USB3 Vision and GenICam standards, it is perfect for automated optical inspection (AOI), electronics manufacturing, and quality control.
Its robust design ensures reliable operation in harsh industrial environments from -30°C to +50°C.
| Parameter | Specification |
|---|---|
| Model | AB7200MU102 / AB7200MU102E |
| Sensor | Sony IMX174, Global Shutter |
| Sensor Type | 1/1.2" CMOS |
| Resolution | 1920 (H) × 1200 (V) (2.3 MP) |
| Max. Frame Rate | 164 fps |
| Pixel Size | 5.86 µm × 5.86 µm |
| Mono / Color | Mono |
| Signal-to-Noise Ratio | >38 dB |
| Dynamic Range | >70 dB |
| Data Interface | USB 3.0 (5 Gbps) |
| Lens Mount | C-Mount |
| Power Supply | USB 3.0 interface (5.0V/900mA) |
| Power Consumption | ≈2.8 W |
| Dimensions (W×H×D) | 35 mm × 35 mm × 31 mm (excluding lens mount) |
| Weight | 50 g |
