IRAYPLE AB7160MU000 - GigE/Mono-Acquire - High Definition Industrial Area Camera
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
GigE industrial area camera
,monochrome industrial camera
,high definition area camera

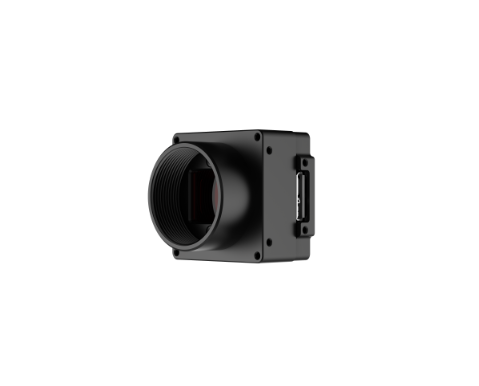

The IRAYPLE AB7160MU000 is a compact 1.6-megapixel monochrome area scan board-level camera designed for high-speed industrial automation. It features a 1/2.9-inch Sony IMX273 CMOS sensor with a global shutter, delivering 1440 x 1080 resolution at 249 fps. Key specifications include a 3.45 μm pixel size, 12-bit depth, >38 dB SNR, and >70 dB dynamic range. Its ultra-compact design (35x35x19mm) and USB 3.0 interface make it ideal for space-constrained machine vision applications requiring high-speed monochrome imaging.
This camera integrates comprehensive Image Signal Processing (ISP) functions including sharpness, noise reduction, gamma correction, LUT, and black level correction. It supports software/hardware/free-run trigger modes, ROI, binning, mirroring, and features 64MB onboard cache for burst data transmission. Compliant with USB3 Vision and GenICam standards, it is perfect for automated optical inspection (AOI), electronics assembly, and precision measurement. Its robust design ensures reliable operation in harsh industrial environments from -30°C to +50°C.
| Model | AB7160MU000 |
|---|---|
| Series | AB Series |
| Sensor | Sony IMX273, Global Shutter |
| Resolution | 1440 (H) × 1080 (V), 1.6 MP |
| Frame Rate | 249 fps |
| Pixel Size | 3.45 µm × 3.45 µm |
| Data Interface | USB 3.0 (5 Gbps bandwidth) |
| Lens Mount | C-mount |
| Power Supply | USB 3.0 interface, 5.0V/900mA |
| Dimensions | 35 mm × 35 mm × 19 mm (excl. lens mount) |
| Weight | 68 g |
