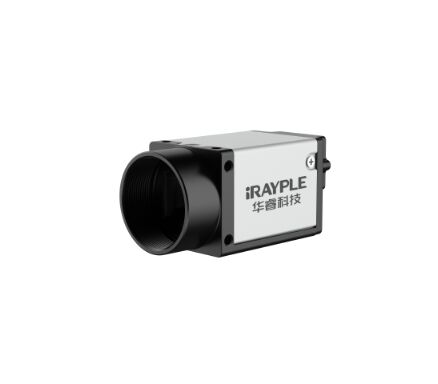

IRAYPLE AH7040MG001 1Gbps-GigE/FFC-Calibration Ind-Vision-Camera Large-Cache-Compat
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
IRAYPLE GigE vision camera
,1Gbps industrial vision camera
,FFC calibration compatible camera
The IRAYPLE AH7040MG001 is a high-performance, network-ready uncooled microbolometer infrared camera core module engineered for advanced industrial automation and machine vision applications. It features a standard Gigabit Ethernet (GigE) interface providing 1 Gbps bandwidth and supporting cable runs up to 100 meters, enabling flexible system architecture. The core delivers high-quality thermal imaging with excellent thermal sensitivity and incorporates a thermoelectric cooler (TEC) for precise detector temperature stabilization. Key features include 256MB onboard cache, multiple trigger modes, and comprehensive on-board Image Signal Processing (ISP) functions. The module is fully compliant with GigE Vision protocol and GenICam standard, carrying CE, UKCA, UL, KC, and RoHS certifications.
This thermal imaging core is designed for demanding industrial applications requiring reliable, networked thermal data for automated analysis. Primary uses include 24/7 predictive maintenance for electrical and mechanical systems, automated quality inspection (AOI) in manufacturing, and continuous process monitoring. The integrated ISP engine performs real-time corrections and enhancements—such as non-uniformity correction (NUC), flat-field correction (FFC), and noise reduction—delivering calibrated, analysis-ready video streams. As a smart sensor node, it feeds critical thermal data into Industrial IoT (IIoT) platforms and control systems, enhancing operational intelligence, safety, and efficiency in smart factory environments.
| Model | AH7040MG001 |
|---|---|
| Series | AH Series Small Area Array Camera |
| Sensor | Sony IMX297 |
| Sensor Type | 1/2.9" CMOS |
| Shutter Type | Global |
| Color / Mono | Mono |
| Resolution | 0.4 MP (720 × 540) |
| Pixel Size | 6.9 μm × 6.9 μm |
| Frame Rate | 123 fps |
| Data Interface | GigE, PoE (1Gbps) |
| Lens Mount | C-mount |
| Image Formats | Mono8, Mono10, Mono10Packed |
| Bit Depth | 10 bit |
| Gain | 1 ~ 32X |
| Exposure Time | 1 μs ~ 1 s |
| Dynamic Range | 60 dB |
| Signal-to-Noise Ratio | 38 dB |
| GPIO | 6-core Hirose: 1 opto-isolated input, 1 opto-isolated output, 1 configurable I/O (non-isolated) |
| Power Supply | PoE (IEEE 802.3af) or DC 9V~24V via Hirose |
| Power Consumption | Approx. 3.5 W @12V |
| On-board Cache | 128 MB |
| Dimensions | 29 mm × 29 mm × 42 mm (excluding lens mount) |
| Weight | 88 g |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Compatibility | GigE Vision V2.0, GenICam, CE, UKCA, UL, KC, RoHS |
- ROI (Region of Interest)
- Binning
- X/Y Flip
- SPC
- Gamma Correction
- LUT (Look-Up Table)
- Black Level Correction
- FFC (Flat Field Correction)
- Sequencer
- Lossless Compression
