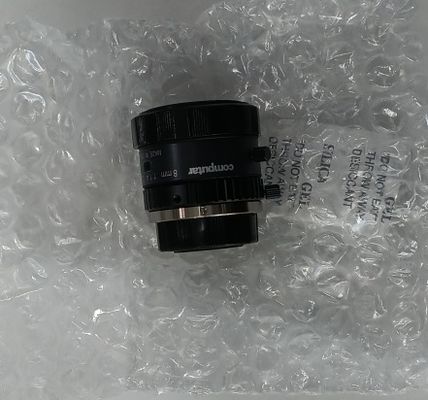

MO814-MP2 - 8mm F1.4 2MP Industrial Lens - Metal Housing Machine Vision Inspection
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1. Product Overview
The Computar MO814-MP2 is a high-performance machine vision lens engineered for precision imaging in industrial automation applications. Featuring an 8mm fixed focal length with F1.4 to F16 adjustable aperture, this lens delivers exceptional clarity for 2/3" sensors (11mm diagonal). Its rugged all-metal housing incorporates motorized focus and iris control (MP2 suffix), enabling remote adjustment via PLC or vision software without physical intervention. Designed for harsh environments, the lens features IP67-rated sealing against dust and moisture, with an operational temperature range of -10°C to +50°C. The multi-layer nano-coating minimizes flare and ghosting while maximizing light transmission (>95% at 550nm). Compatible with C-mount interfaces, it supports high-resolution sensors up to 5MP with near-zero distortion (<0.1%), making it ideal for metrology, inspection, and robotic guidance systems.
2. Key Technical Parameters
- Focal Length: 8mm fixed
- Aperture Range: F1.4–F16 (motorized control)
- Sensor Format: 2/3" (11mm diagonal)
- Resolution: Supports 5MP sensors (2448×2048)
- Optical Performance:
- Distortion: <0.1% (TV distortion)
- MTF: >80% @ 80 lp/mm center
- Close Focus: 0.1m (WD=100mm)
- Mechanical:
- Focus/Iris Control: DC servo motors (12–24V)
- Filter Thread: M34.5×0.5
- Dimensions: Ø40×60mm
- Environmental:
- IP67 sealing (IEC 60529)
- Vibration: 10G (IEC 60068-2-6)
- Shock: 70G (IEC 60068-2-27)
- Compatibility:
- GigE/USB3 cameras
- GenICam, PLC I/O control
3. Primary Applications
This lens excels in demanding industrial scenarios:
- Electronics Assembly:
- PCB component alignment (0201 chip inspection)
- Solder joint quality verification
- Automated Metrology:
- Micron-level dimensional gauging
- Surface defect detection (scratches <5μm)
- Pharmaceutical Packaging:
- Blister pack seal integrity inspection
- Label OCR/2D code verification
- Robotic Guidance:
- Precision part positioning (±0.05mm)
- Bin picking in high-vibration environments
- Automotive Manufacturing:
- Connector pin inspection
- Laser weld seam analysis
- Food Processing:
- Fill-level control in bottling lines
- Foreign object detection (≥50μm)
- Print Inspection:
- Color registration accuracy
- Micro-text legibility verification
4. Product Advantages
- Precision Imaging:
- Diffraction-limited optics for <2μm resolution
- Telecentric optimization (±0.02° FOV error)
- Automation Integration:
- RS-485/M12 control interfaces
- <100ms focus adjustment time
- Durability Features:
- Stainless steel barrel with anti-corrosion coating
- Hermetic sealing (-30kPa pressure tested)
- Optical Superiority:
- Broadband AR coating (400–1000nm)
- Zero thermal shift (-10°C to +50°C)
- Operational Efficiency:
- Tool-free sensor alignment (C-mount torque ≤0.8N·m)
- 10-year lubricant-free mechanism
- Compliance:
- CE, RoHS, REACH
- FDA 21 CFR for food zone use
5. Functional Capabilities
The MO814-MP2 delivers advanced functionality through:
1. Motorized Control System:
- Focus/Iris actuators with 12-bit positioning resolution
- Integrated encoders for position feedback
- PLC control via Modbus RTU (9600–115200 baud)
2. Optical Performance:
- 6-element/4-group design with ED glass
-
90% relative illumination at corners
- Vignetting <5% at F2.8
3. Environmental Adaptation:
- Condensation-resistant nitrogen purging
- Thermal compensation shims maintain focus stability
4. Integration Features:
- I/O connectors: 8-pin M12 (power + control)
- Preset memory: 16 focus/iris positions
- Auto-calibration via SDK commands
5. Inspection Optimization:
- Focus stacking capability (10 positions/sec)
- Dynamic aperture control for HDR imaging
- Sub-pixel edge detection enabled by MTF >70% @ Nyquist
| Key Parameter | Specification Details |
|---|---|
| Manufacturer & Model | Computar MO814-MP2 |
| Lens Type | Wide-Angle Fixed Focal Industrial Lens (C-Mount) |
| Focal Length | 1.4 mm |
| Aperture (F-stop) | F1.4 (Fixed Iris) |
| Max Image Sensor Format | 1/1.8" (Compatible with 1/1.8" to 1/2.5" sensors) |
| Resolution | 5 Megapixels (Supports 2592 × 1944 pixels) |
| Angle of View (Diagonal) | 84° (Wide coverage for close-range applications) |
| Focus Range | 0.1 m (100 mm) to Infinity |
| Distortion | < 5% (Barrel distortion typical for ultra-wide lenses) |
| Iris Control | Manual Locking Ring (Fixed aperture; no motorized control) |
| Mount Type | C-Mount (Standard industrial threading: 1" diameter, 32 TPI) |
| Optical Construction | 7 elements in 5 groups (High-transmission multi-coating) |
| Flange Back Distance | 17.526 mm (Standard C-Mount) |
| Chief Ray Angle (CRA) | Optimized for back-illuminated (BSI) sensors |
| Focus Adjustment | Manual focus with lock screw |
| Dimensions (Ø × L) | Ø29.5 mm × 30.0 mm (Compact design) |
| Weight | Approx. 35 g |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Material | Aluminum housing with black anodized finish |
| Key Features | • Ultra-wide 84° FOV • Low F1.4 aperture for low-light performance • 5MP resolution for detail capture • Compact & lightweight • Vibration-resistant locking screws |
| Typical Applications | Robotics vision, PCB inspection, AGV navigation, logistics sorting, confined-space monitoring |
