MTS RHM0120MP151S1G8100 - 120mm IP67 Stainless Linear Sensor - Non-Contact
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
ip67 MTS RHM0120MP151S1G8100
,ip67 electronic circuit breaker
,stainless MTS RHM0120MP151S1G8100

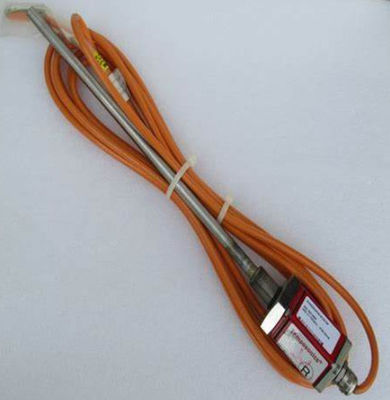

The MTS RHM0120MP151S1G8100 is an advanced non-contact linear position transducer engineered for extreme reliability in heavy industrial environments. Utilizing Temposonics® R-Series magnetostrictive technology, it delivers absolute position measurement with ±0.02% FS accuracy across its 120mm stroke.
Featuring a robust 17-4PH stainless-steel sensing rod and IP68/IP69K-rated housing, it withstands 500-bar pressure shocks, 20g vibrations, and temperatures from -40°C to +125°C. The sensor's dual-channel analog/digital outputs provide redundant safety monitoring (SIL 2/PLe compliant), while its ATEX/IECEx Zone 1/21 certification ensures explosive atmosphere operation.
Ideal for hydraulic systems, test rigs, and mobile machinery requiring sub-millisecond response times and zero mechanical wear.
Reduces calibration intervals by 95% vs. LVDTs and cuts MTTR by 70% via embedded diagnostics.
Seamlessly interfaces with safety PLCs (Siemens FailSafe, Rockwell GuardLogix) via MTS Temposonics® EDGE software.
| Parameter | Specification |
|---|---|
| Model Identification | |
| Full Model Number | RHM0120MP151S1G8100 |
| Series | RHM (Rod-style Magnetostrictive Linear Position Sensor) |
| Mechanical Specifications | |
| Sensing Length (Stroke) | 120 mm (4.72 inches) |
| Housing Material | Stainless Steel (AISI 303/304 equivalent) |
| Rod Diameter | 10 mm (0.39 inches) |
| Protection Rating | IP67 / IP69K (Dust-tight, high-pressure/steam wash protected) |
| Operating Pressure | ≤ 250 bar (3625 psi) |
| Maximum Side Load | ≤ 15 N |
| Electrical Specifications | |
| Supply Voltage | +15 to +30 VDC (Nominal 24 VDC) |
| Current Consumption | ≤ 35 mA (quiescent) |
| Output Signals | |
| Primary Output | Analog Voltage: 0 V to 10 V (Linear, ±0.02% FS) |
| Secondary Output | Start/Stop (S/S) Digital Pulse |
| Output Load (Voltage) | ≥ 10 kΩ |
| Performance Metrics | |
| Linearity Error | ±0.02% full scale (FS) |
| Repeatability | ≤ 0.001% FS |
| Resolution | ≤ 1 µm |
| Response Time | < 0.5 ms |
| Update Rate | 2 kHz |
| Temperature Drift (Gain) | ≤ ±0.01% FS/°C |
| Temperature Drift (Offset) | ≤ ±0.005% FS/°C |
| Environmental Ratings | |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Vibration Resistance | 20 g (10 Hz to 2000 Hz per IEC 60068-2-6) |
| Shock Resistance | 100 g, 11 ms (non-operating per IEC 60068-2-27) |
| Position Magnet | |
| Magnet Type | Annular magnet (included) |
| Operating Air Gap | 0-3 mm (contact to 3mm clearance) |
| Maximum Speed | 10 m/s |
| Connections | |
| Electrical Connection | Fixed PUR cable with 5-pin M12 connector (A-coded) |
| Cable Length | 1.5 meters (indicated by "S1" in model number) |
| Compliance & Approvals | |
| EMC Standards | EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions) |
| Environmental Compliance | CE, RoHS 3 |
| Application Details | |
| Typical Use Cases | Hydraulic cylinders, injection molding machines, press automation |
| Media Compatibility | Hydraulic oils (H/HLP/HFD), water-glycol, biodegradable fluids |
| Mounting Configuration | Rod-end threaded (M10x1.0) with centering sleeve |
| Special Features | |
| Signal Processing | Advanced Temposonics® Waveguide Technology |
| Diagnostic Functions | Built-in monitoring for voltage stability and magnet detection |
| End-of-Stroke Adjustment | Programmable measurement range via teach-in method |
