MTL 5524 : Precision & Rugged Industrial Sensor for Harsh Environments
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 100*100*100mm |
| Delivery Period: | 3 day |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
industrial MTL 5524
,industrial electronic circuit breaker
,Rugged MTL 5524
| Attribute | Value |
|---|---|
| Signal Range | 4 to 20mA |
| Current Range | 1 to 40mA |
| Operating Temperature Range | -20°C to +60°C |
| Weight | 0.2kg |
| Mounting Type | DIN Rail |
| Warranty Time | 12 months |
| Contact Life Expectancy | 2 x 107 operations at maximum IS load |
| Dimensions | 110mm x 22.5mm x 130mm |

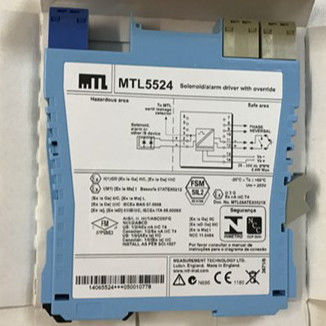

The MTL 5524 is a cutting-edge isolated barrier engineered to deliver ultra-reliable control of on/off devices in Zone 0 hazardous areas. With a 3-port isolation architecture and din-rail mount design, this module bridges safe-area logic signals (1.4-4.5V DC input) with high-power outputs (13.6-24V DC) capable of driving solenoids, alarms, and LEDs up to 48mA.
Its intrinsic safety certification (ATEX/IECEx IIC T4-T6) ensures compliance with the most stringent industrial standards, while the ruggedized construction (operating temperature: -20°C to +60°C) withstands extreme conditions in petrochemical, pharmaceutical, and offshore installations.
Part of the MTL5500 Series, the 5524 combines compact 16mm width with multi-channel scalability, enabling high-density installations without sacrificing safety or functionality. Its dual LED indicators (green for power, yellow for output status) provide real-time diagnostics, while the fail-safe override feature ensures emergency shutdowns in critical processes.
- Input: 1.4-4.5V DC (safe-area logic signals)
- Output: 13.6-24V DC, 48mA max (drives solenoids, alarms, LEDs)
- Isolation: 3-port architecture with 250V AC galvanic isolation
- Mounting: DIN rail (TS35/7.5 or TS35/15)
- Terminals: Screw-type connections for secure wiring
- Dimensions: 16mm width × 100mm height (compact modular design)
- Material: Flame-retardant polycarbonate (UL94 V-0 rating)
