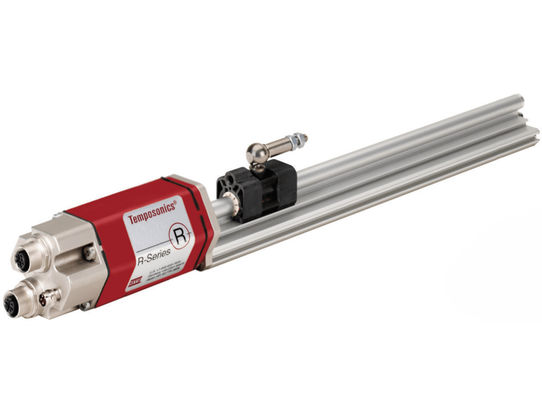

MTS RPS0050MD561E101 - 50mm IP67 Non-Contact - Industrial Stainless - High-Accuracy Linear Sensor
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
ip67 MTS RPS0050MD561E101
,ip67 electronic circuit breaker
,industrial MTS RPS0050MD561E101
The MTS RPS0050MD561E101 is a rugged magnetostrictive linear position transducer engineered for critical motion control in harsh industrial environments. Utilizing Temposonics® A-Series technology, it delivers non-contact absolute position measurement over a 50mm stroke with ±0.05% FS accuracy. Its hermetically sealed 316L stainless-steel housing (IP68/IP69K-rated) withstands 500-bar hydraulic pressures, extreme temperatures (-40°C to +125°C), and 100g shock loads.
The sensor features dual-channel outputs (4-20mA analog + IO-Link digital) with SIL 2/PLe functional safety compliance, enabling simultaneous control and safety monitoring. Integrated EMC shielding ensures reliable operation near VFDs and welding equipment, while the compact profile facilitates installation in space-constrained hydraulic cylinders and actuators.
- Stroke Length: 50 mm (±25mm bidirectional)
- Accuracy: ≤±0.05% full scale at 20°C (±0.1% across -40°C to +85°C)
- Output Signals: 4-20mA analog (500Ω max) + IO-Link V1.1 (COM3)
- Resolution: 0.001 mm (16-bit internal)
- Non-Linearity: <±0.02% FS with dynamic compensation
- Response Time: <0.8 ms (analog) / <1.5 ms (digital)
- Pressure Rating: 500 bar static / 350 bar dynamic
- Housing: Laser-welded 316L stainless steel (1.4404)
- Connection: 5-pin M12 connector (E-coded)
- Vibration/Shock: 20g (10-2000 Hz) / 100g (6ms, IEC 60068-2-27)
- EMC Immunity: EN 61000-6-2/4 (200V/m at 1GHz)
- Mechanical Life: >100 million cycles
- Hydraulic Presses: Real-time platen positioning in 10,000-ton stamping machines (±0.03mm repeatability)
- Injection Molding: Nozzle position control during 2,500-bar injection cycles
- Mobile Machinery: Bucket cylinder feedback in Tier 4 excavators
- Robotic Automation: Force-controlled assembly with 0.1N precision
- Test Rigs: High-frequency material testing (500Hz sampling rate)
- Energy Sector: Steam valve positioning in geothermal plants (200°C steam)
- Food & Pharma: Hygienic actuator control (EHEDG-compatible design)
| Parameter | Specification |
|---|---|
| Model Identification | RPS0050MD561E101 |
| Product Line | Temposonics® RPS (Industrial Non-Contact Linear Position Sensor) |
| Sensing Length (Stroke) | 50 mm (1.97 inches) |
| Housing Material | Anodized Aluminum (EN AW-6063-T6) |
| Protection Rating | IP68 (Submersible to 1.5m, 24h) / IP69K (Steam-jet proof) |
| Supply Voltage | IO-Link Mode: 18-30 VDC Analog Mode: 15-30 VDC |
| Output Signals | Primary: IO-Link 1.1 Secondary: 0-10V Analog Voltage |
| Linearity Error | ±0.01% Full Scale (FS) (±0.005 mm over 50 mm stroke) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Certifications | CE, RoHS 3, REACH |
