Reliable MTL 5017 ISolator: Multi-Channel Protection in Oil & Gas
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 100*100*100mm |
| Delivery Period: | 3 day |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Reliable MTL 5017
,Reliable MTL plc module
,Multi-Channel Protection MTL 5017
| Attribute | Value |
|---|---|
| Warranty Time | 12 months |
| Quantity | 100% Original and Genuine |
| Condition | Stock |
| Size | Medium |
| Response Time | 1ms typical |
| Number Of Tools | 15 |
| Screwdriver Size | Flathead and Phillips |
| Lead Time | In stock |

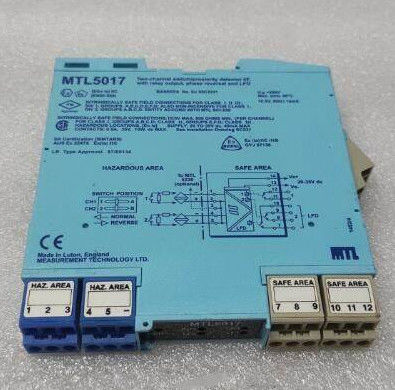

The MTL5017 is a two-channel switch/proximity detector interface engineered for reliable operation in Zone 0/1/21/22 hazardous areas, combining intrinsic safety (IS) with advanced diagnostics. Part of Eaton's MTL5000 series, it supports NAMUR/DIN 19234-compliant sensors and provides 250Vrms isolation between hazardous-area inputs, safe-area outputs, and power supply, ensuring protection against ground loops and voltage transients.
Equipped with fail-safe relay outputs (0.5A/35V DC), the MTL5017 offers configurable response modes, including maintaining the last valid state or de-energizing during faults, aligning with SIL 2 requirements. Its LFD feature detects sensor circuit degradation with ±100μA precision, outperforming competitors that lack dynamic threshold adjustment.
| Attribute | Description |
|---|---|
| Product Type | Dual-channel intrinsic safety interface designed for connecting NAMUR/DIN 19234-compliant proximity sensors in Zone 0/1/21/22 hazardous areas |
| Certifications | ATEX: II 1G Ex ia IIC T4-T6 (Baseefa EX 95C2231) IECEx: ia IIC T4-T6 (Certificate BAS 06.0041) UL/CSA: Class I, II, III, Groups A-G |
| Input Specifications | Type: NAMUR-compliant 2-wire sensors Voltage Range: 10.5V DC ±10% Impedance: 800Ω ±5% Current Consumption: 14mA typical |
| Output Specifications | Type: Relay (SPDT), 0.5A/35V DC (10W max) Response Time: <20ms Fail-Safe Mode: De-energizes or maintains last state (jumper-selectable) |
| Safety Features | Line Fault Detection (LFD): Continuously monitors sensor circuits Phase Reversal Control: Corrects sensor wiring polarity automatically Intrinsic Safety: Meets EN 60079-11 standards with Um=250V |
