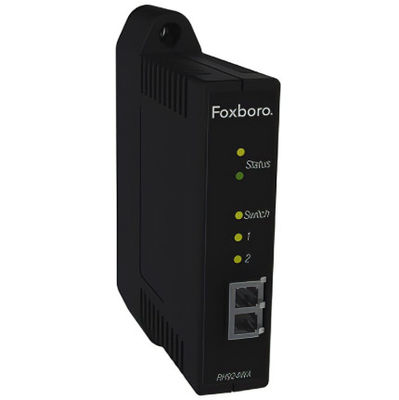

RH924WA Foxboro Distributed Control System High Accuracy For Pharmaceutical
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Detail Information
Place of Origin
America
Brand Name
Foxboro
Certification
3C
Model Number
RH924WA
Product No:
FBM201
Communication_Protocol:
Ethernet/IP
Input Channels:
8 Isolated And Independent Channels
Condition:
New And Original
Output Channels:
16 Isolated Channels
Product_Name:
Foxboro Distributed Control System
Programming_Language:
Foxboro I/A Series
Interfaces:
OPC, Modbus, Profibus
Highlight:
RH924WA Foxboro Distributed Control System
,High Accuracy RH924WA Foxboro
,RH924WA Foxboro For Pharmaceutical
Product Description
RH924WA Foxboro Distributed Control System High Accuracy For Pharmaceutical
Product Specifications
| Attribute | Value |
|---|---|
| Product No | FBM201 |
| Communication Protocol | Ethernet/IP |
| Input Channels | 8 isolated and independent channels |
| Condition | New and original |
| Output Channels | 16 isolated channels |
| Product Name | Foxboro Distributed Control System |
| Programming Language | Foxboro I/A Series |
| Interfaces | OPC, Modbus, Profibus |
Product Overview
The Foxboro RH924WA is a high-accuracy industrial pressure transmitter designed for critical process measurement in demanding industrial environments. Part of Foxboro's renowned RH Series, this transmitter features a robust stainless-steel housing with IP67 protection, ensuring reliability in harsh conditions like chemical processing, oil and gas, and power generation.
Key Technical Parameters
- Measuring Range: 0-10 kPa to 0-100 MPa (customizable)
- Accuracy: ±0.075% of span (including linearity, hysteresis, and repeatability)
- Output: 4-20 mA analog with HART® 7 digital communication
- Process Connection: ¼" NPT, ½" NPT, or DIN 16288 flanges
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Pressure Rating: Up to 400 bar (5800 psi) burst pressure
- Electrical Protection: Intrinsic safety (ATEX/IECEx Zone 0/1), FM/CSA approvals
- Housing Material: 316L stainless steel with optional Hastelloy® seals
- Long-Term Stability: <±0.1% of URL per year
- Certifications: SIL 2/3 (IEC 61508), CE, RoHS
Typical Applications
The RH924WA excels in mission-critical industrial processes:
- Oil & Gas: Wellhead pressure monitoring, pipeline leak detection, and separator vessel control
- Chemical Processing: Reactor pressure safety, distillation column optimization, and corrosive fluid handling
- Power Generation: Steam header pressure control, turbine inlet monitoring, and feedwater systems
- Pharmaceutical: Bioreactor sterilization validation and CIP/SIP process assurance
- Water Treatment: Pump protection, filter differential pressure, and reservoir level calculations
Competitive Advantages
- Unmatched Precision: ±0.075% accuracy reduces process variability and improves product quality
- Extreme Durability: 316L/Hastelloy® construction resists pitting, corrosion, and chemical erosion
- Smart Diagnostics: HART® 7 enables predictive maintenance via device health monitoring
- Safety Compliance: SIL 2/3 certification for functional safety-critical applications
- Future-Proof Integration: Backward compatibility with legacy Foxboro I/A Series systems and modern DCS platforms
Additional Specifications
| Parameter Category | Specification / Attribute |
|---|---|
| Product Type | Pneumatic Force-Balance Pressure Transmitter |
| Model Number | RH924WA |
| Manufacturer Line | Foxboro I/A Series (Legacy Product) |
| Measurement Type | Gauge, Absolute, or Differential Pressure |
| Pressure Range | Adjustable spans: 0-5 inH₂O to 0-600 psi (0-1.24 kPa to 0-4.14 MPa) Max. static pressure: 1,500 psi (10.34 MPa) |
| Output Signal | Pneumatic: 3-15 psi (0.2-1.0 bar) |
| Supply Pressure | 20-35 psi (1.4-2.4 bar) clean/dry air |
| Accuracy | ±0.5% of calibrated span (including linearity, hysteresis, repeatability) |
Packaging & Shipping
Company Information
Xiamen ZhiCheng Automation Technology Co., Ltd is a leading global supplier of control system components. We specialize in control systems and drives.
With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts.
We specialize in PLC, Sensors, HIM, and Transmitters from leading brands including Bently Nevada, +GF+, Rosemount, ABB, Allen-Bradley, and Foxboro.
