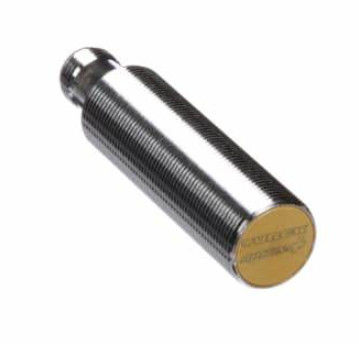

BI8U-M18E-AP6X-H1141 - IP67 8mm Stainless Inductive Sensor
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Detail Information
Place of Origin
Germany
Brand Name
Turck
Certification
3C
Model Number
BI8U-M18E-AP6X-H1141
Output Type:
Analog, Digital, IO-Link
Housing Material:
Stainless Steel, Plastic, And More
Application:
Factory Automation
Function:
Sensing, Connectivity, And Automation
Mounting Type:
Threaded, Quick Disconnect, And More
Sensing Technology:
Inductive, Capacitive, Ultrasonic, And More
Product Type:
Sensors And Connectivity Solutions
Communication Protocol:
Ethernet, CAN, IO-Link, And More
Highlight:
ip67 BI8U-M18E-AP6X-H1141
,ip67 electronic circuit breaker
,stainless BI8U-M18E-AP6X-H1141
Product Description
BI8U-M18E-AP6X-H1141 - IP67 8mm Stainless Inductive Sensor
| Attribute | Value |
|---|---|
| Output Type | Analog, Digital, IO-Link |
| Housing Material | Stainless Steel, Plastic, and more |
| Application | Factory Automation |
| Function | Sensing, Connectivity, and Automation |
| Mounting Type | Threaded, Quick Disconnect, and more |
| Sensing Technology | Inductive, Capacitive, Ultrasonic, and more |
| Product Type | Sensors and Connectivity Solutions |
| Communication Protocol | Ethernet, CAN, IO-Link, and more |
Product Overview
The Turck BI8U-M18E-AP6X-H1141 is a rugged inductive proximity sensor designed for high-precision, non-contact detection of metallic objects in demanding industrial environments. Featuring an M18 stainless steel housing with IP67/IP69K protection, this sensor is built to withstand harsh conditions such as dust, moisture, mechanical shocks, and high-pressure washdowns.
Key Technical Parameters
- Sensing Range: 8 mm (for mild steel; reduced for non-ferrous metals)
- Supply Voltage: 10-30 V DC (±10%) with reverse polarity and surge protection
- Output Type: Configurable PNP/NPN transistor (NO/NC), 200 mA max load current
- Housing Material: Stainless steel (316L) with anti-corrosion coating
- Operating Temperature: -25°C to +85°C (-13°F to +185°F)
- Protection Class: IP67/IP69K (dustproof, waterproof, and resistant to high-pressure cleaning)
- Switching Frequency: Up to 1 kHz for rapid response in dynamic applications
- Connector: M12 4-pin shielded (AP6X variant) with PUR cable (H1141 configuration)
- Certifications: CE, UL, cULus, RoHS, and REACH compliance
Typical Applications
The BI8U-M18E-AP6X-H1141 excels in industrial automation scenarios requiring robust sensing solutions:
- Automotive Assembly: Detecting metal components in robotic welding, stamping presses, or conveyor systems
- Packaging Machinery: Verifying the presence of metal lids, cans, or foil seals on high-speed filling lines
- Food & Beverage: Monitoring stainless steel valves, mixers, or conveyor chains in sanitary washdown zones
- Material Handling: Position feedback for automated guided vehicles (AGVs) or palletizing systems
- Heavy Machinery: Ensuring safety interlocks for hydraulic cylinders or rotating equipment
Competitive Advantages
- Extreme Durability: 316L stainless steel housing resists corrosion, chemicals, and mechanical stress
- High Sensing Accuracy: Consistent 8 mm range with minimal hysteresis for reliable detection
- Quick Installation: Pre-wired M12 connectors and threaded design minimize setup time
- Flexible Configuration: Configurable output logic (PNP/NPN) adapts to diverse control systems
- Long Lifespan: Hermetic sealing and robust construction reduce downtime
Technical Specifications
| Product Category | Extended-Range Inductive Proximity Sensor |
| Model Number | BI8U-M18E-AP6X-H1141 |
| Housing | M18 × 1 threaded barrel (Nickel-plated brass) |
| Mounting Type | Non-flush (Unshielded) |
| Sensing Distance (Sn) | 15 mm (steel) / 8 mm (stainless steel) / 12 mm (aluminum) |
| Hysteresis | ≤ 15% of Sn |
| Output Type | Dual PNP (2 × Normally Open) |
| Output Configuration | 4-wire (Brown = +24V, Blue = GND, Black = Output 1, White = Output 2) |
| Operating Voltage | 10-30 V DC (±10%) |
| Output Current | ≤ 200 mA per channel |
| Switching Frequency | ≤ 500 Hz |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Protection Rating | IP69K (High-pressure/high-temperature washdown resistant) |
