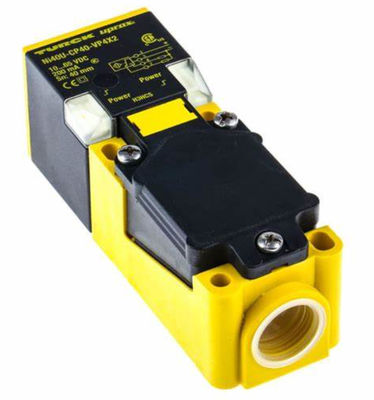

NI40U-CP40-VP4X2 - IP67 40mm Stainless Vibration-Resist Inductive Sensor
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
ip67 NI40U-CP40-VP4X2
,ip67 electronic circuit breaker
,stainless NI40U-CP40-VP4X2
| Attribute | Value |
|---|---|
| Housing Material | Stainless Steel |
| Output | Analog |
| Type | Sensor |
| Protection Class | IP67 |
| Technology | Inductive |
| Mounting Type | Threaded |
| Sensing Face | Flush |
| Function | Detection |
The Turck NI40U-CP40-VP4X2 is a high-performance inductive proximity sensor engineered for precise non-contact detection of metallic objects in demanding industrial environments. Part of Turck's NI series, this sensor is designed to deliver reliable operation in applications such as factory automation, automotive assembly, and material handling. Its cylindrical stainless steel housing (M30 x 1.5 thread) ensures durability against mechanical shock, vibration, and exposure to harsh chemicals or oils. The sensor features IP67/IP69K protection, making it resistant to dust, water ingress, and high-pressure washdowns, ideal for food processing, pharmaceutical, and heavy machinery applications.
Equipped with a PNP normally open (NO) output, the NI40U-CP40-VP4X2 operates across a wide voltage range and integrates seamlessly with PLCs, controllers, and industrial networks. Compliance with IEC 60947-5-2 and UL 508 standards ensures global safety and performance reliability.
The NI40U-CP40-VP4X2 is defined by precision-engineered specifications:
- Sensing Distance: 40 mm (adjustable for ferrous metals like steel and iron).
- Operating Voltage: 10-30 V DC (±10%), compatible with industrial 24 V DC systems.
- Output Type: PNP NO (solid-state), 200 mA switching capacity.
- Housing Material: Stainless steel (AISI 316L) with epoxy-sealed electronics.
- Temperature Range: -25°C to +70°C (operational), -40°C to +85°C (storage).
- Frequency: 100 Hz (response time ≤2 ms).
- Connection: 4-pin M12 quick-disconnect connector with 2 m PVC cable.
- Certifications: CE, UL, cULus, and RoHS compliance.
These parameters ensure reliable object detection in high-speed automation and extreme environments.
The NI40U-CP40-VP4X2 is widely deployed across industries requiring robust metal detection:
- Automotive Manufacturing: Monitors position of robotic arms, welding jigs, and conveyor systems.
- Packaging Machinery: Verifies presence of metal lids, cans, or containers in filling lines.
- Material Handling: Detects pallets, trolleys, and metal components in logistics automation.
- Heavy Machinery: Tracks hydraulic cylinder positions and safety interlocks in construction equipment.
- Food & Beverage: Withstands sanitation cycles in hygiene-critical production zones.
Its rugged design also suits mining, agriculture, and renewable energy systems where dust, moisture, and vibration are prevalent.
The NI40U-CP40-VP4X2 outperforms standard sensors through innovative design:
- Extended Sensing Range: 40 mm detection for large or distant metallic targets.
- High Immunity to Interference: Shielded electronics minimize false triggers from EMI/RFI noise.
- Corrosion Resistance: Stainless steel housing and epoxy coating ensure longevity in corrosive environments.
- Quick-Connect Integration: M12 connectors reduce wiring complexity and downtime during maintenance.
- Energy Efficiency: Low power consumption reduces heat generation and operational costs.
These features enhance system uptime, reduce maintenance, and improve safety in critical processes.
The NI40U-CP40-VP4X2 delivers advanced functionality for automation systems:
- Adjustable Sensitivity: Fine-tune detection range via potentiometer for diverse metal types.
- Short-Circuit Protection: Built-in safeguards prevent damage from wiring faults.
- Status LED: Dual-color indicator (red/green) for real-time diagnostics and fault detection.
- Reverse Polarity Protection: Ensures operation despite incorrect power connections.
- Temperature Stability: Maintains accuracy across extreme thermal fluctuations.
Combined with Turck's rigorous quality assurance, the NI40U-CP40-VP4X2 is a trusted solution for engineers prioritizing precision, durability, and operational efficiency.
| Parameter | Value/Description |
|---|---|
| Product Category | Inductive Proximity Sensor (Cylindrical, M30 Housing) |
| Model Number | NI40U-CP40-VP4X2 |
| Sensing Type | Inductive, Non-flush Mountable |
| Operating Voltage | 10-30 V DC |
| Output Type | 2 x PNP (Dual-channel, Normally Open (NO)) |
| Output Current | ≤ 200 mA per channel |
| Switching Frequency | ≤ 500 Hz |
| Detection Distance (Sn) | 40 mm (for steel) |
| Hysteresis | ≤ 10% of Sn |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Protection Rating | IP67 (Dustproof and protected against temporary immersion) / IP69K (High-pressure resistance) |
| Housing Material | Stainless steel (sensing face) / PBT (housing) |
| Connection Type | M12 × 1 Connector (4-pin, male) |
| Cable Length | Pre-wired cable options (e.g., 2 m) or connector version |
| LED Status Indicator | Red LED for power and switching status |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| EMC Compliance | EN 60947-5-2, EN 61000-6-2, EN 61000-6-4 |
| Certifications | CE, UL Listed, cULus, RoHS, REACH |
| Mechanical Shock Resistance | 30 g (11 ms duration) |
| Vibration Resistance | 10-55 Hz, 1.5 mm amplitude |
| Weight | Approx. 300 g (connector version) / 350 g (cable version) |
| Mounting | M30 × 1.5 threaded barrel |
