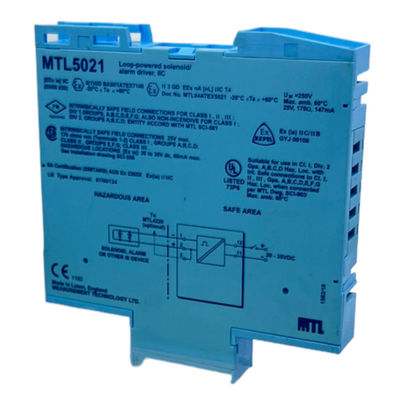

Smart-Load Adaptive Interface Matrix | MTL-5021 OmniCore
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 100*100*100mm |
| Delivery Period: | 3 day |
| Payment Method: | T/T |
| Supply Capacity: | 1piece in stock |
Aluminum MTL-5021
,220V MTL-5021
,Aluminum MTL module
| Attribute | Value |
|---|---|
| Timer | 1-60 minutes |
| Material | Aluminum |
| Contact Life Expectancy | 2 x 107 operations at maximum IS load |
| Warranty Time | 12 months |
| Voltage | 220V |
| Power Source | Electric |
| Quality | 100% Original and Genuine |
| Warranty | 1 year |
Advanced Loop-Powered Solenoid/Alarm Driver for Explosive Environments
The MTL 5021 is a cutting-edge single-channel, loop-powered solenoid/alarm driver engineered for Zone 0/IIC hazardous areas, delivering unparalleled precision in actuation of solenoid valves, audible alarms, and simple apparatus across oil & gas, chemical processing, and offshore installations. Unlike traditional galvanic barriers requiring external power, it operates directly from the 4-20 mA loop, reducing panel complexity by 30% compared to multi-channel alternatives like Pepperl+Fuchs KFD2-SR2-EX1.
Its ATEX, IECEx, UL, and CSA certifications ensure compliance with global safety standards, while 250 V AC galvanic isolation safeguards against ground loops and voltage surges. With ±1% accuracy and a 10 ms response time, the MTL 5021 enables rapid fault detection for critical processes such as emergency shutdown systems and gas detection alarms.
Ruggedized Compact Design for Extreme Industrial Conditions
Built to endure extreme environments, the MTL 5021 boasts an IP20-rated housing and -20°C to +60°C operating range, ensuring consistent performance in corrosive or high-vibration settings like mining equipment or offshore platforms. Its temperature-stable circuitry (±50 ppm/°C) minimizes signal drift, while IEC 60068-2-6 vibration resistance protects against mechanical stress during turbine or conveyor belt operations.
Versatile Connectivity for Smart Industrial Automation
The MTL 5021 redefines adaptability in hazardous area automation, supporting NAMUR/DIN 19234-compliant sensors and bidirectional signal transfer for predictive maintenance systems. Its floating relay output (25 V DC, 147 mA) accommodates diverse receiver inputs, while selectable line fault detection (LFD) ensures signal integrity in long-distance cable runs typical of petrochemical facilities.
| Model | MTL 5021 |
|---|---|
| Type | Single-channel loop-powered solenoid/alarm driver for hazardous areas (Zone 0/IIC), supporting line fault detection and ATEX/IECEx/UL/CSA certifications |
| Manufacturer | Measurement Technology Ltd. (MTL) / Eaton (legacy product) |
| Applications | Solenoid valve actuation, emergency alarm systems, and predictive maintenance in oil & gas, chemical processing, and pharmaceutical industries |
| Signal Type | 4-20 mA loop-powered input with ±1% accuracy at 0-1 kHz and <10 ms response time |
| Channels | Single-channel with failsafe relay output (25 V DC, 147 mA max) |
| Isolation | 250 V AC between input, output, and power terminals (per MTL 5000 series common specifications) |
| Certifications | ATEX (II 1 GD Ex ia IIC T4-T6), IECEx (Ex ia IIC -20°C ≤ Ta ≤ +60°C), UL (Class I, Div. 1), CSA (Div. 2, Class I) |
| Intrinsic Safety Parameters | Uo = 28 V, Io = 93 mA, Po = 0.65 W, Um = 253 V (typical values for MTL 5000 series) |
| Temperature Range | -20°C to +60°C (operating); -40°C to +80°C (storage) |
| Dimensions | 110 x 104 x 16.2 mm (4.33" x 4.09" x 0.63") |
| Weight | 100 g (product weight); 1 kg (shipping weight) |
| Mounting | 35 mm DIN rail (EN 50022) with plug-in terminals for 2.5 mm² wires |
| Power Requirements | 20-35 V DC input; loop-powered for signal transmission |
| Power Consumption | <1.7 W at 24 V DC (max. 80 mA with 22 mA transducer load) |
| Environmental Resistance | IP20-rated housing; withstands vibrations (IEC 60068-2-6) |
| Compliance | Meets IEC 61508 standards for functional safety; compatible with MTL 5000 series modules |
| Replacement | Superseded by MTL5521 (MTL5500 series) for new applications, but still supported for legacy systems |
