Humidity-Immune SmartStack Mounting Nodes | MTL-5031 ClimateCore
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 100*100*100mm |
| Delivery Period: | 3 day |
| Payment Method: | T/T |
| Supply Capacity: | 1piece in stock |
PC Control MTL-5031
,industrial MTL-5031
,PC Control MTL module
| Attribute | Value |
|---|---|
| Signal Range | 4 to 20mA |
| Contact Life Expectancy | 2 x 107 operations at maximum IS load |
| Beam Quality | M2 < 1.2 |
| Control System | PC Control |
| Quantity | 100% Original and Genuine |
| Cooling System | Water Cooling |
| Current Range | 1 to 40mA |
| Pulse Frequency | 1-100kHz |

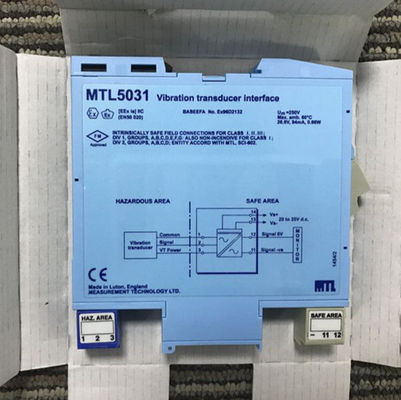

The MTL 5031 is a single-channel vibration transducer interface engineered to deliver precise signal conditioning in Zone 0/IIC hazardous areas, combining intrinsic safety with robust performance for industrial machinery monitoring. Unlike the Pepperl+Fuchs KFD2-STC4-EX1, which focuses on analog current loop isolation, the MTL 5031 specializes in transferring high-frequency vibration signals (up to 43 kHz bandwidth) with ±1% AC accuracy at 0-1 kHz and ±100 mV DC precision.
Its isolated design ensures galvanic separation between hazardous area inputs (10 kΩ impedance) and safe area outputs (<20 Ω impedance), protecting control systems from ground loops and voltage surges. With ATEX (II 1 GD Ex ia IIC T4-T6) and IECEx certifications, it operates reliably in explosive gas atmospheres while maintaining compliance with FM and UL standards for Class I, Div. 1 environments.
Built to withstand extreme environments, the MTL 5031 features a temperature-stable design with a coefficient of ±50 ppm/°C (10-65°C) and ±100 ppm/°C (-20-10°C), ensuring consistent performance across wide thermal ranges. Its IP65-rated housing resists dust and water ingress, while vibration resistance (IEC 60068-2-6) safeguards against mechanical stress in rotating equipment applications such as turbine meters or motor diagnostics.
The MTL 5031 redefines versatility in hazardous area automation, supporting both DC and AC signal conditioning for vibration transducers, accelerometers, or proximity sensors. Its floating output design (0-550 Ω load resistance) accommodates various receiver inputs, while the isolated power supply minimizes cross-channel interference.
| Attribute | Specification |
|---|---|
| Model | MTL 5031 |
| Type | Single-channel vibration transducer interface for hazardous areas (Zone 0/IIC) |
| Manufacturer | Measurement Technology Ltd. (MTL) / Eaton (legacy product) |
| Applications | Predictive maintenance systems, rotating machinery diagnostics, turbine meters, and motor vibration monitoring |
| Signal Type | AC/DC voltage inputs (-20 V to 0.5 V DC, ±5 V AC) |
| Isolation | 250 V AC between input, output, and power terminals |
| Accuracy | ±1% of signal span (AC at 0-1 kHz), ±100 mV (DC) |
| Certifications | ATEX, IECEx, UL, CSA |
| Temperature Range | -20°C to +60°C (operating); -40°C to +80°C (storage) |
| Dimensions | 104 x 16 x 110 mm (4.09" x 0.63" x 4.33") |
