Hydrophobic Self-Cleaning Inspection Bridge | MTL-5043 Stealth Series
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 100*100*100mm |
| Delivery Period: | 3 day |
| Payment Method: | T/T |
| Supply Capacity: | 1piece in stock |
Hydrophobic MTL-5043
,industrial MTL-5043
,Hydrophobic MTL plc module
| Attribute | Value |
|---|---|
| Warranty Time | 12 months |
| Current Range | 1 to 40mA |
| Model Monitoring | Performance, Anomaly Detection |
| Product Type | Multi-Task Learning Platform |
| Compatibility | Windows, Mac, Linux |
| Integration | API, SDK |
| Model Types | Supervised Learning, Unsupervised Learning, Reinforcement Learning |
| Quality | 100% Original and Genuine |

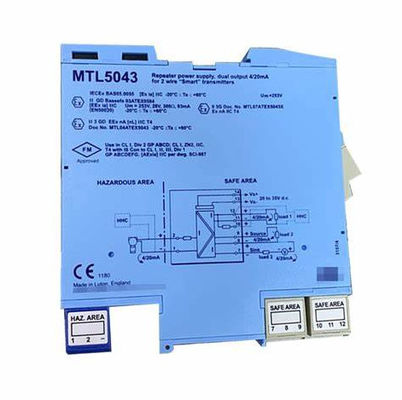

The MTL 5043 is a high-performance industrial automation component designed to provide reliable power and signal conditioning for 2-wire "smart" transmitters in Zone 0/IIC hazardous environments. Unlike single-channel alternatives like the MTL 5041 or dual-channel competitors such as the Pepperl+Fuchs KFD2-STC4-EX1, this compact repeater power supply offers dual 4-20 mA outputs with ±0.1% accuracy and rapid response times (<250 µs), ensuring stable operation for critical applications like pressure monitoring in chemical reactors or flow control in offshore platforms.
Built to withstand extreme conditions, the MTL 5043 features a robust housing that operates reliably in temperatures ranging from -20°C to +60°C and humidity levels up to 95% RH non-condensing. Weighing just 110 grams and measuring 104 x 16 x 110 mm, it offers a lightweight yet durable solution compared to bulkier modules like Siemens SICL series.
The MTL 5043 redefines flexibility in hazardous area automation, supporting HART-compatible transmitters and dual-loop signal isolation for 2-wire applications. Its floating output design (0-550 Ω load resistance) accommodates various receiver inputs, while the isolated power supply minimizes cross-channel interference.
| Attribute | Specification |
|---|---|
| Model | MTL 5043 |
| Type | Dual-channel intrinsic safety repeater power supply for 2-wire "smart" transmitters in Zone 0/IIC hazardous areas, supporting 4-20 mA signals with dual floating outputs. |
| Manufacturer | Measurement Technology Ltd. (MTL) / Eaton (legacy product) |
| Applications | Oil & gas refineries, chemical processing plants, pharmaceutical facilities; Class I, Div. 1 hazardous areas requiring dual-loop signal isolation and power conditioning. |
| Signal Type | 4-20 mA for 2-wire transmitters; compatible with HART® protocols for smart devices. |
| Channels | Dual-channel |
| Isolation | 250 V AC between input, output, and power terminals |
| Accuracy | ±20 µA typical at 20°C (0.125% of 16 mA span); transfer accuracy better than 20 µA (typically <5 µA) |
| Response Time | <250 µs to settle within 10% of final value |
| Certifications | ATEX (II 1 GD Ex ia IIC T4-T6), IECEx (Ex ia IIC -20°C ≤ Ta ≤ +60°C), UL (Class I, Div. 1), CSA (Div. 2, Class I) |
| Intrinsic Safety Parameters | Uo = 28 V, Io = 93 mA, Po = 0.65 W, Um = 250 V; terminals classified as non-energy-storing apparatus |
| Temperature Range | -20°C to +60°C (operating); -40°C to +80°C (storage) |
| Humidity | 5-95% RH non-condensing |
| Dimensions | 100 x 100 x 30 mm (3.94" x 3.94" x 1.18") |
| Weight | 0.5 kg (product weight); 3 kg (shipping weight with packaging) |
| Mounting | 35 mm DIN rail (EN 50022) with plug-in terminals for 2.5 mm² wires |
| Power Requirements | 20-35 VDC input; loop-powered for signal transmission |
| Power Consumption | 1.4 W at 24 VDC (dual-channel operation) |
| Output Load | 0-550 Ω per channel in safe area |
| HART Compatibility | Supported for smart transmitter diagnostics and configuration |
| Terminals | Plug-and-play terminals with strain relief for secure wiring |
| Warranty | 12 months |
| Unique Features | Dual-channel architecture reduces panel space by 30% compared to single-channel modules; green LED power indicator; failsafe mechanism maintains signal integrity during power fluctuations; integrated surge suppression and line fault detection |
| Environmental Resistance | Withstands vibrations (IEC 60068-2-6) and extreme humidity; IP65-rated housing for dust and water-jet protection |
| Compliance | Meets IEC 61508 standards for functional safety; compatible with MTL 5000 series modules |
| Documentation | MTL 5000 Series Instruction Manual (INM5000) for installation and maintenance |
| Replacement | Superseded by MTL5544D (MTL5500 series) for new applications, but still supported for legacy systems |
