PFA-Coated Sterilization-Ready Mount Grid | MTL-5045 BioShield
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 100*100*100mm |
| Delivery Period: | 3 day |
| Payment Method: | T/T |
| Supply Capacity: | 1piece in stock |
PFA-Coated MTL-5045
,60Hz MTL-5045
,PFA-Coated MTL module
| Attribute | Value |
|---|---|
| Quality | 100% Original and Genuine |
| Contact Life Expectancy | 2 x 107 operations at maximum IS load |
| Model | MTL-123 |
| Contacts | 1–pole changeover per channel |
| Warranty | 1 year |
| Voltage | 110-240V |
| Frequency | 50/60Hz |
| Color | Silver |

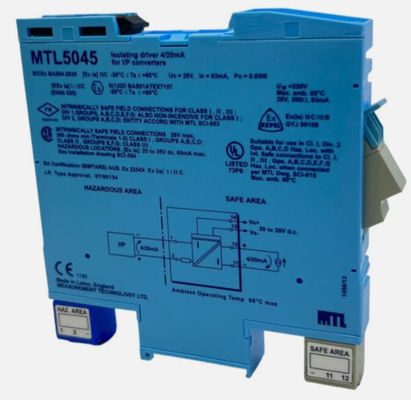

The MTL 5045 is a compact, high-performance industrial automation component engineered to ensure reliable 4-20 mA signal transmission in Zone 0/IIC hazardous environments. Unlike dual-channel alternatives like the Pepperl+Fuchs KFD2-CD-EX1.32, this single-channel isolating driver prioritizes precision in single-loop applications, such as valve positioners in petrochemical plants or pharmaceutical reactors.
Its intrinsic safety parameters (Uo = 28 V, Io = 93 mA, Po = 0.65 W) comply with ATEX (II 1 GD Ex ia IIC T4-T6) and IECEx (Ex ia IIC -20°C ≤ Ta ≤ +60°C) certifications, making it suitable for explosive gas atmospheres. With a maximum load resistance of 800 Ω--significantly higher than most competitors--it supports long-distance signal transmission without signal degradation, a critical advantage in large-scale industrial setups.
- High output capacity (16 V at 20 mA) with low input voltage drop (<4 V)
- Green LED power indicator for real-time monitoring
- Failsafe mechanism maintains signal integrity during power fluctuations
- Withstands vibrations (IEC 60068-2-6) and extreme humidity
- Reinforced housing for harsh industrial environments
- Meets IEC 61508 standards for functional safety
- Compatible with MTL 5000 series modules
| Model | MTL 5045 |
| Type | Single-channel intrinsic safety isolating driver for 4-20 mA signals in Zone 0/IIC hazardous areas |
| Applications | Oil & gas refineries, chemical processing plants, pharmaceutical facilities |
| Signal Type | 4-20 mA for 2/3-wire transmitters |
| Isolation | 250 V AC between input, output, and power terminals |
| Accuracy | ±20 µA typical at 20°C (0.125% of 16 mA span) |
| Response Time | <250 µs to settle within 10% of final value |
| Temperature Range | -20°C to +60°C (operating); -40°C to +80°C (storage) |
| Dimensions | 104 x 16 x 110 mm (4.09" x 0.63" x 4.33") |
| Weight | 120 g (product weight); 2 kg (shipping weight with packaging) |
