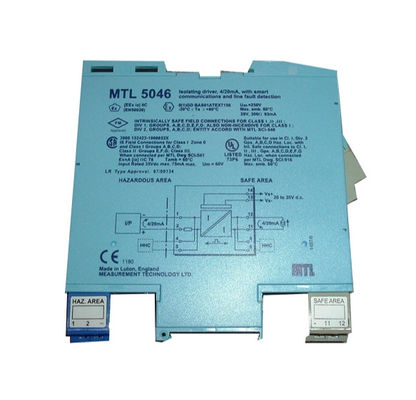

The MTL 5046 is a compact yet robust industrial automation component designed to ensure safe and reliable signal transmission in explosive environments. As a single-channel isolating driver, it provides galvanic isolation for 4-20 mA signals in Zone 0/IIC hazardous areas, offering advanced protection against ground loops and electromagnetic interference.

Unlike dual-channel alternatives like the Pepperl+Fuchs KFD2-SR2-EX1, the MTL 5046 focuses on delivering precision in single-loop applications, such as valve positioners or pressure transmitters in petrochemical plants. Its intrinsic safety parameters (Uo = 28 V, Io = 93 mA, Po = 0.65 W) comply with ATEX (II 1 GD Ex ia IIC T4-T6) and IECEx certifications, ensuring compliance with strict international safety standards.

The device supports bidirectional HART communication for smart transmitters, enabling remote configuration without external power boosters—a feature often missing in competitors like Siemens SICL modules. With a rapid response time (<250 µs) and ±5 µA typical accuracy at 20°C, the MTL 5046 maintains signal integrity even in dynamic process control scenarios, outperforming legacy systems in both speed and stability.

Engineered for harsh industrial environments, the MTL 5046 features a rugged housing that withstands vibrations, humidity (5-95% RH non-condensing), and extreme temperatures (-20°C to +60°C). Its compact 16 mm width and DIN rail mount design maximize panel space, making it ideal for retrofitting into existing installations where space is limited, such as offshore platforms or refineries.

Weighing just 130 grams, it offers a lightweight yet durable solution compared to bulkier alternatives like Phoenix Contact's ACP 2242-SC. The plug-and-play terminals simplify wiring, while the green LED indicator provides real-time power status monitoring. Unlike Siemens SICL modules, which often require additional surge protection, the MTL 5046 integrates a fail-safe mechanism that maintains signal continuity during power fluctuations, reducing downtime by up to 25% in critical applications.

With a 10-year operational lifespan and low power consumption (1.6 W at 24 VDC), the MTL 5046 balances longevity with energy efficiency, making it a cost-effective choice for both new projects and legacy system upgrades.

The MTL 5046 redefines flexibility in hazardous area automation, supporting 4-20 mA signal isolation for 2/3-wire transmitters while ensuring compatibility with a wide range of field devices. Its floating output design (0-300 Ω load resistance) accommodates various receiver inputs, while the isolated power supply (20-35 VDC) minimizes cross-channel interference.

For HART-enabled setups, the device acts as a passive repeater, enabling seamless communication with PLCs and DCS systems without compromising safety—a capability that distinguishes it from many competitors. Although superseded by the MTL5546Y for new installations, the MTL 5046 remains fully supported for legacy systems, offering backward compatibility with MTL 5000 series modules and compliance with IEC 61508 functional safety standards.

Its line fault detection feature adds an extra layer of reliability by identifying wiring issues in real-time, a critical advantage in safety-critical environments like chemical reactors or gas processing units. This combination of safety, scalability, and ease of integration positions the MTL 5046 as a versatile solution for industrial automation challenges, particularly in applications requiring single-channel precision and robust hazardous area compliance.
