Vibration-Dampening, Multi-Angle Locking Mount Plate | MTL-5044 Pro Series
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 100*100*100mm |
| Delivery Period: | 3 day |
| Payment Method: | T/T |
| Supply Capacity: | 1piece in stock |
Detail Information
Place of Origin
MTL
Brand Name
MTL
Certification
3C
Model Number
MTL-5044
Warranty Time:
12 Months
Weight:
1.5kg
Quality:
100% Original And Genuine
Voltage:
110-240V
Adjustable Temperature:
Yes
Material:
Plastic
Lead Time:
In Stock
Warranty:
1 Year
Highlight:
safety MTL-5044
,industrial MTL-5044
,safety MTL plc module
Product Description
Vibration-Dampening, Multi-Angle Locking Mount Plate | MTL-5044 Pro Series
Key Features
- Dual-channel intrinsic safety repeater power supply for hazardous zones
- 250 V rms isolation between input, output, and power terminals
- ±5 µA typical conversion accuracy at 20°C
- 250 µs rapid response time
- Bidirectional HART communication support
- ATEX, IECEx, and UL Class I, Div. 1 certified
- Compact DIN rail mount design (110 x 104 x 16.2 mm)
Product Overview

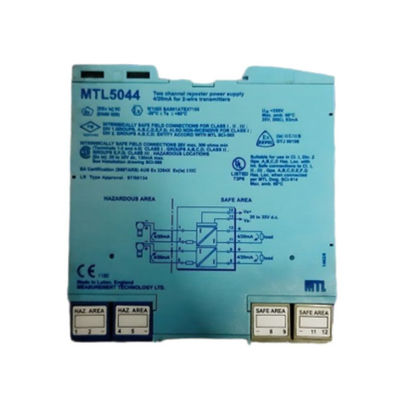

The MTL 5044 is a high-reliability industrial automation component engineered to deliver precision signal conditioning in explosive environments. As a dual-channel intrinsic safety repeater power supply, it provides isolated 4-20 mA signal transmission for two 2-wire transmitters in Zone 0/IIC hazardous areas.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | MTL 5044 |
| Type | Dual-channel intrinsic safety signal isolator/repeater power supply |
| Applications | Oil & gas refineries, chemical processing plants, pharmaceutical facilities |
| Signal Type | 4-20 mA with bidirectional HART communication support |
| Isolation | 250 V rms between input, output, and power terminals |
| Accuracy | ±5 µA typical at 20°C |
| Response Time | <250 µs to settle within 10% of final value |
| Certifications | ATEX, IECEx, UL, CSA, FM, CE |
| Temperature Range | -20°C to +60°C (operating); -40°C to +80°C (storage) |
| Dimensions | 110 x 104 x 16.2 mm (4.33" x 4.09" x 0.64") |
| Weight | 110 g |
| Warranty | 12 months |
