High-Temp Resistant, Tool-Free Adjustable Mounting Bracket | MTL-5042 System
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 100*100*100mm |
| Delivery Period: | 3 day |
| Payment Method: | T/T |
| Supply Capacity: | 1piece in stock |
High-Temp Resistant MTL-5042
,industrial MTL-5042
,High-Temp Resistant MTL module
| Attribute | Value |
|---|---|
| Quantity | 100% Original and Genuine |
| Spindle Bore | 2.44 |
| Color | Blue |
| Spindle Speed | 4,000 RPM |
| Machine Weight | 8,800 lbs (4,000 kg) |
| Weight | 140g |
| Maximum Turning Length | 19.69 |
| Lead Time | In stock |

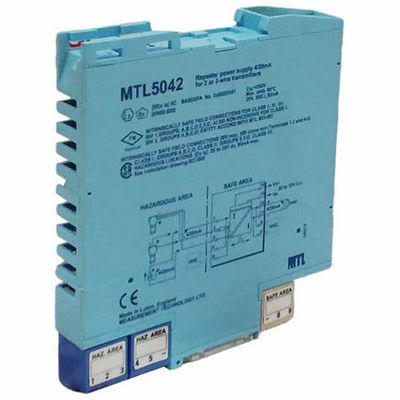

The MTL 5042 is a high-performance industrial automation component engineered for seamless integration in hazardous environments. As a dual-channel intrinsic safety isolator, it facilitates reliable 4-20 mA signal transmission between explosive zones and safe areas while supporting bidirectional HART communication for smart transmitters.
Its advanced galvanic isolation technology ensures 250 V rms isolation between input, output, and power terminals, effectively safeguarding against ground loops and electromagnetic interference. The device achieves ±10 µA typical conversion accuracy at 20°C, combined with a rapid 40 µs response time to handle dynamic process changes.
Built to withstand harsh industrial settings, the MTL 5042 holds comprehensive safety certifications, including ATEX, IECEx, and UL listings for Class I, Zone 2 hazardous areas. Its intrinsic safety parameters (Uo = 28 V, Io = 93 mA, Po = 0.65 W) ensure compliance with global explosion protection standards.
| Attribute | Specification |
|---|---|
| Model | MTL 5042 |
| Type | Single-channel intrinsic safety signal isolator/repeater power supply for 2/3-wire transmitters in hazardous areas. |
| Manufacturer | Measurement Technology Ltd. (MTL) / Eaton (legacy product). |
| Applications | Oil & gas, chemical processing, pharmaceutical industries; Class I, Zone 2 hazardous areas. |
| Signal Type | 4-20 mA with HART communication support |
| Channels | Single-channel |
| Isolation | 250 V rms between input, output, and power terminals |
| Accuracy | ±10 µA typical at 20°C |
| Response Time | <40 µs to settle within 10% of final value |
| Certifications | ATEX, IECEx, UL, CSA, FM, CE |
| Temperature Range | -20°C to +60°C (operating); -40°C to +80°C (storage) |
| Dimensions | 110 x 104 x 16.2 mm (4.33" x 4.09" x 0.64") |
| Weight | 110-120 g |
| Mounting | 35 mm DIN rail (EN 50022) with plug-in terminals |
