NBN4-12GM50-E2 Non-Contact Inductive Sensor - 4mm Detection IP67 Industrial
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
ip67 NBN4-12GM50-E2
,ip67 electronic circuit breaker
,industrial NBN4-12GM50-E2
| Attribute | Value |
|---|---|
| Adjustment Range | 400 ... 6000 mm |
| Product Description | Single head system |
| Output Type | NPN |
| Output Signal | 0/4 ... 20 mA (overload > 25 mA) |
| Protection Rating | IP67 |
| Sensing Range | 350 ... 6000 mm |
| Dead Band | 0 ... 350 mm |
| Signal Type | Analog input |

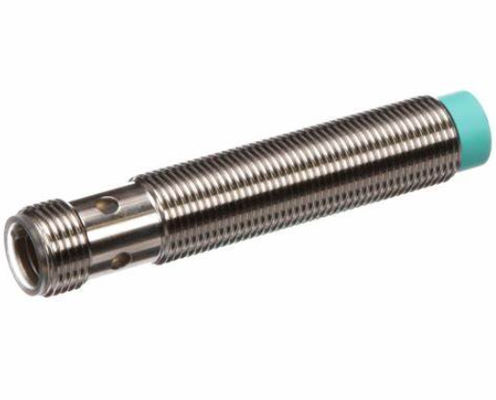

The PEPPERL+FUCHS NBN4-12GM50-E2 is a high-performance inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation systems. Featuring a cylindrical stainless steel housing (M12x1 threading), this sensor offers robust operation in harsh environments with resistance to dust, moisture, and mechanical stress.
- Detection Range: 4 mm (for mild steel targets)
- Output Type: PNP, NO (3-wire, 2 m PVC cable)
- Supply Voltage: 10-30V DC (±10%)
- Current Consumption: ≤15 mA
- Switching Frequency: 1 kHz
- Housing Material: Stainless steel (1.4404/316L)
- Protection Class: IP67 (dust/water resistance)
- Operating Temperature: -25°C to +70°C
- Certifications: CE, cULus, IECEx, ATEX (Ex II 3G Ex nA IIC T6 Gc)
The NBN4-12GM50-E2 is widely used in automotive manufacturing for detecting piston positions, robotic arm movements, and conveyor belt part presence. In packaging lines, it ensures precise alignment of containers and verifies fill levels. The sensor's ATEX/IECEx certification allows deployment in explosive atmospheres, such as chemical plants and oil refineries, for monitoring valves and pumps.
- Durability: Stainless steel housing resists corrosion, impact, and chemical exposure
- High Immunity: Stable operation in environments with electromagnetic interference (EMI)
- Flexible Integration: PNP output compatibility with most industrial control systems
- Easy Installation: M12x1 threaded design simplifies mounting in confined spaces
- Safety Compliance: ATEX/IECEx certification ensures safe use in hazardous areas
| Category | Parameter | Details |
|---|---|---|
| General Specifications | Product Type | Inductive Proximity Sensor |
| Model Number | NBN4-12GM50-E2 | |
| Detection Principle | Inductive (Metallic Target Detection) | |
| Sensing Distance | 12 mm (Nominal) | |
| Housing Material | Nickel-plated Brass | |
| Protection Rating | IP67 (Dust/Water Resistant) | |
| Connection Type | Fixed Cable (2 m PVC) with Flying Leads or M12 Connector (E2 Variant) | |
| Electrical Specifications | Operating Voltage | 10-30 V DC |
| Output Type | PNP, Normally Open (NO) | |
| Output Configuration | 3-Wire, Switching Output | |
| Current Rating | ≤ 200 mA | |
| Switching Frequency | 1 kHz | |
| Voltage Drop | ≤ 2 V | |
| Mechanical Specifications | Housing Diameter | M18 × 1 |
| Length | 50 mm (Approx.) | |
| Operating Position | Axial (Front Sensing) | |
| Cable Length | 2 m Standard (PVC) | |
| Environmental Conditions | Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) | |
| Shock Resistance | 30 g (IEC 60068-2-27) | |
| Vibration Resistance | 10-55 Hz, 1.5 mm Amplitude (IEC 60068-2-6) | |
| Certifications & Compliance | Standards | CE, cULus, RoHS, REACH |
| EMC Compatibility | EN 60947-5-2 | |
| Special Features | LED Status Indicator | Red LED for Operational Feedback |
| Short-Circuit Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| EMI/RFI Immunity | High Immunity to Electromagnetic Interference | |
| Target Material Compatibility | Detects Ferrous Metals (e.g., Steel, Iron) |
