NBN4-12GM40-Z0 Non-Contact Inductive Sensor - 4mm Detection IP67 Industrial
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
ip67 NBN4-12GM40-Z0
,ip67 electronic circuit breaker
,industrial NBN4-12GM40-Z0
| Certifications | CE, UL, CSA |
| IP Rating | IP67 |
| Installation | non-flush |
| Connection | Power Rail or terminals 23+, 24- |
| Product Type | Sensor |
| Transducer Frequency | approx. 65 kHz |
| Output Signal | 0/4 ... 20 mA (overload > 25 mA) |
| Quantity | 100% Original and Genuine |

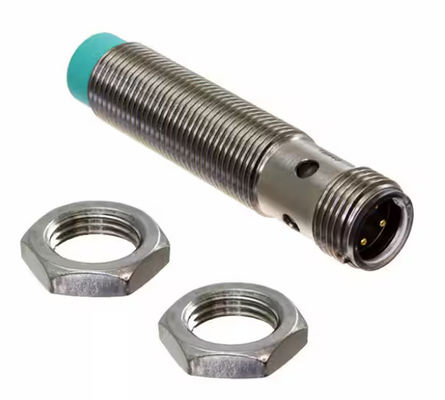

The PEPPERL+FUCHS NBN4-12GM40-Z0 is a rugged inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation applications. Featuring an M12x1 threaded stainless steel housing, this sensor provides reliable operation in harsh environments with resistance to dust, moisture, and mechanical stress.
- Detection Range: 4 mm (for mild steel targets)
- Output Type: PNP, NC (3-wire, 2 m PVC cable)
- Supply Voltage: 10-30V DC (±10%)
- Current Consumption: ≤15 mA
- Switching Frequency: 1 kHz
- Housing Material: Stainless steel (1.4404/316L)
- Protection Class: IP67 (dust/water resistance)
- Operating Temperature: -25°C to +70°C
- Certifications: CE, cULus, IECEx, ATEX (Ex II 3G Ex nA IIC T6 Gc)
The NBN4-12GM40-Z0 is widely deployed in automotive assembly lines for detecting piston positions, robotic arm movements, and conveyor belt part presence. In packaging machinery, it ensures accurate alignment of containers and verifies product positioning. The sensor's ATEX/IECEx certification allows safe use in explosive atmospheres, such as chemical plants and oil refineries.
| Category | Parameter | Details |
|---|---|---|
| General Specifications | Product Type | Inductive Proximity Sensor |
| Model Number | NBN4-12GM40-Z0 | |
| Detection Principle | Inductive (Metallic Target Detection) | |
| Sensing Distance | 12 mm (Nominal) | |
| Housing Material | Nickel-plated Brass | |
| Protection Rating | IP67 (Dust/Water Resistant) | |
| Connection Type | Fixed Cable (2 m PVC) with Pre-wired Leads | |
| Electrical Specifications | Operating Voltage | 10-30 V DC |
| Output Type | PNP, Normally Open (NO) | |
| Output Configuration | 3-Wire, Switching Output | |
| Current Rating | ≤ 200 mA | |
| Switching Frequency | 1 kHz | |
| Voltage Drop | ≤ 2 V |
