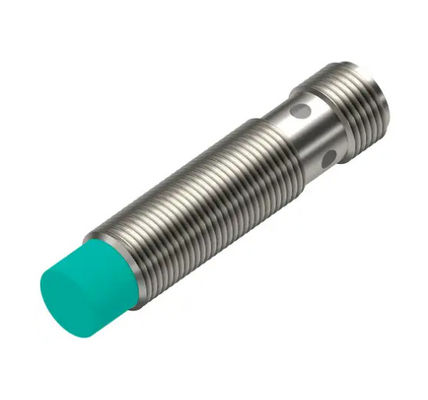

NBN4-12GM40-E2-V1 Non-Contact 4mm Inductive Sensor - IP67 Industrial
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
ip67 NBN4-12GM40-E2-V1
,ip67 electronic circuit breaker
,industrial NBN4-12GM40-E2-V1
| Attribute | Value |
|---|---|
| Mounting Type | Flush |
| Output Type | NPN |
| Connection Side | field side |
| Housing Material | Stainless Steel |
| Connection | Power Rail or terminals 9+, 10- |
| Operating Voltage | 10-30 VDC |
| Certifications | CE, UL, CSA |
| Application | Industrial Automation |
The PEPPERL+FUCHS NBN4-12GM40-E2-V1 is a robust inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation systems. Featuring an M12x1 stainless steel housing (IP67-rated), it excels in harsh environments with resistance to dust, moisture, vibrations, and temperature extremes (-25°C to +70°C). The sensor detects ferrous and non-ferrous metals within a 4 mm range and provides a PNP normally open (NO) output for seamless integration with PLCs, controllers, and automation networks. Its compact design and short-circuit protection ensure reliable performance in high-speed production lines, automotive manufacturing, and heavy machinery applications.
- Detection Range: 4 mm (for mild steel targets)
- Output Type: PNP, NO (3-wire, 2 m PVC cable)
- Supply Voltage: 10-30V DC (±10%)
- Current Consumption: ≤15 mA
- Switching Frequency: 1 kHz
- Housing Material: Stainless steel (1.4404/316L)
- Protection Class: IP67 (dust/water resistance)
- Operating Temperature: -25°C to +70°C
- Certifications: CE, cULus, IECEx, ATEX (Ex II 3G Ex nA IIC T6 Gc)
The NBN4-12GM40-E2-V1 is widely used in automotive assembly lines for detecting piston positions, robotic arm movements, and conveyor belt part presence. In packaging machinery, it ensures precise alignment of containers and verifies fill levels. Its ATEX/IECEx certification allows deployment in explosive atmospheres, such as chemical plants and oil refineries, for monitoring valves, pumps, and hazardous-area equipment. Additional applications include position verification in CNC machines, material handling systems, and automated storage solutions. The sensor's rugged design also suits food processing and pharmaceutical industries requiring frequent washdowns.
- Durability: Stainless steel housing resists corrosion, impact, and chemical exposure
- High Immunity: Stable operation in electromagnetic interference (EMI)-rich environments
- Safety Compliance: ATEX/IECEx certification ensures safe use in Zone 2/22 hazardous areas
- Easy Integration: PNP output compatibility with most industrial control systems
- Low Maintenance: Contactless detection eliminates mechanical wear and extends service life
| Category | Parameter | Details |
|---|---|---|
| General Specifications | Product Type | Inductive Proximity Sensor |
| Model Number | NBN4-12GM40-E2-V1 | |
| Detection Principle | Inductive (Metallic Target Detection) | |
| Sensing Distance | 12 mm (Nominal) | |
| Housing Material | Nickel-plated Brass | |
| Protection Rating | IP67 (Dust/Water Resistant) | |
| Connection Type | M12 × 1 Connector, 4-Pin (V1 Variant) | |
| Electrical Specifications | Operating Voltage | 10-30 V DC |
| Output Type | PNP, Normally Open (NO) | |
| Output Configuration | 3-Wire, Switching Output | |
| Current Rating | ≤ 200 mA | |
| Switching Frequency | 1 kHz | |
| Voltage Drop | ≤ 2 V | |
| Mechanical Specifications | Housing Diameter | M18 × 1 |
| Length | 40 mm (Approx.) | |
| Operating Position | Axial (Front Sensing) | |
| Cable/Connector | M12 Connector (Pre-wired Cable Optional) | |
| Environmental Conditions | Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) | |
| Shock Resistance | 30 g (IEC 60068-2-27) | |
| Vibration Resistance | 10-55 Hz, 1.5 mm Amplitude (IEC 60068-2-6) | |
| Certifications & Compliance | Standards | CE, cULus, RoHS, REACH |
| EMC Compatibility | EN 60947-5-2 | |
| Special Features | LED Status Indicator | Red LED for Operational Feedback |
| Short-Circuit Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| EMI/RFI Immunity | High Immunity to Electromagnetic Interference | |
| Target Material Compatibility | Detects Ferrous Metals (e.g., Steel, Iron) |
