NBB2-12GM50-E2 Non-Contact 2mm Inductive Sensor - IP67 Brass Industrial
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
ip67 NBB2-12GM50-E2
,ip67 electronic circuit breaker
,industrial NBB2-12GM50-E2

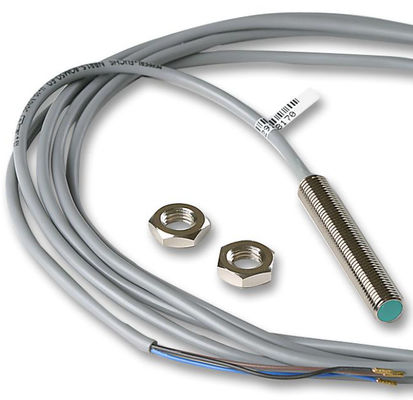

The PEPPERL+FUCHS NBB2-12GM50-E2 is a compact, high-precision inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation environments. Featuring an M12x1 threaded stainless steel housing (IP67-rated), this sensor is built to withstand harsh conditions, including dust, moisture, vibrations, and temperature extremes (-25°C to +70°C). It detects ferrous metals within a 2 mm range and provides an NPN normally open (NO) output, ensuring seamless integration with PLCs and control systems.
| Attribute | Value |
|---|---|
| Transducer Frequency | approx. 65 kHz |
| Input Current | 20 mA |
| Switching Function | Normally open (NO) |
| Power Dissipation | 1.8 W |
| Signal Type | Analog input |
| Protection Rating | IP20 |
| Quantity | 100% Original and Genuine |
| Installation | non-flush |
- Detection Range: 2 mm (for mild steel targets)
- Output Type: NPN, NO (3-wire, 2 m PVC cable)
- Supply Voltage: 10-30V DC (±10%)
- Current Consumption: ≤15 mA
- Switching Frequency: 1 kHz
- Housing Material: Stainless steel (1.4404/316L)
- Protection Class: IP67 (dust/water resistance)
- Operating Temperature: -25°C to +70°C
- Certifications: CE, cULus, IECEx, ATEX (Ex II 3G Ex nA IIC T6 Gc)
| General Specifications | ||
|---|---|---|
| Product Type | Inductive Proximity Sensor | |
| Model Number | NBB2-12GM50-E2 | |
| Detection Principle | Inductive (Ferrous Metal Detection) | |
| Sensing Distance | 12 mm (Nominal) | |
| Housing Material | Nickel-Plated Brass | |
| Protection Rating | IP67 (Dust/Water Resistant) | |
| Connection Type | M12 × 1 Connector, 4-Pin (E2 Variant) | |
| Mounting Style | Non-Flush (Shielded) | |
| Electrical Specifications | ||
| Operating Voltage | 10-30 V DC | |
| Output Type | PNP, Normally Open (NO) | |
| Output Configuration | 3-Wire, Switching Output | |
| Current Rating | ≤ 200 mA | |
| Switching Frequency | 1 kHz | |
| Voltage Drop | ≤ 2 V | |
| Mechanical Specifications | ||
| Housing Diameter | M18 × 1 | |
| Length | 50 mm (Approx.) | |
| Operating Position | Axial (Front Sensing) | |
| Cable/Connector | 2 m PVC Cable (Standard) or M12 Connector (E2 Variant) | |
| Environmental Conditions | ||
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) | |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) | |
| Shock Resistance | 30 g (IEC 60068-2-27) | |
| Vibration Resistance | 10-55 Hz, 1.5 mm Amplitude (IEC 60068-2-6) | |
| Certifications & Compliance | ||
| Standards | CE, cULus, RoHS, REACH | |
| EMC Compatibility | EN 60947-5-2 | |
| Special Features | ||
| LED Status Indicator | Red LED for Operational Feedback | |
| Short-Circuit Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| EMI/RFI Immunity | High Immunity to Electromagnetic Interference | |
| Target Material Compatibility | Detects Ferrous Metals (e.g., Steel, Iron) | |
The NBB2-12GM50-E2 is widely used in automotive assembly lines to detect small components like screws, bolts, or piston positions. In packaging machinery, it ensures precise alignment of metallic lids or caps on containers. Its ATEX/IECEx certification allows deployment in hazardous environments such as chemical plants and oil refineries for monitoring valve positions or pump statuses.
- Compact and Durable: Stainless steel housing resists corrosion, impacts, and chemical exposure
- High Immunity: Stable operation in environments with electromagnetic interference (EMI)
- Safety Compliance: ATEX/IECEx certification for use in explosive atmospheres (Zone 2/22)
- Fast Response: ≤1 ms response time for high-speed automation processes
- Low Maintenance: Contactless detection eliminates mechanical wear and reduces downtime
